Notes: with 35 Gallon Tank;with 1 Tube Ports;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 31 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 221.0
Resistance Ohms Full: 19.0
Strainer Included: Yes
System Pressure: 49 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604061732
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

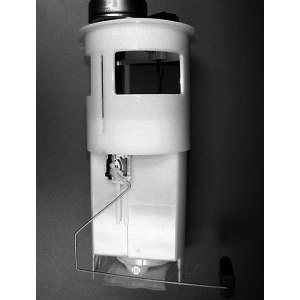

Part Description: 2001 Dodge Ram 1500 Fuel Pump Module Assembly
Notes: with 34 Gallon Tank;with 26 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 31 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 223.0
Resistance Ohms Full: 20.0
Strainer Included: Yes
System Pressure: 49 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604061749
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

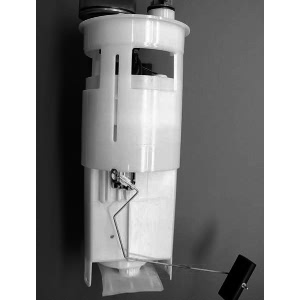

Part Description: 2001 Dodge Ram 1500 Fuel Pump Module Assembly
Notes: with 26 Gallon Tank;with 34 Gallon Tank;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
Gasket or Seal Included: Yes
Inlet Size: 1/2
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 56.2
Maximum Pump Pressure (PSI): 51.3
Minimum Free Flow (GPH): 46.2
Minimum Pump Pressure (PSI): 47.3
Outlet Size: 0.375
Outlet Type: Quick Connect
Pump Type: Rollervane
Regulator Included: Yes
UPC: 072845131492

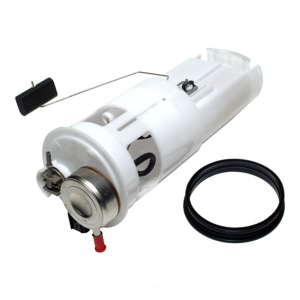

Part Description: 2001 Dodge Ram 1500 Fuel Pump Module Assembly
