American Motors Piston

< Back to View All
Crankshafts, Pistons, Rings & Connecting Rods
  • Department
  • Brands
  • Prices

6 Products found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by

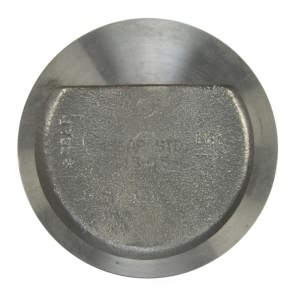

  • Sealed Power Piston for American Motors - 362NP

    Sealed Power® Piston for American Motors

    PartNumber: 362NP
    Product Specifications
    • Bore: 103.6000 mm
    • Compression Distance: 1.581"
    • Head Illustration: 29
    • Material: Cast
    • Minimum Clearance: 0.001 @ 2.440 from top of head
    • Pin Diameter: 23.647 mm
    • Pin Offset: 1.524 mm
    • Pin Type: P
    • Ring 1 Qty: 2
    • Ring 1 Width: 5/64"
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/16"
    • Size: Standard
    • UPC: 614046342088
    • Weight W Pin Gram: 00765.+/- 00.
    • Part Description: American Motors Piston
    More Info
    $36.10
  • Sealed Power Piston for American Motors - 456AP

    Sealed Power® Piston for American Motors

    PartNumber: 456AP
    Product Specifications
    • Size: Standard
    • UPC: 019826523013
    • Part Description: American Motors Piston
    More Info
    $32.10
  • Sealed Power Piston for American Motors - 470AP

    Sealed Power® Piston for American Motors

    PartNumber: 470AP
    Product Specifications
    • Bore: 95.2500 mm
    • Compression Distance: 1.633"
    • Head Illustration: 12
    • Material: Cast
    • Minimum Clearance: 0.001 @ 2.640 from top of head
    • Pin Diameter: 23.655 mm
    • Pin Offset: 0.06"
    • Ring 1 Qty: 2
    • Ring 1 Width: 5/64"
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/16"
    • Size: Standard
    • UPC: 614046896772
    • Part Description: American Motors Piston
    More Info
    $30.20
  • Sealed Power Duroshield Cast Piston for American Motors - H547CP

    Sealed Power® Duroshield Cast Piston for American Motors

    PartNumber: H547CP
    Product Specifications
    • Bore: 101.6000
    • Compression Distance: 1.560
    • Head Illustration: 28
    • Head Type: Recessed Head .165 deep x 3.120 dia. w/shallow oil ring groove for low tension oil ring - 9.0:1 C.R.; DUROSHIELD~ skirt coated piston
    • Minimum Clearance: See Piston Fitting Information on carton label
    • Part Material: Hypereutectic
    • Pin Diameter: 23.559
    • Pin Offset: 0.04"
    • Ring 1 Qty: 1
    • Ring 1 Width: 1/16
    • Ring 2 Qty: 1
    • Ring 2 Width: 5/64
    • Ring 3 Qty: 1
    • Ring 3 Width: 3/16
    • UPC: 614046227613
    • Part Description: American Motors Duroshield Cast Piston
    More Info
    $27.72
  • Sealed Power Piston for American Motors - 525AP

    Sealed Power® Piston for American Motors

    PartNumber: 525AP
    Product Specifications
    • Bore: 98.4200 mm
    • Compression Distance: 1.580"
    • Dome Volume CC: - 014.0
    • Head Illustration: 12
    • Material: Cast
    • Minimum Clearance: 0.001 @ 2.420 from top of head
    • Pin Diameter: 0.931"
    • Pin Offset: 1.524 mm
    • Ring 1 Qty: 2
    • Ring 1 Width: 5/64"
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/16"
    • Size: Standard
    • UPC: 614046935242
    • Part Description: American Motors Piston
    More Info
    $32.68
  • Sealed Power Piston for American Motors - W470AP

    Sealed Power® Piston for American Motors

    PartNumber: W470AP
    Product Specifications
    • Bore: 95.2500 mm
    • Compression Distance: 1.633"
    • Head Illustration: 12
    • Material: Cast
    • Minimum Clearance: 0.001 @ 2.640 from top of head
    • Pin Diameter: 23.655 mm
    • Pin Offset: 0.06"
    • Ring 1 Qty: 2
    • Ring 1 Width: 5/64"
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/16"
    • Size: Standard
    • UPC: 614046895348
    • Part Description: American Motors Piston
    More Info
    $31.32

About American Motors Piston

AMC acquired the iconic Jeep light truck and SUV brands in the 1970s to remain competitive. It was ranked the largest joint venture company in its history. During the development of AMC, many popular piston parts have been built. The AMC piston parts receive cooling and you can achieve that with the injectors providing oil. The piston can accomplish gas sealing with the use of piston rings.
AMC is famous for lots of high-quality parts. However, the old AMC piston parts might lead to poor functions and an unpleasant driving experience after years of usage. The pistons help to provide each cylinder with combustion which in return will allow for motion of the vehicle. They help to transfer the expanding gas in the cylinder to turn the crankshaft using mechanical force. The removal process of the pistons is as follows: First remove the set screws which will allow the bottom half of the bearing to be removed, next you can gently push the piston assembly out through the top of the block with the bearing removed, and be gentle as you do not want the connecting rod to scratch or damage the cylinder. From the body parts to the performance parts, a long catalog of advanced products is given here. We are here for you 24/7.
