Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | W470AP |

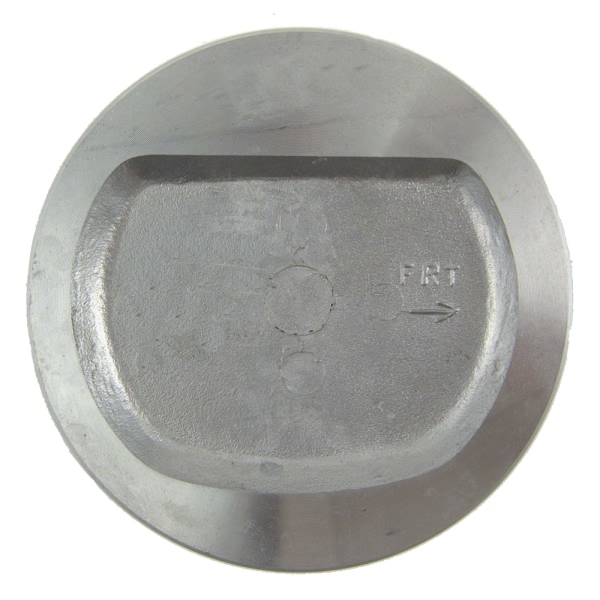

| Part Description | Piston |
| Bore | 95.2500 mm |
| Compression Distance | 1.633" |
| Head Illustration | 12 |
| Material | Cast |
| Minimum Clearance | 0.001 @ 2.640 from top of head |
| Pin Diameter | 23.655 mm |
| Pin Offset | 0.06" |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64" |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16" |
| Size | Standard |
| UPC | 614046895348 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1979-1980 American Motors AMX | All Trims | 6 Cyl 4.2L |
| 1979-1983 American Motors Concord | All Trims | 6 Cyl 4.2L |
| 1980-1988 American Motors Eagle | All Trims | 6 Cyl 4.2L |
| 1979-1980 American Motors Pacer | All Trims | 6 Cyl 4.2L |
| 1979-1983 American Motors Spirit | All Trims | 6 Cyl 4.2L |
| 1979-1983 Jeep CJ5 | All Trims | 6 Cyl 4.2L |
| 1979-1986 Jeep CJ7 | All Trims | 6 Cyl 4.2L |
| 1979-1983 Jeep Cherokee | All Trims | 6 Cyl 4.2L |
| 1979-1983 Jeep DJ5 | All Trims | 6 Cyl 4.2L |
| 1984-1986 Jeep Grand Wagoneer | All Trims | 6 Cyl 4.2L |
