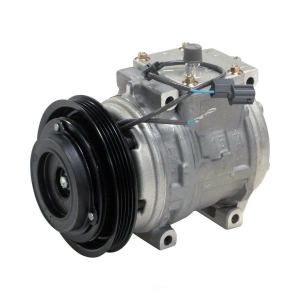

Honda Civic del Sol A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Condition
- Brands
- Prices
$510.80 MSRP:$727.65You Save: $216.85 (30%)Product Specifications- Item Dimensions: 11.2 x 7.8 x 7.1 inches
- Item Weight: 10.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: 38810-P06-A01
- Part Description: Honda Civic del Sol Compressor (Sanden)
$192.23Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TRS090
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.953125
- Mount Distance MM: 49.530
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 101.600
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.000
- Pulley Outside Diameter: 4.000
- Pulley Ridge Diameter: 4.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Pin
- UPC: 096361775602
- Part Description: Honda Civic del Sol Remanufactured A C Compressor With Clutch
$868.36 MSRP:$1237.00You Save: $368.64 (30%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Dimensions: 10.6 x 10.5 x 7.8 inches
- Item Weight: 4.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 38810-PR7-A04, 38810-PR7-A03
- Part Description: Honda Civic del Sol Compressor (Denso)
$173.87Product Specifications- Clutch Maximum Diameter: 130.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 38810P28A02, 38800P30A013
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511166707
- Part Description: Honda Civic del Sol A/C Compressor with Clutch
$187.45Product Specifications- Belt Width IN: 0.625
- Belt Width MM: 15.875
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.953125
- Mount Distance MM: 49.530
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Pin
- UPC: 096361673663
- Part Description: Honda Civic del Sol Remanufactured A C Compressor With Clutch
- $431.25 MSRP:
$614.33You Save: $183.08 (30%)Product Specifications- Item Dimensions: 11.0 x 8.1 x 7.7 inches
- Item Weight: 9.90 Pounds
- Fitment Type: Direct Replacement
- Part Description: Honda Civic del Sol Compressor (Sanden)
$179.64Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: NL1302AD4
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.000
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 133.350
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 5.250
- Pulley Outside Diameter: 5.250
- Pulley Ridge Diameter: 5.250
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Spade
- UPC: 096361574908
- Part Description: Honda Civic del Sol Remanufactured A C Compressor With Clutch
$201.06Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 3.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TRF090
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 95.250
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 3.750
- Pulley Outside Diameter: 3.750
- Pulley Ridge Diameter: 3.750
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Temp Switch
- Terminal Type: Pin
- UPC: 096361575721
- Part Description: Honda Civic del Sol Remanufactured A C Compressor With Clutch
$229.63Product Specifications- Belt Width IN: 0.625
- Belt Width MM: 15.875
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.953125
- Mount Distance MM: 49.530
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Pin
- UPC: 096361683662
- Part Description: Honda Civic del Sol A C Compressor With Clutch
$211.70Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 3.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TRF090
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mount Distance MM: 50.800
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 95.250
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 3.750
- Pulley Outside Diameter: 3.750
- Pulley Ridge Diameter: 3.750
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Temp Switch
- Terminal Type: Pin
- UPC: 096361585720
- Part Description: Honda Civic del Sol A C Compressor With Clutch
$204.06Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TRS090
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.953125
- Mount Distance MM: 49.530
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 101.600
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.000
- Pulley Outside Diameter: 4.000
- Pulley Ridge Diameter: 4.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Pin
- UPC: 096361785601
- Part Description: Honda Civic del Sol A C Compressor With Clutch
$142.73Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.875
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.703125
- Mount Distance MM: 43.180
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 123.825
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.875
- Pulley Outside Diameter: 4.875
- Pulley Ridge Diameter: 4.875
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Pin
- UPC: 096361973350
- Part Description: Honda Civic del Sol Remanufactured A C Compressor With Clutch
Product Specifications- Clutch Maximum Diameter: 106.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 38810P06A06, 38810P2FA01, 38810P3F016, 38810P76016, 38810P76006, 38810P3F006, 38810P06A04, 38810P06A05
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511174276
- Part Description: Honda Civic del Sol New Compressor W/ Clutch
Product Specifications- Clutch Included: Yes
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG
- Connector Gender: Female
- Mounting Type: Bolt-tangent
- OE Type/Exact Fit: OE Type/ Exact Fit
- Oil in Compressor: Yes
- Package Contents: A/C Compressor, O-rings/Sealing Washers, Instruction Sheet
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 4
- Refrigerant Type: R134A
- Switch Included: No
- Switch Service Port: No
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604203606
- Part Description: Honda Civic del Sol A C Compressor With Clutch
Product Specifications- UPC: 671607195521
- Part Description: Honda Civic del Sol A/C Compressor
- Product Specifications
- Item Dimensions: 12.2 x 9.2 x 8.4 inches
- Item Weight: 4.00 Pounds
- Replaces: 38810-P06-A04, 38810-P06-A05
- Part Description: Honda Civic del Sol Compressor
