Transfer Case Output Shaft Bearing
Select vehicle to guarantee fit
Year
Make
Model
< Back to View All
Transfer Cases
- Department
- Location
- Brands
- Prices
$45.49Product Specifications- Inner Diameter: 1.7717"
- Outer Diameter: 2.9528"
- UPC: 085311062299
- Width: 0.6299"
- Part Description: Front Transfer Case Output Shaft Bearing
$43.37Product Specifications- Inner Diameter: 1.5748"
- Outer Diameter: 3.5433"
- UPC: 085311063456
- Width: 0.9055"
- Part Description: Rear Rearward Transfer Case Output Shaft Bearing
$30.48Product Specifications- Inner Diameter: 1.7717"
- Outer Diameter: 3.3465"
- UPC: 085311062848
- Width: 0.7480"
- Part Description: Rear Transfer Case Output Shaft Bearing
SKF® Transfer Case Output Shaft Bearing
PartNumber: 6006-J$30.36Product Specifications- Inner Diameter: 1.1811"
- Outer Diameter: 2.1654"
- UPC: 826732285436
- Width: 0.5118"
- Part Description: Transfer Case Output Shaft Bearing
SKF® Output Shaft Bearing
PartNumber: 6007-J$28.48Product Specifications- Inner Diameter: 1.3780"
- Outer Diameter: 2.4409"
- UPC: 085311062268
- Width: 0.5512"
- Part Description: Output Shaft Bearing
$26.05Product Specifications- Inner Diameter: 1.1811"
- Outer Diameter: 2.8346"
- UPC: 085311063340
- Width: 0.7480"
- Part Description: Rear Rearward Transfer Case Output Shaft Bearing
$21.59Product Specifications- Inner Diameter: 1.3780"
- Outer Diameter: 2.8346"
- UPC: 085311062787
- Width: 0.6693"
- Part Description: Rear Transfer Case Output Shaft Bearing
$19.42Product Specifications- Inner Diameter: 1.1811"
- Outer Diameter: 2.4409"
- UPC: 085311062671
- Width: 0.6299"
- Part Description: Rear Transfer Case Output Shaft Bearing
SKF® Transfer Case Output Shaft Bearing
PartNumber: B2816$14.08Product Specifications- Inner Diameter: 1.750"
- Length: 1.0"
- Outer Diameter: 2.1250"
- UPC: 085311084413
- Width: 1.0"
- Part Description: Transfer Case Output Shaft Bearing
$8.18Product Specifications- Inner Diameter: 1.3750"
- Length: 0.50"
- Outer Diameter: 1.6250"
- UPC: 085311172189
- Width: 0.50"
- Part Description: Front Transfer Case Output Shaft Pilot Bearing
$38.37Product Specifications- Type: A-1
- Part Description: Front Forward Transfer Case Output Shaft Bearing
$49.05Product Specifications- Bore (Inch): 1.3780
- Bore (mm): 35.00
- Cone Length (Inch): 1.2205
- Cone Length (mm): 31.00
- Cone Radius (Inch): 0.0620
- Cone Radius (mm): 1.5750
- Cup Length (Inch): 0.9843
- Cup Length (mm): 25.00
- Cup Radius (Inch): 0.0620
- Cup Radius (mm): 1.5750
- Design: ISO Metric
- Outside Diameter (Inch): 3.1496
- Outside Diameter (mm): 80.00
- Series: 32300
- Standout (Inch): 0.3051
- Standout (mm): 7.7500
- Type: TS
- UPC: 724956092932
- Width (Inch): 1.2894
- Width (mm): 32.7500
- Part Description: Outer Transfer Case Output Shaft Bearing
Product Specifications- Type: A-1
- Part Description: Transfer Case Output Shaft Ball Bearing
Product Specifications- Inner Diameter: 1.50"
- Length: 1.0"
- OE Part Number: 1458J2416, E0TZ7127A, 4269189, 9759J2416
- Outer Diameter: 1.8750"
- UPC: 085311064309
- Width: 1.0"
- Part Description: Front Rearward Transfer Case Output Shaft Bearing
Product Specifications- Type: A-1
- Part Description: Transfer Case Output Shaft Ball Bearing
Product Specifications- Type: A-2
- Part Description: Transfer Case Output Shaft Ball Bearing
Product Specifications- Type: TS
- Part Description: Rear Transfer Case Output Shaft Bearing
Product Specifications- Type: TS
- Part Description: Transfer Case Output Shaft Taper Bearing Assembly
Product Specifications- Type: B
- UPC: 724956001606

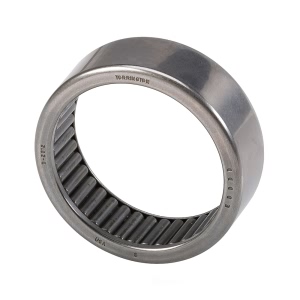

- Part Description: Transfer Case Output Shaft Pilot Needle Bearing
Product Specifications- Bore (Inch): 2.5000
- Bore (mm): 63.5000
- Housing Diameter Max (Inch): 2.6255
- Housing Diameter Max (mm): 66.6877
- Housing Diameter Min (Inch): 2.6245
- Housing Diameter Min (mm): 66.6623
- Outside Diameter (Inch): 2.6250
- Outside Diameter (mm): 66.6750
- Shaft Diameter Max (Inch): 2.2500
- Shaft Diameter Max (mm): 57.1500
- Shaft Diameter Min (Inch): 2.2494
- Shaft Diameter Min (mm): 57.1348
- Type: B
- Width (Inch): 1.00
- Width (mm): 25.4000
- Part Description: Transfer Case Output Shaft Pilot Needle Bearing
Product Specifications- Bore (Inch): 1.5748
- Bore (mm): 40.0000
- Housing Diameter Max (Inch): 1.8501
- Housing Diameter Max (mm): 46.9925
- Housing Diameter Min (Inch): 1.8491
- Housing Diameter Min (mm): 46.9671
- Outside Diameter (Inch): 1.8496
- Outside Diameter (mm): 46.9790
- Shaft Diameter Max (Inch): 1.5748
- Shaft Diameter Max (mm): 39.9999
- Shaft Diameter Min (Inch): 1.5742
- Shaft Diameter Min (mm): 39.9847
- Type: B
- Width (Inch): 0.7874
- Width (mm): 20.0000
- Part Description: Transfer Case Output Shaft Pilot Needle Bearing
Product Specifications- Bore (Inch): 1.5000
- Bore (mm): 38.1000
- Housing Diameter Max (Inch): 1.8755
- Housing Diameter Max (mm): 47.6377
- Housing Diameter Min (Inch): 1.8745
- Housing Diameter Min (mm): 47.6123
- Outside Diameter (Inch): 1.8750
- Outside Diameter (mm): 47.6250
- Shaft Diameter Max (Inch): 1.5000
- Shaft Diameter Max (mm): 38.1000
- Shaft Diameter Min (Inch): 1.4995
- Shaft Diameter Min (mm): 38.0873
- Type: JH
- Width (Inch): 1.0000
- Width (mm): 25.4000
- Part Description: Transfer Case Output Shaft Pilot Needle Bearing
Product Specifications- Inner Diameter: 1.5748"
- Outer Diameter: 2.6772"
- UPC: 085311062275
- Width: 0.5906"
- Part Description: Front Outer Transfer Case Output Shaft Bearing
Product Specifications- Type: JH
- Part Description: Transfer Case Output Shaft Pilot Needle Bearing
Product Specifications- Bore (Inch): 1.181
- Bore (mm): 30.000
- Design: Single Row Radial
- Outside Diameter (Inch): 2.165
- Outside Diameter (mm): 55.000
- Series: 100
- Width (Inch): 0.354
- Width (mm): 9.000
- Part Description: Transfer Case Output Shaft Ball Bearing
About Transfer Case Output Shaft Bearing
The transfer case is a component that sends power from the transmission output shaft to either the front or rear drive shaft. The transfer case must remain spinning while staying in place and the bearing helps with both.
Transfer case output shaft bearing importanceThe transfer case is secured to the back of the transmission with a bolt, and the input shaft is secured with the output of the transmission. This component is crucial because it delivers power to the rear or front shaft and with the help of the bearing, the transfer case output shaft can spin while staying in place inside the transfer case to prevent any issues like excessive vibrations. The output shaft bearing must remain in good working order to keep the vehicle running smoothly.
Common problems with a faulty transfer case output shaft bearingA faulty transfer case output shaft bearing can lead to fluid leaking, metal-on-metal contact, or uncontrolled vibrations.
