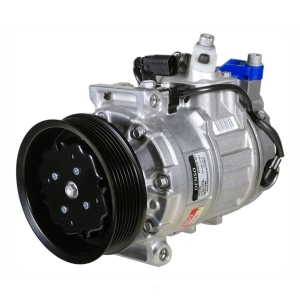

Volkswagen Touareg A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Condition
- Brands
- Prices
$519.66Product Specifications- Clutch Maximum Diameter: 120.0 mm
- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- OE Part Number: 7L6820803H, 7L6820803R, 7L6820803E
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511177994
- Part Description: Volkswagen Touareg A/C Compressor with Clutch
$325.14Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: Direct Drive; Pin
- Coil Clock Position: NR
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU17C
- Discharge Port Type: O-Ring
- ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24659] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: NR
- Pulley Groove Quantity: NR
- Pulley Lip Diameter: Direct Drive; Pin
- Pulley Outside Diameter: Direct Drive; Pin
- Pulley Ridge Diameter: Direct Drive; Pin
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361973923
- Part Description: Volkswagen Touareg Remanufactured A C Compressor With Clutch
$504.70Product Specifications- Clutch Maximum Diameter: 110.0 mm
- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- OE Part Number: 7P0820803E, 7L6820803D, 7L6820803P, 7L6820803G, 7L6820803L, 7L6820803S
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511177680
- Part Description: Volkswagen Touareg A/C Compressor with Clutch
$294.27Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.250
- Coil Clock Position: NR
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.484375
- ECV Harness Connector: Compressor SE05F, Vehicle SE22M
- Mount Distance MM: 37.592
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24670] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 107.950
- Pulley Groove Quantity: 7
- Pulley Lip Diameter: 4.250
- Pulley Outside Diameter: 4.250
- Pulley Ridge Diameter: 4.250
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361617278
- Part Description: Volkswagen Touareg Remanufactured A C Compressor With Clutch
$460.43Product Specifications- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- OE Part Number: 4F0260805AH, 4F0260805L, 4F0260805E, 4E0260805AS, 8K0260805H, 4Z7260805F, 4Z7260805D, 4E0260805Q, 4E0260805AM, 8K0260805B, 4F0260805AD, 8E0260805AE, 4Z7260805E
- Refrigerant Type: R134A
- UPC: 042511206786
- Part Description: Volkswagen Touareg A/C Compressor with Clutch
$281.00Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.3125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU16C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.500
- ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
- Mount Distance MM: 38.100
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24670] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 109.550
- Pulley Groove Quantity: 7
- Pulley Lip Diameter: 4.3125
- Pulley Outside Diameter: 4.3125
- Pulley Ridge Diameter: 4.3125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Lead Wire
- UPC: 096361973794
- Part Description: Volkswagen Touareg Remanufactured A C Compressor With Clutch
$239.12Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10SR17E
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.09375
- Mount Distance MM: 53.340
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 139.700
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.500
- Pulley Outside Diameter: 5.500
- Pulley Ridge Diameter: 5.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361616905
- Part Description: Volkswagen Touareg Remanufactured A C Compressor With Clutch
$466.26Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: Direct Drive
- Coil Clock Position: NR
- Coil Type: Coil Less
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU17C
- Discharge Port Type: O-Ring
- ECV Harness Connector: SE10F, 26984 Female / / SE10M, 26878 Male
- Mounting Hardware: Not Included
- Mounting Type: One on Rear Head
- New or Reman: New
- O-Ring A Number/Desc: [24659] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: NR
- Pulley Diameter MM: w/o Clutch
- Pulley Groove Quantity: NR
- Pulley Lip Diameter: Direct Drive
- Pulley Outside Diameter: Direct Drive
- Pulley Ridge Diameter: Direct Drive
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983922
- Part Description: Volkswagen Touareg A C Compressor With Clutch
$275.94Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.3125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU16C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.234375
- ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
- Mount Distance MM: 31.242
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24659] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 109.550
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.3125
- Pulley Outside Diameter: 4.3125
- Pulley Ridge Diameter: 4.3125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Pin
- UPC: 096361973480
- Part Description: Volkswagen Touareg Remanufactured A C Compressor With Clutch
$347.61Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.28125
- Coil Clock Position: NR
- Coil Type: Coil Less
- Coil Voltage: NR
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.484375
- ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
- Mount Distance MM: 37.592
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24659] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 108.712
- Pulley Groove Quantity: 7
- Pulley Lip Diameter: 4.28125
- Pulley Outside Diameter: 4.28125
- Pulley Ridge Diameter: 4.28125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361622159
- Part Description: Volkswagen Touareg A C Compressor With Clutch
$348.73Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.71875
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.46875
- ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
- Mount Distance MM: 37.000
- Mounting Hardware: Not Included
- Mounting Type: 3 Tangent One on Rear Head
- New or Reman: New
- O-Ring A Number/Desc: [24635] / Green Round O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 24659
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: 24683
- O-Ring C Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 119.888
- Pulley Groove Quantity: 7
- Pulley Lip Diameter: 4.71875
- Pulley Outside Diameter: 4.71875
- Pulley Ridge Diameter: 4.71875
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983793
- Part Description: Volkswagen Touareg A C Compressor With Clutch
$319.29Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.3125
- Coil Clock Position: NR
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 7SEU16C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.234375
- ECV Harness Connector: Compressor SE05F, Vehicle SE22M
- Mount Distance MM: 31.242
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24659] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24635] / Green Round O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 109.550
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.3125
- Pulley Outside Diameter: 4.3125
- Pulley Ridge Diameter: 4.3125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Pin
- UPC: 096361983489
- Part Description: Volkswagen Touareg A C Compressor With Clutch
$315.15Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10SR17E
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.09375
- Mount Distance MM: 53.340
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 139.700
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.500
- Pulley Outside Diameter: 5.500
- Pulley Ridge Diameter: 5.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Switch
- Terminal Type: Pin
- UPC: 096361616981
- Part Description: Volkswagen Touareg A C Compressor With Clutch
Product Specifications- Clutch Maximum Diameter: 120.0
- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- New or Remanufactured: New
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511178007
- Part Description: Volkswagen Touareg A/C Compressor with Clutch
Product Specifications- Clutch Maximum Diameter: 110.0
- Compressor Mount Hole Quantity: 3
- Mounting Type: Bolt Tangent
- New or Remanufactured: New
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511177444
- Part Description: Volkswagen Touareg A/C Compressor with Clutch
