1990 Mazda RX-7 A/C & Heating
My Vehicle Change Vehicle
1990 Mazda RX-7
Product Specifications- Notes: Cut to Length, 15"; Protective sleeve Reqd;Cut to Length, 14"; Protective sleeve Reqd;Cut to Length, 15"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.3125"
- OE Part Number: 49692
- UPC: 072053133226
- Weight Per Length: 7.25 lbs./Carton
- Working Pressure (psi): 60
- Part Description: 1990 Mazda RX-7 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L

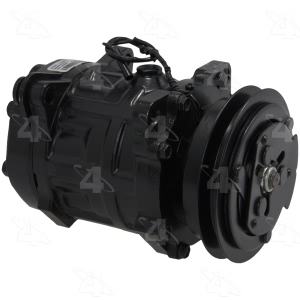

Product Specifications- Notes: w/ SD708 Compressor; Reman w/ Clutch; Factory Air
- Belt Width IN: 0.500
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Top-Vert-Pad
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: UK
- Compressor Type: SD708
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.250
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Butt
- UPC: 096361575745
- Part Description: 1990 Mazda RX-7 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L
Product Specifications- Connector Gender: Female / Female / Male
- Connector Shape: Other design
- Meets / Exceeds OEM: Yes
- Number of Terminals: 4 / 2 / 1
- Speed: Fixed # 3
- Terminal Type: Spade / Wire Lead
- UPC: 096361201767
- Part Description: 1990 Mazda RX-7 Hvac Blower Motor Resistor
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4"
- Arm Length 2 (in): 12"
- Centerline Length (in): 16"
- Inside Diameter 1 (in): 0.625"
- UPC: 072053062014
- Part Description: 1990 Mazda RX-7 90 Degree Hvac Heater Molded Hose
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L
Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.000
- Motor Length: 3.875
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.268
- Shaft Length: 2.0625
- Shaft Shape: Round
- Shaft Type: Round
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361354937
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1990 Mazda RX-7 Hvac Blower Motor Without Wheel
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Centerline Length (in): 8.8"
- Inside Diameter 1 (in): 0.31"
- Number of Branches: 0
- UPC: 072053191394
- Part Description: 1990 Mazda RX-7 Hvac Heater Molded Hose
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L

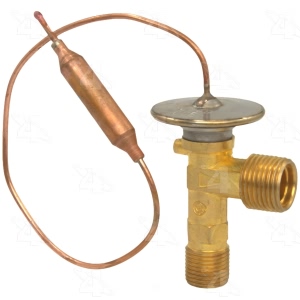

Product Specifications- Notes: Dealer Air
- Color: Brass
- Refrigerant Type: R134A
- UPC: 096361388697
- Part Description: 1990 Mazda RX-7 A C Expansion Valve
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Connector Shape: Rectangle
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372573
- Part Description: 1990 Mazda RX-7 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Factory Air
- Color: Brass
- Refrigerant Type: R134A
- UPC: 096361386167
- Part Description: 1990 Mazda RX-7 A C Expansion Valve
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1990 Mazda RX-7 A C System Valve Core And Cap Kit
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines

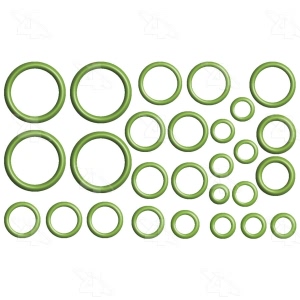

Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267534
- Part Description: 1990 Mazda RX-7 A C System O Ring And Gasket Kit
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Four Seasons® A C Compressor Cut Out Switch Harness Connector for 1990 Mazda RX-7
PartNumber: 37219$6.73Product Specifications- Notes: AC System Mounted Low Pressure Cut-Out Switch Connector; Harness Connector-Repair
- Connector Pin Qty: 2
- Connector Shape: Round
- Connector Type: Pin
- Gender: Female
- Printed Foot Note: Pressure Switch Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372191
- Part Description: 1990 Mazda RX-7 A C Compressor Cut Out Switch Harness Connector
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Low Pressure AC System Mounted
- Color: Black; Purple
- Comp Open/Closed: Open
- Connector Gender: Male
- Connector Shape: Open
- Fitting Thread Size: 3/8 in. x 24
- Harness Connector: [37219] / Harness Connector
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Material: Steel
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System mount; System Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 30
- Operate Psi Low On: 31
- Style: Pressure
- UPC: 096361357587
- Weather Pack: No; Yes
- Part Description: 1990 Mazda RX-7 Hvac Pressure Switch
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 5/16
- End 2 Inside Diameter: 5/16
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 5 1/4
- UPC: 038244597543
- Part Description: 1990 Mazda RX-7 Small Id Hvac Heater Hose
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
Product Specifications- Body Diameter: 2.500
- Body Length: 8.000
- Bracket: w/o Bracket
- Connector B Type: Male Insert O-Ring
- Connector Type: Male Insert O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 63.500
- Fuse Plug: Yes
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Male Insert O-Ring
- Length MM: 203.200
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 3
- Outlet Fitting Type: Male Insert O-Ring
- Outlet IN: 0.375
- Overall Depth IN: 8.000
- Overall Depth MM: 203.200
- P. R. V.: No
- Service Port: w/o Service Port
- Sight Glass: Yes
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- Switch Port Dia. IN: 0.250
- Switch Port Dia.MM: 6.350
- UPC: 096361334038
- Part Description: 1990 Mazda RX-7 A C Receiver Drier
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines

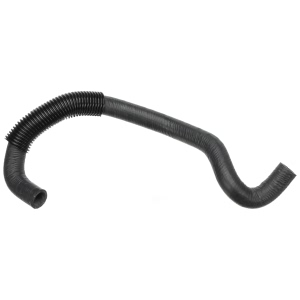

Product Specifications- Centerline Length: 20.9; 531
- End 1 Inside Diameter: .62; 16
- End 2 Inside Diameter: .62; 16
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- UPC: 072053321135
- Part Description: 1990 Mazda RX-7 Hvac Heater Molded Hose
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L
Product Specifications- Notes: w/ SD708 Compressor; Reman w/ Clutch; Dealer Air
- Belt Width IN: 0.500
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Rear-Vert-Pad
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: UW
- Compressor Type: SD708
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.453125
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24622] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Butt
- UPC: 096361575844
- Part Description: 1990 Mazda RX-7 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L
Product Specifications- UPC: 671607161304
- Part Description: 1990 Mazda RX-7 A/C Accumulator
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L
Product Specifications- Notes: w/Sanden SD-708 AC Compressor
- Part Description: 1990 Mazda RX-7 A/C Compressor Clutch Ball Bearing
Vehicle Fitment- 1990 Mazda RX-7 | All Trims | All Engines
