Notes: with California Emission System;RPO Code NA1, NF4 or NF2;Except Auxiliary Fuel Fitting;RPO Code NB6 or NC1;with Federal Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 131.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604083871
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC

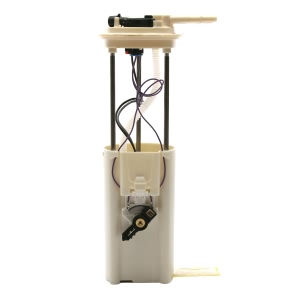

Part Description: 2002 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2002 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L
Notes: w/GVW under 8500lb; w/o Fitting for Take Off Fuel Line (RPO Code: 7T6); Includes Wiring Harness, Terminals & Tank Seal; w/2 Electrical Connectors
Gasket Included: Y
Hazardous Material: No
Inlet Count: 1
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Free Flow Rate (gph): 65
Maximum Pressure Rate (psi): 100
Minimum Free Flow Rate (gph): 55
Minimum Pressure Rate (psi): 80
Outlet Count: 1
Outlet Size: 3/8"
Outlet Type: Quick Connect, Return Line
Package Contents: Pump & Kit
Package Quantity: 1
UPC: 080044516323
Warranty: Lifetime Limited Warranty
Part Description: 2002 Chevrolet Express 1500 In-Tank Fuel Pump Module Assembly
More Info
Vehicle Fitment
2002 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L
Notes: RPO Code EVA;Module has 2 Electrical Connector(s);with Evaporative Emission;without Fitting for Take-Off Fuel Line;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060360
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC
Part Description: 2002 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2002 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Connector Type: Plug In
Item Grade: Standard Replacement
Jacket Material: Plastic
Length: 16.5''
Terminal Gender: Female
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604166949
Part Description: 2002 Chevrolet Express 1500 Fuel Pump Wiring Harness
More Info
Vehicle Fitment
2002 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Item Grade: Standard Replacement
Micron Rating: 31
Strainer Material: Saran
UPC: 689604228067
Part Description: 2002 Chevrolet Express 1500 Fuel Pump Strainer
More Info
Vehicle Fitment
2002 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.0L
2002 Chevrolet Express 1500 | All Trims | 8 Cyl 5.7L
