2002 Volkswagen EuroVan A/C & Heating
My Vehicle Change Vehicle
2002 Volkswagen EuroVan
Product Specifications- Notes: w/ SD7V16 Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.689
- Coil Clock Position: 2 Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: SD7V16
- Distance From Clutch To Mounting Flange: 1.3
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: 24661
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 24681
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 7
- Pulley Lip Diameter: 4.689
- Pulley Outside Diameter: 4.689
- Pulley Ridge Diameter: 4.689
- Refrigerant Type: R134a
- Terminal Type: Pin
- UPC: 096361033108

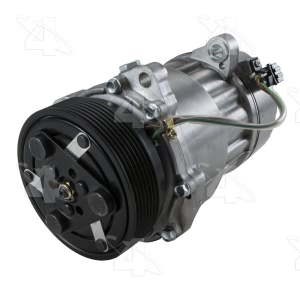

- Part Description: 2002 Volkswagen EuroVan A C Compressor With Clutch
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Description: w/AC; Incl Impeller
- Height [mm]: 162
- Length [mm]: 225
- Voltage [V]: 12
- Weight [kg]: 1.770
- Width [mm]: 199
- Part Description: 2002 Volkswagen EuroVan HVAC Blower Motor
Vehicle Fitment- 2002 Volkswagen EuroVan | GLS | 6 Cyl 2.8L
- 2002 Volkswagen EuroVan | MV | 6 Cyl 2.8L
Product Specifications- Notes: w/ Wheel; w/ AC
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Diameter: 3.625
- Motor Length: 6.000
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Shaft Diameter: 0.3125
- Shaft Length: 1.500
- Style: Flanged
- Terminal Type: 2 Terminal Connector
- UPC: 096361757141
- Vented: Non Vented
- Voltage: 12
- Wheel Dia. IN: 5.750
- Wheel Height IN: 2.750
- Part Description: 2002 Volkswagen EuroVan Hvac Blower Motor With Wheel
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Description: w/Auto AC; Auto Temperature Controls
- for OE number: 1J0 907 521
- Height [mm]: 80.34
- Length [mm]: 76.05
- Number of Poles: 3
- Rated Voltage [V]: 12
- Vehicle Equipment: for vehicles with automatic climate control
- Weight [kg]: 0.147
- Width [mm]: 46.96
- Part Description: 2002 Volkswagen EuroVan HVAC Blower Motor Regulator
Vehicle Fitment- 2002 Volkswagen EuroVan | GLS | 6 Cyl 2.8L
- 2002 Volkswagen EuroVan | MV | 6 Cyl 2.8L
Product Specifications- Notes: w/ ATC
- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 3
- Speed: Variable
- UPC: 096361203822
- Part Description: 2002 Volkswagen EuroVan Hvac Blower Motor Resistor Block
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Thread Size: 7/16" 20 UNF Female; Plug (Connector): 4 Pins
- for OE number: 7M3 959 139
- Height [mm]: 70.8
- Length [mm]: 37.4
- Number of Poles: 4
- Packaging Depth [cm]: 6,8
- Packaging height [cm]: 6,7
- Packaging width [cm]: 4
- Weight [kg]: 0.068
- Width [mm]: 37.4
- Part Description: 2002 Volkswagen EuroVan HVAC Pressure Switch
Vehicle Fitment- 2002 Volkswagen EuroVan | GLS | All Engines
- 2002 Volkswagen EuroVan | MV | All Engines
Product Specifications- Color: Black
- Comp Open/Closed: Open
- Connector Gender: Female
- Connector Shape: Rectangle
- Fan Open/Closed: Open
- Fitting Gender: Female
- Fitting Thread Size: 7/16" x 20
- Item Included A Desc: 24650
- Item Included A Qty.: 1
- Material: Plastic / Metal
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 4
- Operate Psi High Off: 440
- Operate Psi High On: 340
- Operate Psi Low Off: 21
- Operate Psi Low On: 26
- Operate Psi Med Off: 180
- Operate Psi Med On: 225
- Style: Pressure
- Terminal Type: Pin
- UPC: 096361209749
- Voltage: 12
- Weather Pack: Yes
- Part Description: 2002 Volkswagen EuroVan A C Trinary Switch
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 4
- Speed: Fixed # 3
- UPC: 096361029941
- Part Description: 2002 Volkswagen EuroVan Hvac Blower Motor Resistor Block
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: FIO
- Liquid Inlet Type: Insert O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 8
- Liquid Outlet Style: FIO
- Liquid Outlet Type: Insert O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24611] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24681] / Green O-Ring
- O-Ring C Quantity: 1
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: FIO
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 12
- Suction Outlet Style: FIO
- Suction Outlet Type: Insert O-Ring
- Super Heat: 3.000
- Switch Included: Not Included
- Tonnage: 1.500
- UPC: 096361392595
- Part Description: 2002 Volkswagen EuroVan A C Expansion Valve
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Purple Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267671
- Part Description: 2002 Volkswagen EuroVan A C System O Ring And Gasket Kit
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ JRA Valves
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: 2002 Volkswagen EuroVan A C System Valve Core And Cap Kit
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Four Seasons® A C Clutch Control Relay Harness Connector for 2002 Volkswagen EuroVan
PartNumber: 37210$11.28Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 2002 Volkswagen EuroVan A C Clutch Control Relay Harness Connector
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Filter Type: Particulate
- Height: 4.02" (102mm)
- Inside Diameter: 4.41" (112mm)
- OE Part Number: 7D0819989, 703819990A, 703819989
- Outer Diameter: 6.61" (168mm)
- UPC: 765809292086

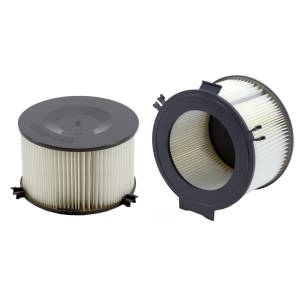

- Part Description: 2002 Volkswagen EuroVan Cabin Air Filter
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | 6 Cyl 2.8L
Product Specifications- UPC: 671607190472
- Part Description: 2002 Volkswagen EuroVan A/C Accumulator
Vehicle Fitment- 2002 Volkswagen EuroVan | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Description: With A/C; Exc.Automatic Temperature Controls;Grade: Aftermarket; Description: With A/C; For A/C Unit
- Height [mm]: 42.7
- Left-/right-hand drive vehicles: for left-hand drive vehicles
- Length [mm]: 72.8
- Required Quantity: 1
- Resistance [Ohm]: 0,26
- Vehicle Equipment: for vehicles with air conditioning
- Voltage [V]: 12
- Weight [kg]: 0.084
- Width [mm]: 46.75
- Part Description: 2002 Volkswagen EuroVan HVAC Blower Motor Resistor
Vehicle Fitment- 2002 Volkswagen EuroVan | GLS | 6 Cyl 2.8L
- 2002 Volkswagen EuroVan | MV | 6 Cyl 2.8L
