Notes: RPO Code NU6;with Delphi Fuel System;with California Emission System;Partial Zero Emissions Vehicle;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 8
Flow Rating: 16 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604196274
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

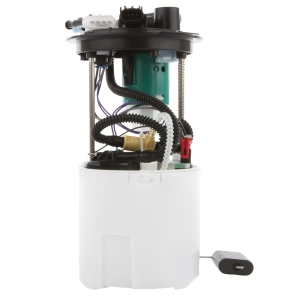

Part Description: 2008 Buick LaCrosse Fuel Pump Module Assembly
Notes: with Siemens Fuel System (RPO Code FFW);Except Partial Zero Emissions Vehicle;Two port cover utilized for manufacturing only use the open port do not tamper w/plugged tube port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 21 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 81.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Pin
UPC: 689604209233
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC

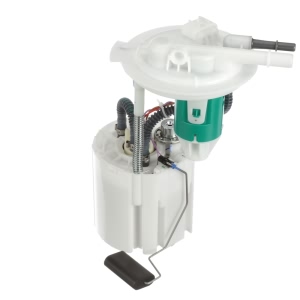

Part Description: 2008 Buick LaCrosse Fuel Pump Module Assembly
Notes: Applies to Autobest Fuel Systems Only;with Federal Tier 2 Emissions System;with California Emissions System;RPO Code NT7;RPO Code NU1;Two port cover utilized for manufactur;Applies to Autobest Fuel Systems Only;with Federal Tier 2 Emissions System;with California Emissions System;RPO Code NT7;RPO Code NU1;Two port cover utilized for manufactur;RPO Code NT7;Two port cover utilized for manufactur;Applies to Autobest Fuel Systems Only;with Federal Tier 2 Emissions System;with California Emissions System;RPO Code NU1;RPO Code NT7;Two port cover utilized for manufactur;Applies to Autobest Fuel Systems Only;with Federal Tier 2 Emissions System;with California Emissions System;RPO Code NU1
Average Current Draw(A): 7
Average Flow Rating(GPH): 26.1
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Racetrack
Country of Orign: China
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: Yes
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: Internal
Maximum Pump Pressure (PSI): 64
Minimum Pump Pressure (PSI): 59
Negative Ground: Yes
Outlet Quantity: 1
Outlet Size: 0.373
Outlet Type: Quick Connect
Product Height (in): 7.76
Product Length (in): 11.89
Product Width (in): 8.11
Pump Type: Turbine
Regulator Included: Yes
Resistance Ohms Empty: 42
Resistance Ohms Full: 253
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845127037
Voltage: 12V
Weight (lbs): 3.51
Wire Harness Included: No
Part Description: 2008 Buick LaCrosse Fuel Pump Module Assembly
Notes: Low Emission Vehicle 2 (LEV2);Federal Tier 2 Emissions;with California Emission System;RPO Code NT7;RPO Code NU1;Applies to Delphi Fuel Systems Only;Except Partial Zero Emissions Vehicle;Two port cover utilized for manufacturing only use the open port do not tamper w/plugged tube port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 22 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604188538
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2008 Buick LaCrosse Fuel Pump Module Assembly
Notes: with Delphi Fuel System (RPO Code FFV);Two port cover utilized for manufacturing only use the open port do not tamper w/plugged tube port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 25 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604188545
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2008 Buick LaCrosse Fuel Pump Module Assembly
