2017 Fiat 500 A/C & Heating
My Vehicle Change Vehicle
2017 Fiat 500
Product Specifications- Notes: w/SCSB06C Compressor; Reman w/Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.330
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: SCSB06C
- Distance From Clutch To Mounting Flange: 0.828125
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: 24661
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 24681
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.330
- Pulley Outside Diameter: 4.330
- Pulley Ridge Diameter: 4.330
- Refrigerant Type: R134a
- Terminal Type: Lead Wire
- UPC: 096361031425
- Part Description: 2017 Fiat 500 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2017 Fiat 500 | Lounge | 4 Cyl 1.4L
Product Specifications- Notes: Original Equipment Part Number 68096453AA
- Filter Type: Particulate
- Height: 1.18" (30mm)
- Length: 7.64" (194mm)
- OE Part Number: 68096453AA, 68096543AA
- UPC: 765809240537
- Width: 7.4" (188mm)
- Part Description: 2017 Fiat 500 Cabin Air Filter
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: Material: Particulate; Pollen Filter
- Filter Media Material: Particulate
- UPC: 884109537588
- Part Description: 2017 Fiat 500 Cabin air filter
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: w/SCSB06C Compressor; New w/Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 3.750
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: SCSB06C
- Distance From Clutch To Mounting Flange: 0.828125
- Mount Distance MM: 21.082
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24661] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24681] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 95.250
- Pulley Groove Quantity: 5
- Pulley Lip Diameter: 3.750
- Pulley Outside Diameter: 3.750
- Pulley Ridge Diameter: 3.750
- Refrigerant Type: R134a
- Terminal Type: Pin
- UPC: 096361683235
- w/ Diode: No
- Part Description: 2017 Fiat 500 A C Compressor With Clutch
Vehicle Fitment- 2017 Fiat 500 | Lounge | 4 Cyl 1.4L
Product Specifications- Notes: w/ Wheel;w/Wheel; w/Impeller
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Diameter: 3.000
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Style: Flanged
- Terminal Type: 2 Spade Connector
- UPC: 096361750494
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 4.750
- Wheel Height IN: 3.250
- Part Description: 2017 Fiat 500 Hvac Blower Motor With Wheel
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: Suction Line
- Bracket: w/ Bracket
- Component Type: Suction Line
- End 1 Type: P-Nut Fitting
- End 2 Type: P-Nut Fitting
- Fittings Included: Included
- Gasket or Seal Included: Included
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24150] / Black O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24404] / Slimline Washer
- O-Ring B Quantity: 2
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/ Service Port
- Suction End Type: P-Nut Fitting
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- System Pressure: Low Pressure
- UPC: 096361072732
- Part Description: 2017 Fiat 500 A C Refrigerant Suction Hose
Vehicle Fitment- 2017 Fiat 500 | E | All Engines
Product Specifications- Core Depth Fraction: 1-1/2
- Core Depth MM: 38
- Core Height Fraction: 8-1/8
- Core Height MM: 207
- Core Width Fraction: 10-7/16
- Core Width MM: 265
- Depth: 1.500
- Height: 8.15
- UPC: 096361086043
- Part Description: 2017 Fiat 500 A C Evaporator Core
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: Discharge Line
- Bracket: w/o Bracket
- Component Type: Discharge Line
- Fittings Included: Included
- Gasket or Seal Included: Included
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24402] / Slimline Washer
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 2
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/ Service Port
- Service Port Qty: 1
- Service Port Size: 16 mm
- Service Port Type: R134-A Quick Disconnect
- Suction End Type: P-Nut Fitting
- Svc Port High Side: High Side
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- System Pressure: High Pressure
- UPC: 096361072657
- Part Description: 2017 Fiat 500 A C Refrigerant Discharge Hose
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Fitting Gender: Female
- Fitting Thread: M10x1.250
- Fitting Thread Size: M10x1.250
- Material: Plastic / Metal
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 3
- Refrigerant Type: R134a
- Terminal Gender: Male
- Universal Or Specific Fit: Specific
- UPC: 096361373686
- Weather Pack: Yes
- Part Description: 2017 Fiat 500 Hvac System Switch
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: w/o ATC
- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 4
- Speed: Fixed # 3
- UPC: 096361029309
- Part Description: 2017 Fiat 500 Hvac Blower Motor Resistor Block
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: Discharge Line
- Bracket: w/o Bracket
- Component Type: Discharge Line
- Fittings Included: Included
- Gasket or Seal Included: Included
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24661] / Green O-Ring
- O-Ring A Quantity: 4
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/o Service Port
- Suction End Type: P-Nut Fitting
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- UPC: 096361030749
- Part Description: 2017 Fiat 500 A C Refrigerant Discharge Hose
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
Product Specifications- Liquid Inlet Fitting Gender: Female
- Liquid Outlet Fitting Gender: Female
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Outlet Fitting Gender: Female
- Switch Included: Not Included
- UPC: 096361099678

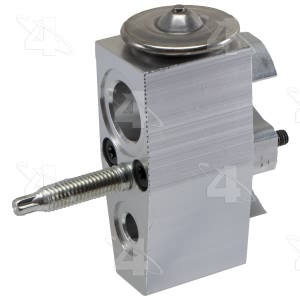

- Part Description: 2017 Fiat 500 A C Expansion Valve
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Notes: w/HFO-1234yf
- Liquid Inlet Fitting Gender: Female
- Liquid Outlet Fitting Gender: Female
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Outlet Fitting Gender: Female
- Switch Included: Not Included
- UPC: 096361099647
- Part Description: 2017 Fiat 500 A C Expansion Valve
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
Product Specifications- Notes: (Condenser & Drier Assy)
- UPC: 671607231410
- Part Description: 2017 Fiat 500 A/C Condenser
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
Product Specifications- Body Diameter: 1.1811
- Body Length: 10.750
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: 0.625
- Inlet Fraction: 5/8
- Length MM: 272.000
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Bracket Included: Hardware not included
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 5/8
- Outlet IN: 0.625
- Overall Depth IN: 11.14
- Overall Depth MM: 283
- Service Port: w/o Service Port
- Sight Glass: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361832459
- Part Description: 2017 Fiat 500 Aluminum Filter Drier w/ Pad Mount
Vehicle Fitment- 2017 Fiat 500 | All Trims | All Engines
- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
Product Specifications- Notes: OE Recommended Replacement filter; Premium electrostatically charged media; Captures ultra-fine particulates such as diesel carbon & smoke
- Filter Media Material: ELECTROSTATIC PARTICULATE
- Height: 1.2
- Length: 7.4
- Reusable: No
- UPC: 042511209473
- Width: 7.64
- Part Description: 2017 Fiat 500 Cabin Air Filter
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
Product Specifications- Pallet Layer Quantity: 156
- UPC: 768370057412
- Part Description: 2017 Fiat 500 Cabin Air Filter
Vehicle Fitment- 2017 Fiat 500 | All Trims | 4 Cyl 1.4L
- 2017 Fiat 500 | All Trims | All Engines
