Four Seasons® A C Compressor With Clutch for Volvo S90
PartNumber: 158507Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.72
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: PXC14
- ECV Harness Connector: SE25F, 26897 Female / / SE23M, 26883 Male
- Mounting Hardware: Not Included
- Mounting Type: 3 Tangent One on Rear Head
- New or Reman: New
- O-Ring A Number/Desc: 24615
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.72
- Pulley Outside Diameter: 4.72
- Pulley Ridge Diameter: 4.72
- Refrigerant Type: R134a
- Terminal Type: Pin
- UPC: 096361071773
- Part Description: Volvo S90 A C Compressor With Clutch
$550.66
WIX® Cabin Air Panel for Volvo S90
PartNumber: WP10279Product Specifications- Filter Type: Particulate
- Height: 1.614" (41mm)
- Length: 13.268" (337mm)
- OE Part Number: 31407747
- UPC: 765809311336
- Width: 9.409" (239mm)
- Part Description: Volvo S90 Cabin Air Panel
$36.63
Hengst® Cabin air filter for Volvo S90
PartNumber: E4936LCProduct Specifications- Part Description: Volvo S90 Cabin air filter
$16.97
Four Seasons® A C Compressor With Clutch for Volvo S90
PartNumber: 158504Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.72
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: See under hood decal for proper oil type.
- Compressor Type: PXC16
- Distance From Clutch To Mounting Flange: 1.453125
- ECV Harness Connector: SE25F, 26897 Female / / SE23M, 26883 Male
- Mounting Hardware: Not Included
- Mounting Type: 3 Tangent One on Rear Head
- New or Reman: New
- O-Ring A Number/Desc: 24632
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 214C70
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.72
- Pulley Outside Diameter: 4.72
- Pulley Ridge Diameter: 4.72
- Refrigerant Type: R-134a or R1234yf
- Terminal Type: Pin
- UPC: 096361069527
- Part Description: Volvo S90 A C Compressor With Clutch
$366.08
Four Seasons® Hvac Blower Motor With Wheel for Volvo S90
PartNumber: 35319Product Specifications- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 4.125
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Printed Foot Note: Use when updating a one terminal to a two terminal
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.6875
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361353190
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.875
- Wheel Height IN: 2.6875
- Part Description: Volvo S90 Hvac Blower Motor With Wheel
$84.59
Four Seasons® A C Condenser Fan Switch for Volvo S90
PartNumber: 20961Product Specifications- Connector Color: Black; Brown
- Connector Gender: Male
- Connector Shape: Oval; Rectangle
- Fan Open/Closed: Open
- Fitting Gender: Female
- Fitting Thread Size: M12 x 1.50
- Item Included A Desc: 24676
- Item Included A Qty.: 1
- Material: Steel
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Operate Psi Med Off: 240
- Operate Psi Med On: 330
- Style: Pressure
- Terminal Quantity: 2
- UPC: 096361209619
- Part Description: Volvo S90 A C Condenser Fan Switch
$32.03
Four Seasons® A C Orifice Tube for Volvo S90
PartNumber: 38904Product Specifications- Color: White
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389045
- Part Description: Volvo S90 A C Orifice Tube
$11.92
Four Seasons® A C System Valve Core And Cap Kit for Volvo S90
PartNumber: 26783Product Specifications- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: Volvo S90 A C System Valve Core And Cap Kit
$10.86
Four Seasons® A C Clutch Control Relay Harness Connector for Volvo S90
PartNumber: 37210Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: Volvo S90 A C Clutch Control Relay Harness Connector
$10.29
Four Seasons® A C System O Ring And Gasket Kit for Volvo S90
PartNumber: 26794Product Specifications- Material: Yellow Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267947
- Part Description: Volvo S90 A C System O Ring And Gasket Kit
$9.54
Four Seasons® A C Orifice Tube for Volvo S90
PartNumber: 38902Product Specifications- Color: Red
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389021
- Part Description: Volvo S90 A C Orifice Tube
$7.85
Four Seasons® A C Orifice Tube for Volvo S90
PartNumber: 38642Product Specifications- Color: Yellow
- Orifice Dia. IN: .062
- Orifice Dia. MM: 1.537 to 1.613
- Pack in Qty of: 1
- Printed Foot Note: Optional AAOT Part No. [38902], For climates above 105Deg use (Severe Duty) AAOT [38904]
- Style: Standard
- UPC: 096361386426
- Part Description: Volvo S90 A C Orifice Tube
$1.20

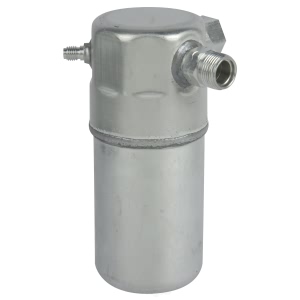

Four Seasons® A C Accumulator for Volvo S90
PartNumber: 33110Product Specifications- Body Diameter: 3.500
- Body Length: 9.000
- Dia. MM: 88.900
- Inlet Fitting Diameter: 3/4
- Inlet Fitting Type: Female O-Ring
- Inlet Thread Size: M27x2.000
- Length MM: 228.600
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hardware: Hardware not included.
- O-Ring A Number/Desc: [24676] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24612] / Green O-Ring
- O-Ring B Quantity: 2
- Outlet Fitting Type: Male Insert O-Ring
- Outlet Fraction: 3/4
- Outlet Thread Size: M27x2.000
- Style: Complete Unit
- Switch: w/ Switch Port
- Switch Port Dia. IN: 0.472
- Switch Port Dia.MM: 12.000
- Switch Service Port: w/o Service Port
- UPC: 096361331105
- Part Description: Volvo S90 A C Accumulator
$18.38
Four Seasons® A C Evaporator Core for Volvo S90
PartNumber: 54855Product Specifications- Core Depth Fraction: 2-7/8
- Core Depth MM: 73.025
- Core Height Fraction: 9-9/16
- Core Height MM: 243
- Core Width Fraction: 10
- Core Width MM: 255
- Depth: 2.875
- Height: 9.57
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24668] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24672] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361548558
- Width: 10.000
- Part Description: Volvo S90 A C Evaporator Core
$62.92
Dorman® Hvac Pressure Switch for Volvo S90
PartNumber: 904-615Product Specifications- Amperage Rating: 1 A
- Color: Black
- Connector Color: Black
- Connector Gender: Female
- Connector Shape: Rectangular
- Housing Material: Metal
- Maximum Pressure Reading: 522 PSI
- Mount Type: Bolt On
- Mounting Bracket Included: No
- OE Part Number: 31368366
- Package Contents: 1 A/C Pressure Sensor
- Pressure Limit Closed: 260 PSI
- Pressure Limit Open: 475 PSI
- Refrigerant Type: R134A
- Terminal Gender: Male
- Terminal Quantity: 3
- Terminal Type: Blade
- Thread Diameter: 3/8 in; 1/2 in; 5/8 in; 3/4 in; 1 in
- Universal Or Specific Fit: Specific
- UPC: 889245915900
- Voltage: 5 VDC
- Wire Quantity: 0
- Part Description: Volvo S90 Hvac Pressure Switch
Spectra Premium® A/C Accumulator for Volvo S90
PartNumber: 0233110Product Specifications- UPC: 671607178036
- Part Description: Volvo S90 A/C Accumulator
Hastings® Cabin Air Filter for Volvo S90
PartNumber: AFC1010Product Specifications- Pallet Layer Quantity: 54
- Part Description: Volvo S90 Cabin Air Filter
WIX® Cabin Air Filter for Volvo S90
PartNumber: 24821Product Specifications- Filter Type: Particulate
- Height: 1.3" (33mm)
- Length: 10.185" (259mm)
- OE Part Number: 1343232, 9171296, 9488527, 91712968, 9184130, 13432323, 9192522, 13432322, 9171483, 9192523, 9134577
- UPC: 765809248212
- Width: 6.625" (168mm)
- Part Description: Volvo S90 Cabin Air Filter
WIX® Cabin Air Filter for Volvo S90
PartNumber: WP2153Product Specifications- Class: W
- Duty Type: LD
- Height: 1.654"
- Length: 13.15"
- OE Part Number: 31407748, 31404469
- UPC: 765809994379
- Width: 9.37"
- Part Description: Volvo S90 Cabin Air Filter
Four Seasons® Remanufactured A C Compressor With Clutch for Volvo S90
PartNumber: 67574Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Top-Vert O-Ring
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: SR
- Compressor Type: SD7H15
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.34375
- Mount Distance MM: 34.290
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24615] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Bullet
- UPC: 096361675742
- w/ Diode: Yes
- Part Description: Volvo S90 Remanufactured A C Compressor With Clutch
