Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | H727CP |

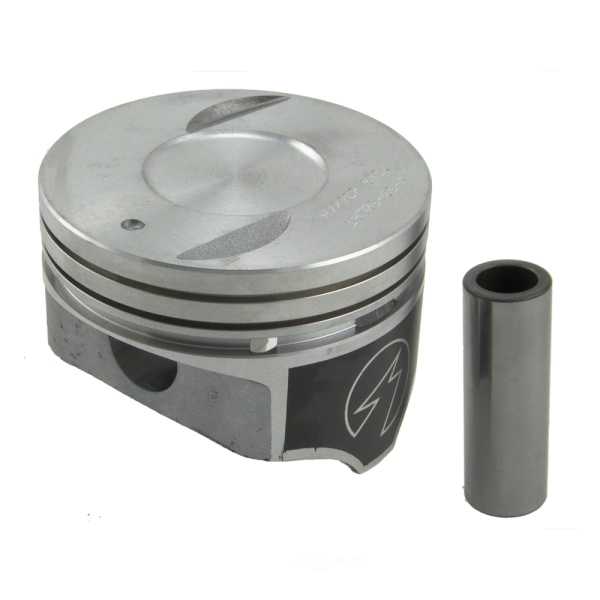

| Part Description | Duroshield Cast Piston |
| Bore | 107.9500 |
| Compression Distance | 1.625 |
| Head Illustration | 10 |

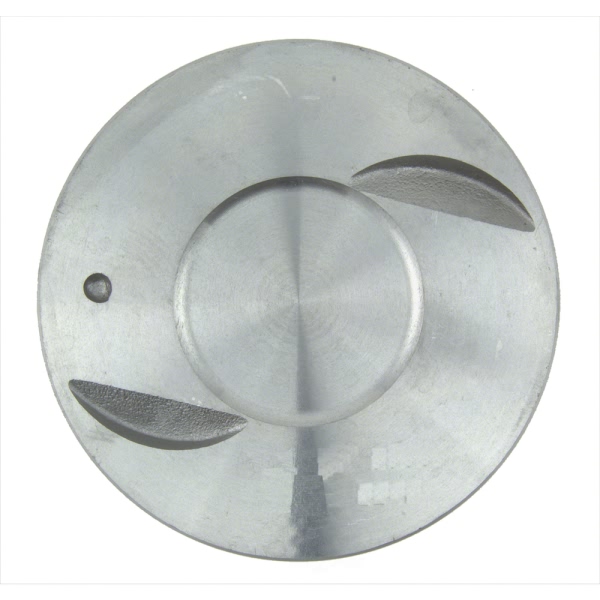

| Head Type | Recessed Head .070 deep x 2.000 dia. w/2 valve reliefs; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Material | Hypereutectic |
| Pin Diameter | 25.128 |
| Pin Offset | 1.016 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64 |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16 |
| UPC | 614046230149 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-1993 Chevrolet C1500 | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet C2500 | All Trims | 8 Cyl 7.4L |
| 1992-1995 Chevrolet C2500 Suburban | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet G30 | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet K2500 | All Trims | 8 Cyl 7.4L |
| 1992-1995 Chevrolet K2500 Suburban | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
| 1991-1995 Chevrolet P30 | All Trims | 8 Cyl 7.4L |
| 1991 Chevrolet R2500 Suburban | All Trims | 8 Cyl 7.4L |
