Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | H831CP |

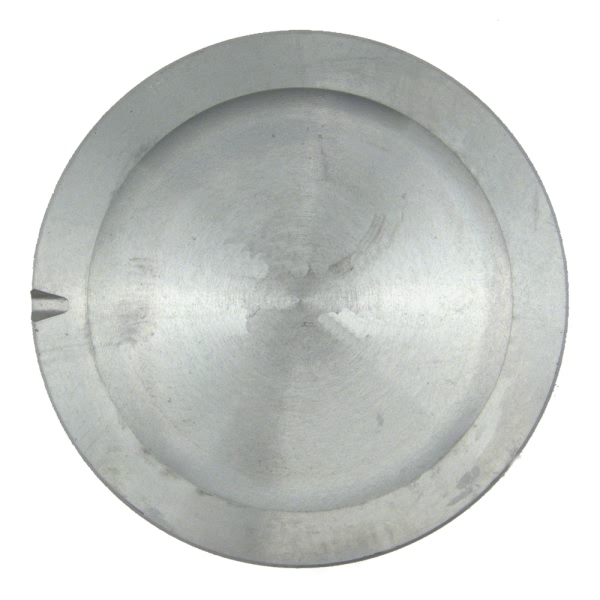

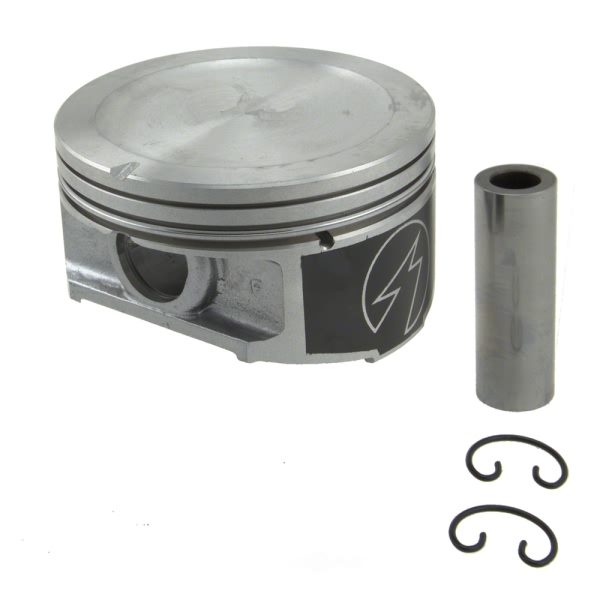

| Part Description | Duroshield Cast Piston |
| Bore | 3.5512" |
| Compression Distance | 1.210 |
| Head Illustration | 18 |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Material | Hypereutectic |
| Pin Diameter | 0.866" |
| Pin Offset | 1.016 |
| Pin Type | Hypereutectic; Floated pin |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3.00mm |
| Size | Standard |
| UPC | 614046236165 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2004 Ford E-150 | All Trims | 8 Cyl 4.6L |
| 2003-2004 Ford E-150 Club Wagon | All Trims | 8 Cyl 4.6L |
| 1997-2002 Ford E-150 Econoline | All Trims | 8 Cyl 4.6L |
| 1997-1998 Ford E-150 Econoline Club Wagon | All Trims | 8 Cyl 4.6L |
| 2000-2002 Ford E-150 Econoline Club Wagon | All Trims | 8 Cyl 4.6L |
| 2003-2004 Ford E-250 | All Trims | 8 Cyl 4.6L |
| 1997-2004 Ford Expedition | All Trims | 8 Cyl 4.6L |
| 2002-2004 Ford Explorer | All Trims | 8 Cyl 4.6L |
| 1997-2004 Ford F-150 | All Trims | 8 Cyl 4.6L |
| 2004 Ford F-150 Heritage | All Trims | 8 Cyl 4.6L |
