Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | H855CP |

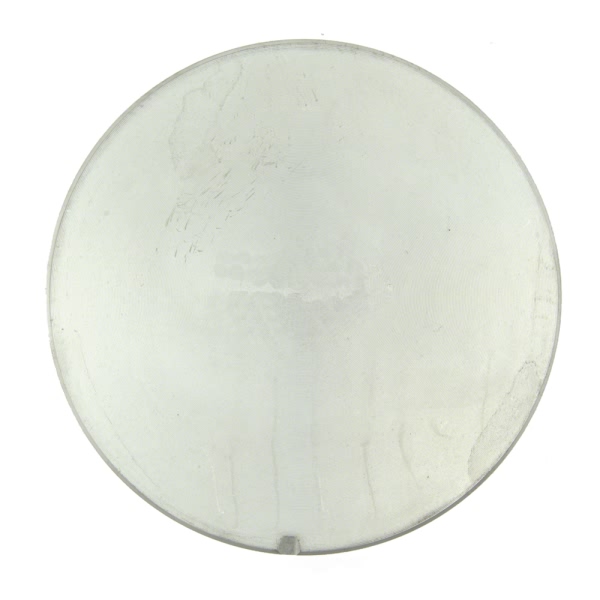

| Part Description | Duroshield Cast Piston |
| Bore | 96.0000 |
| Compression Distance | 1.324 |
| Head Illustration | 23 |
| Head Type | Flat Head; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Material | Hypereutectic |
| Pin Diameter | 24.008 |
| Pin Offset | 0.03" |
| Pin Type | P |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3.00mm |
| UPC | 614046627468 |
| Weight W Pin Gram | 00568.+/- 00. |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2004 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
| 2003-2004 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
| 1999-2004 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
| 2000-2004 Chevrolet Tahoe | All Trims | 8 Cyl 4.8L |
| 2003-2004 GMC Savana 2500 | All Trims | 8 Cyl 4.8L |
| 2003-2004 GMC Savana 3500 | All Trims | 8 Cyl 4.8L |
| 1999-2004 GMC Sierra 1500 | All Trims | 8 Cyl 4.8L |
| 2000-2004 GMC Yukon | All Trims | 8 Cyl 4.8L |
