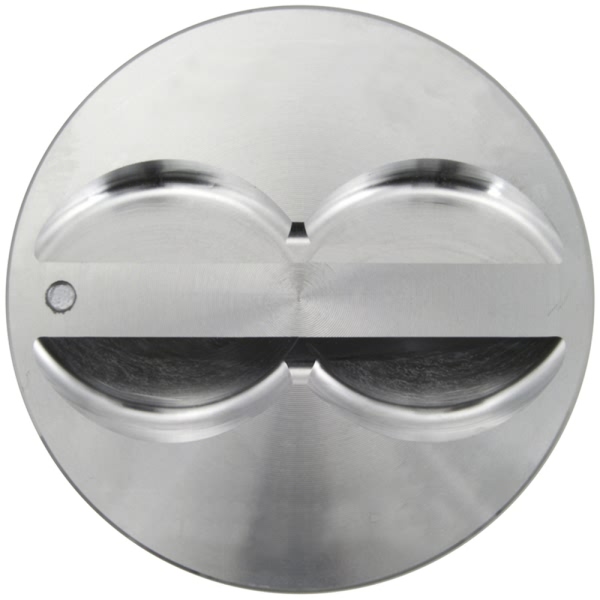

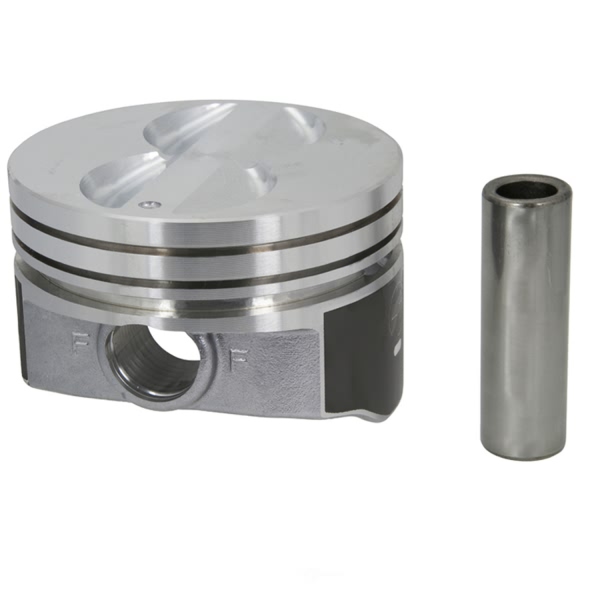

Sealed Power® Duroshield Flat Top Cast Piston WH345DCP

Sealed Power Duroshield Flat Top Cast Piston WH345DCP
$22.39
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberWH345DCP
    Part DescriptionDuroshield Flat Top Cast Piston
    Bore4"
    Compression Distance1.548"
    Dome Volume CC-6.9
    Head Illustration183
    Lock RingNot Included
    MaterialHypereutectic
    Minimum Clearance0.0010
    Pin Diameter26.421 mm
    Pin Offset1.016 mm
    Pin TypeF
    Pin Weight Gram149
    Ring 1 Qty2
    Ring 1 Width5/64"
    Ring 2 Qty1
    Ring 2 Width3/16"
    Ring 3 Qty1
    Ring 3 Width3/16"
    SizeStandard
    UPC019826510198
    Weight W Pin Gram678
    Weight w/o Pin Gram529
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston WH345DCP is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1990 Cadillac BroughamAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet Bel AirAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet BiscayneAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet BlazerAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet BrookwoodAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet C10 PickupAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet C10 SuburbanAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet C20 PickupAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet C20 SuburbanAll Trims8 Cyl 5.7L
    1969-1970 Chevrolet C30 PickupAll Trims8 Cyl 5.7L
