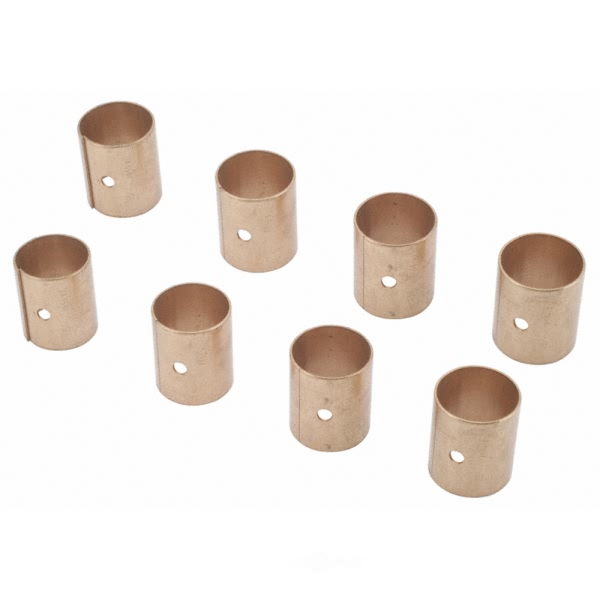

Sealed Power® Engine Piston Wrist Pin Bushing 1559VA

Sealed Power Engine Piston Wrist Pin Bushing 1559VA

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part Number1559VA
    Part DescriptionEngine Piston Wrist Pin Bushing
    ID Max24.917
    ID Max (Inch)0.9810
    Length Max32.004
    Length Max (Inch)1.2600
    OD Max26.353
    OD Max (Inch)1.0375
    Part MaterialCopper alloy
    UPC724956053254
    Warning: California’s Proposition 65
  • Features

    Sealed Power Piston Pin Bushing are featured as follows:
    • The cylinder sealing is improved to reduce blow-by.
    • It carries standard ring gaps in the first groove.
    • The piston covered with DUROSHIELD on the skirt.
    • The engine's life is prolonged thanks to moly-graphite coating.
    • Low friction leads to increased fuel economy.
    • Protects against damage from insufficient lubrication upon start-up.
    • Casted with FM413 Eutectic Aluminum alloy containing 12% silicon which provides strength and durability.
    • Up-tilt ring grooves enhance piston-to-ring seals which cause tremendous blow-by control also.
    • Sealed Power engine products include a complete line of internal replacement parts specifically designed for the application.
    The Piston Pin Bushing 1559VA by Sealed Power is a high quality internal replacement component for engines. It features a steel-backed bronze alloy lining. Renowned for its fatigue resistance and strength. This makes it particularly suitable for older applications that require a high degree of conformability. The standard material used in this product is comparable to the performance bearing of competitors. Manufacturing process adheres to ISO and QS certified standards. This product is part of Sealed Power comprehensive range of engine products, which are the result of continuous product development efforts aimed at delivering only the best components for street use.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1959 GMC 100All Trims8 Cyl 5.5L
    1959 GMC 150All Trims8 Cyl 5.5L
    1959 GMC 250All Trims8 Cyl 5.5L
    1959 GMC 300All Trims8 Cyl 5.5L
    1959 GMC 350-8All Trims8 Cyl 5.5L
    1959 GMC 370All Trims8 Cyl 5.5L
    1959 GMC F350All Trims8 Cyl 5.5L
    1959 GMC F370All Trims8 Cyl 5.5L
    1959 GMC FM340All Trims8 Cyl 5.5L
    1959 GMC FM350All Trims8 Cyl 5.5L
