Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | 495P |

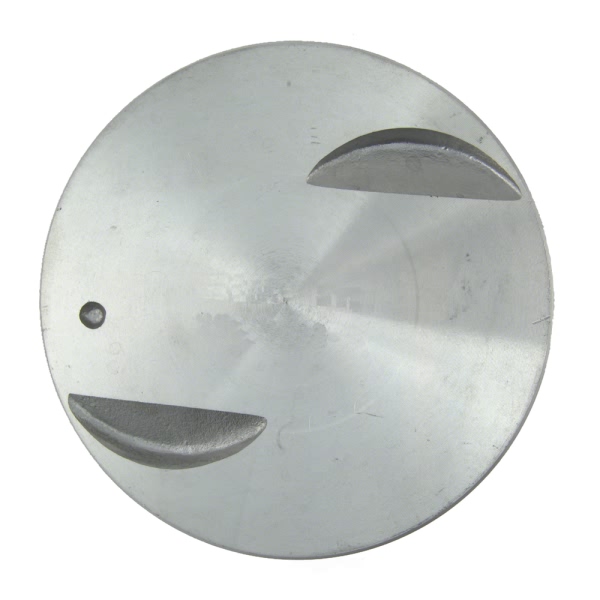

| Part Description | Engine Piston |
| Bore | 96.0000 |
| Bore (Inch) | 3.7795 |
| Compression Distance | 1.578 |
| Head Illustration | 5 |
| Head Type | Flat Head w/2 valve reliefs - 8.7:1 C.R. |
| Minimum Clearance | 0.001 @ 2.310 from top of head |
| Note 1 | Standard Size |
| Part Material | Cast |
| Pin Diameter | 23.17 |
| Pin Diameter (Inch) | 0.9122 |
| Pin Offset | 1.524 |
| Pin Offset (Inch) | 0.06 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 4.00mm |
| Standard Size | Standard |
| UPC | 724956360161 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1983 Ford Fairmont | All Trims | 4 Cyl 2.3L |
| 1983-1986 Ford LTD | All Trims | 4 Cyl 2.3L |
| 1983-1986 Ford Mustang | All Trims | 4 Cyl 2.3L |
| 1983-1984 Ford Ranger | All Trims | 4 Cyl 2.3L |
| 1983-1986 Mercury Capri | All Trims | 4 Cyl 2.3L |
| 1983-1986 Mercury Marquis | All Trims | 4 Cyl 2.3L |
| 1983 Mercury Zephyr | All Trims | 4 Cyl 2.3L |
