Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | 803CP |

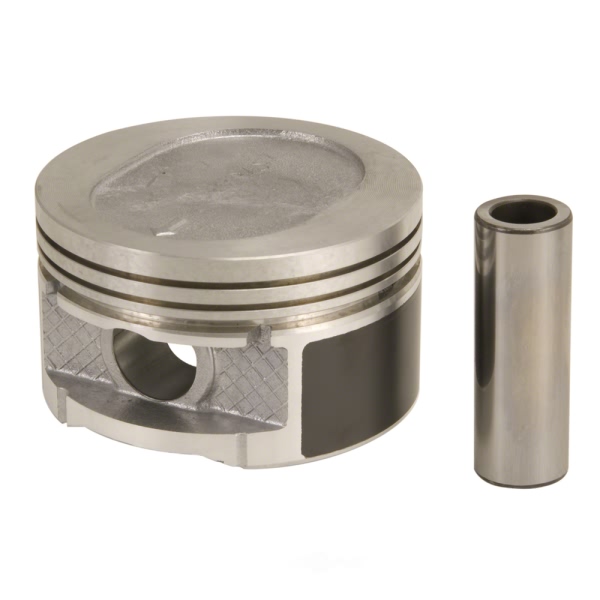

| Part Description | Engine Piston |
| Bore | 96.0000 |
| Bore (Inch) | 3.7800 |
| Compression Distance | 1.377 |
| Head Illustration | 126 |

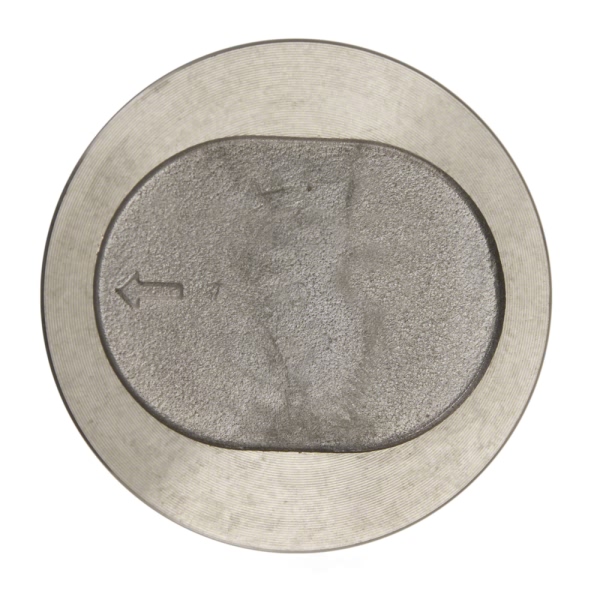

| Head Type | Recessed Head .200 deep; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Note 1 | Standard Size |
| Part Material | Cast |
| Pin Diameter | 22.888 |
| Pin Diameter (Inch) | 0.9011 |
| Pin Offset | 1.524 |
| Pin Offset (Inch) | 0.06 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3.00mm |
| Standard Size | Standard |
| UPC | 614046232792 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-1993 Chrysler Imperial | All Trims | 6 Cyl 3.8L |
| 1991-1993 Chrysler New Yorker | All Trims | 6 Cyl 3.8L |
| 1994-1997 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
| 1996-1997 Dodge Caravan | All Trims | 6 Cyl 3.8L |
| 1994-1997 Dodge Grand Caravan | All Trims | 6 Cyl 3.8L |
| 1994-1996 Plymouth Grand Voyager | All Trims | 6 Cyl 3.8L |
