Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | H800P |

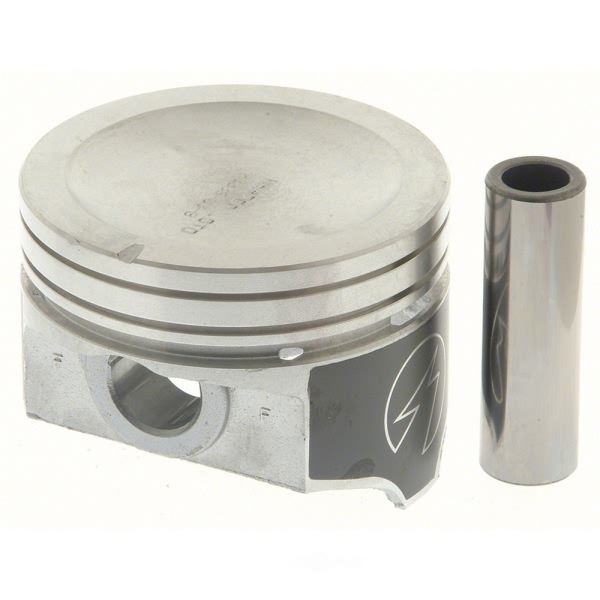

| Part Description | Engine Piston |
| Bore | 92.0000 |
| Bore (Inch) | 3.6220 |
| Compression Distance | 1.450 |
| Head Illustration | 28 |

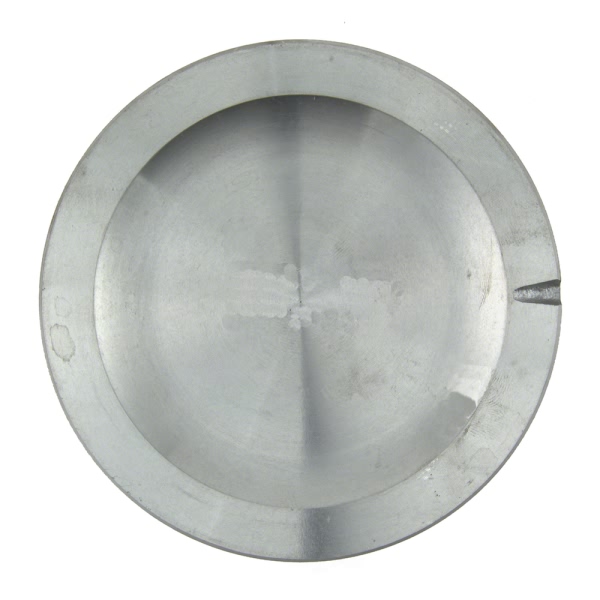

| Head Type | Recessed Head .087 deep x 2.765 dia. |
| Minimum Clearance | 0.001 @ 1.840 from top of head |
| Note 1 | Standard Size |
| Part Material | Hypereutectic |
| Pin Diameter | 22.997 |
| Pin Diameter (Inch) | 0.9054 |
| Pin Offset | 0.762 |
| Pin Offset (Inch) | 0.03 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1.50mm |
| Ring 2 Qty | 1 |
| Ring 2 Width | 4.00mm |
| Standard Size | Standard |
| UPC | 614046230392 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993-1995 Chevrolet Camaro | All Trims | 6 Cyl 3.4L |
| 1993-1995 Pontiac Firebird | All Trims | 6 Cyl 3.4L |
