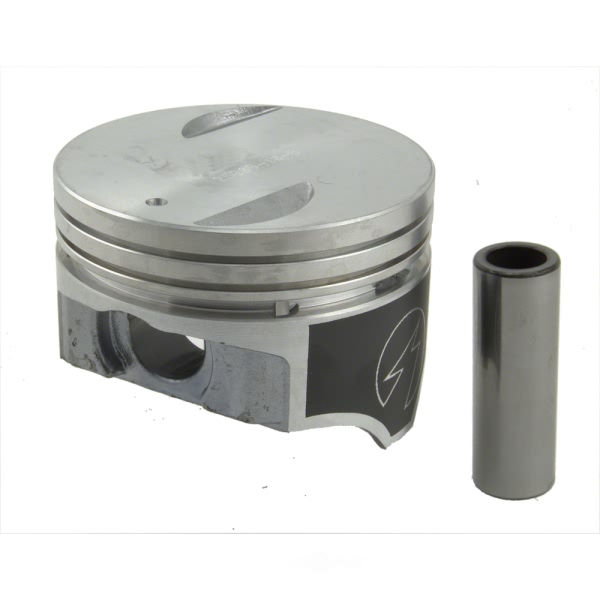

Sealed Power® Flat Top Piston H880CP

Sealed Power Flat Top Piston H880CP

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberH880CP
    Part DescriptionFlat Top Piston
    Bore107.9000
    Bore (Inch)4.2500
    Compression Distance1.350
    Head Illustration5

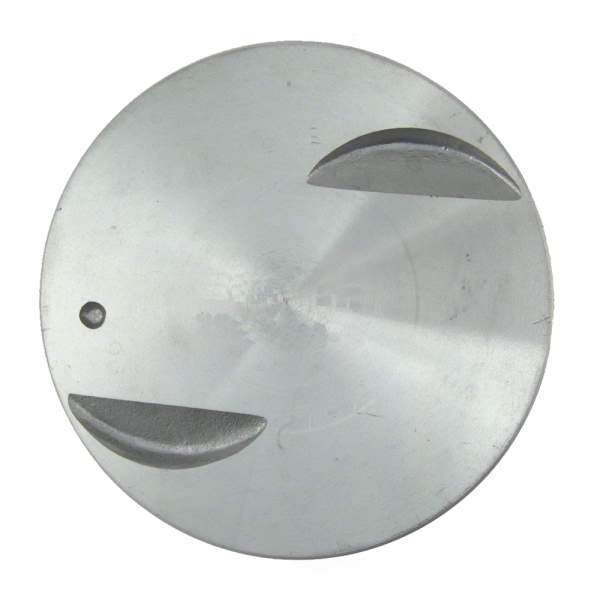

    Head TypeFlat Head w/2 valve reliefs; DUROSHIELD~ skirt coated piston; Use w/E942K ring set.
    Minimum ClearanceSee Piston Fitting Information on carton label
    Note 1Standard Size
    Part MaterialHypereutectic
    Pin Diameter26.431
    Pin Diameter (Inch)1.0406
    Pin Offset1.016
    Pin Offset (Inch)0.04
    Pin TypeHypereutectic; Press fit pin
    Ring 1 Qty2
    Ring 1 Width2.00mm
    Ring 2 Qty1
    Ring 2 Width4.00mm
    Standard SizeStandard
    UPC614046721807
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston H880CP is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2002-2004 Chevrolet Avalanche 2500All Trims8 Cyl 8.1L
    2001-2002 Chevrolet Express 3500All Trims8 Cyl 8.1L
    2001-2004 Chevrolet Silverado 2500 HDAll Trims8 Cyl 8.1L
    2001-2004 Chevrolet Silverado 3500All Trims8 Cyl 8.1L
    2001-2004 Chevrolet Suburban 2500All Trims8 Cyl 8.1L
    2001-2002 GMC Savana 3500All Trims8 Cyl 8.1L
    2001-2004 GMC Sierra 2500 HDAll Trims8 Cyl 8.1L
    2001-2004 GMC Sierra 3500All Trims8 Cyl 8.1L
    2001-2004 GMC Yukon XL 2500All Trims8 Cyl 8.1L
