Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | H1127CPA |

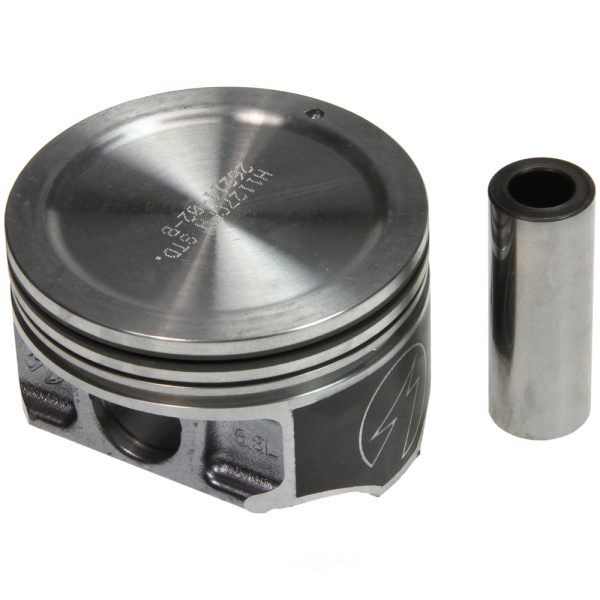

| Part Description | Piston With Lock Ring |
| Bore | 4.040" |
| Compression Distance | 1.425" |
| Dome Volume CC | -5 |

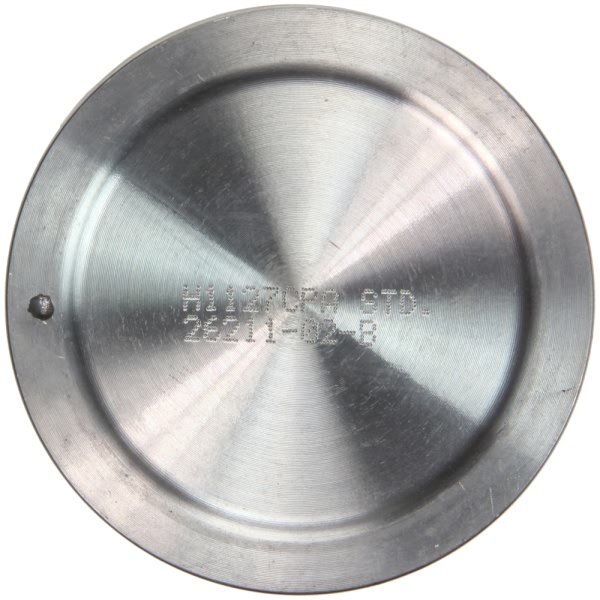

| Head Illustration | 188 |
| Lock Ring | Included |
| Material | Hypereutectic |
| Minimum Clearance | 0.0015 |
| Pin Diameter | 0.927" |
| Pin Type | F |
| Pin Weight Gram | 133 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 1/16" |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16" |
| Size | Standard |
| UPC | 019826085764 |
| Weight W Pin Gram | 672 |
| Weight w/o Pin Gram | 539 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004 Buick Rainier | All Trims | 8 Cyl 5.3L |
| 2004-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
| 2004-2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
| 2004-2005 Chevrolet Express 2500 | All Trims | 8 Cyl 5.3L |
| 2004 Chevrolet SSR | All Trims | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
| 2007 Chevrolet Silverado 1500 Classic | All Trims | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Tahoe | All Trims | 8 Cyl 5.3L |
