Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Sealed Power |
| Part Number | W677AP |
| Part Description | Piston |
| Bore | 99.0000 |
| Bore (Inch) | 3.8750 |
| Compression Distance | 1.585 |

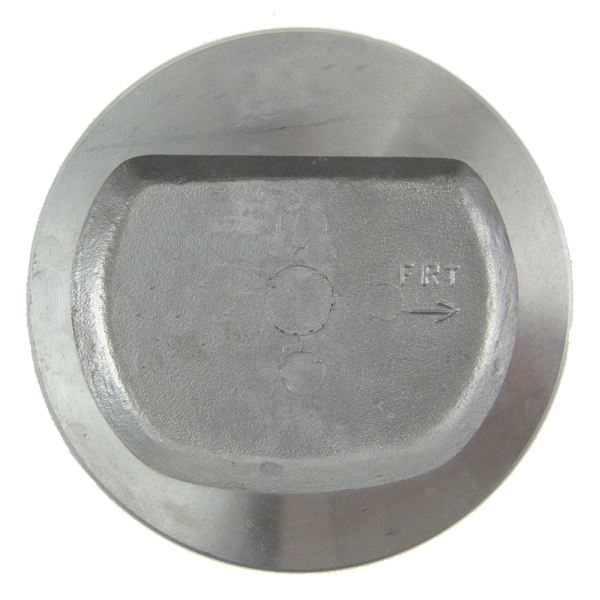

| Head Illustration | 12 |
| Head Type | Recessed Head .116 deep |
| Minimum Clearance | 0.001 @ 2.420 from top of head |
| Note 1 | Standard Size |
| Note 2 | Single Piston |
| Package Alert | Single Piston |
| Part Material | Cast |
| Pin Diameter | 23.647 |
| Pin Diameter (Inch) | 0.931 |
| Pin Offset | 1.524 |
| Pin Offset (Inch) | 0.06 |
| Ring 1 Qty | 2 |
| Ring 1 Width | 5/64 |
| Ring 2 Qty | 1 |
| Ring 2 Width | 3/16 |
| Standard Size | Standard |
| UPC | 614046946491 |
| Weight W Pin Gram | 00729.+/- 00. |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1995 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
| 1987-1992 Jeep Comanche | All Trims | 6 Cyl 4.0L |
| 1993-1995 Jeep Grand Cherokee | All Trims | 6 Cyl 4.0L |
| 1987-1990 Jeep Wagoneer | All Trims | 6 Cyl 4.0L |
| 1991-1995 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
