Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13529 |

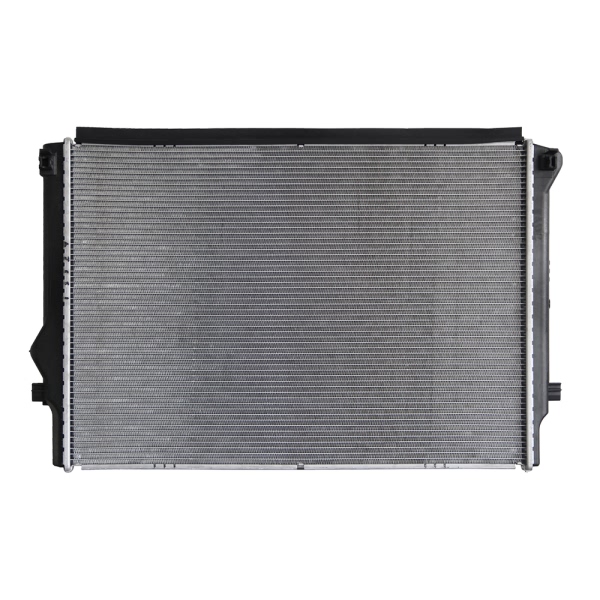

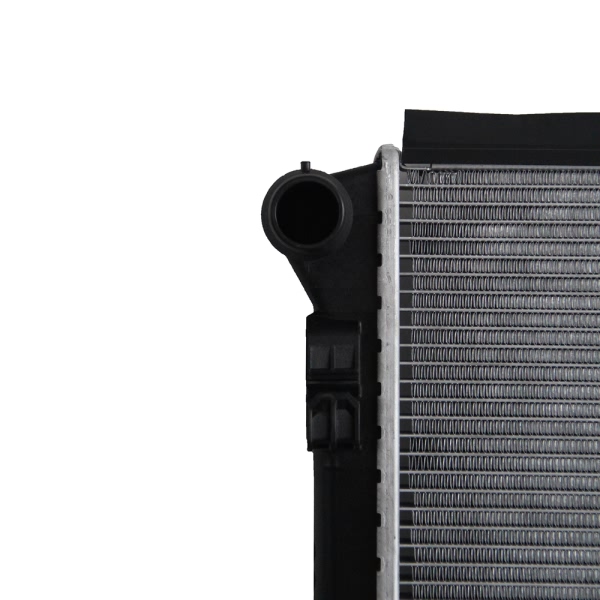

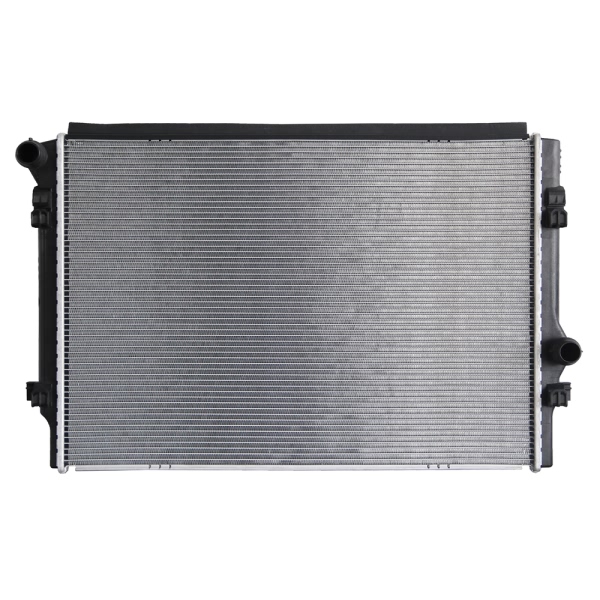

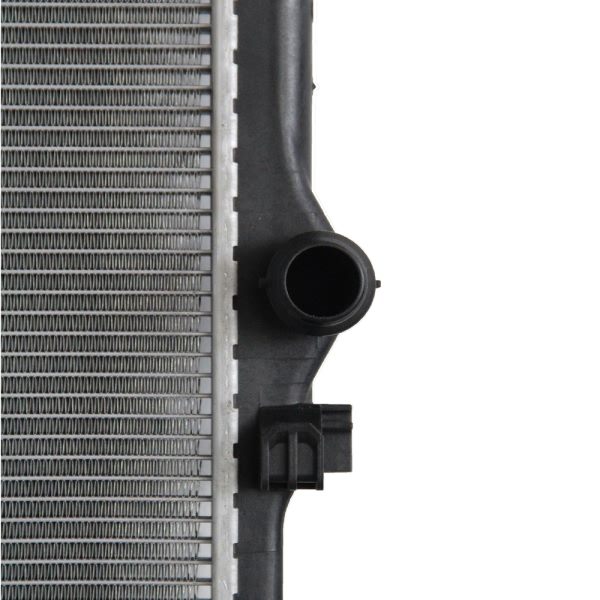

| Part Description | Engine Coolant Radiator |
| Core Height | 25.59" |
| Core Length | 17.75" |
| Core Material | Aluminum |
| Core Thickness | 1.02" |
| EOC (Yes/No) | No |
| Fin Count (Every 4"): 85 | 85 |
| Fin Wave Height | 6.3" |
| Flow Configuration | CrossFlow |
| Inlet Connection Type | Spring Lock |
| Inlet Diameter | 32.5mm |
| No. Of Rows | 1 |
| UPC | 762405912592 |
| OE Part Number | 5Q0 121 251 EP, VW3010166 |
| Outlet Connection Type | Spring Lock |
| Outlet Diameter | 32.5mm |
| Tank Material | Plastic |
| TOC (Yes/No) | No |
| Total Tube Count | 57 |
| Tube Count (Every 4"): 13 | 13 |
| Tube Width x Height | 26" x 1.5" |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015-2016 Audi A3 | All Trims | 4 Cyl 1.8L |
| 2017-2020 Audi A3 | All Trims | 4 Cyl 2.0L |
| 2018 Audi A3 | All Trims | 4 Cyl 1.8L |
| 2015-2019 Audi S3 | All Trims | 4 Cyl 2.0L |
| 2016 Audi TT | All Trims | 4 Cyl 2.0L |
| 2015 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
| 2015-2019 Volkswagen Golf R | All Trims | All Engines |
