Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13532 |

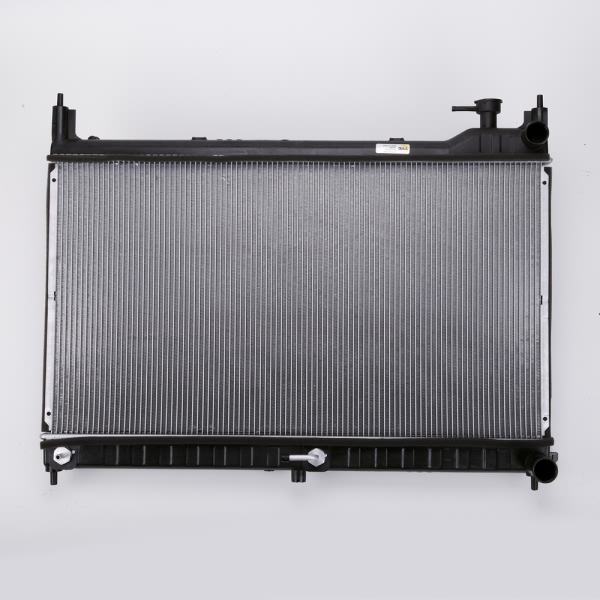

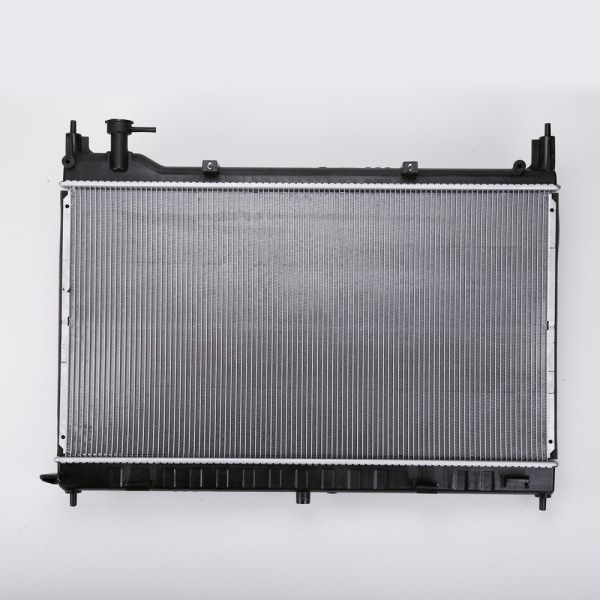

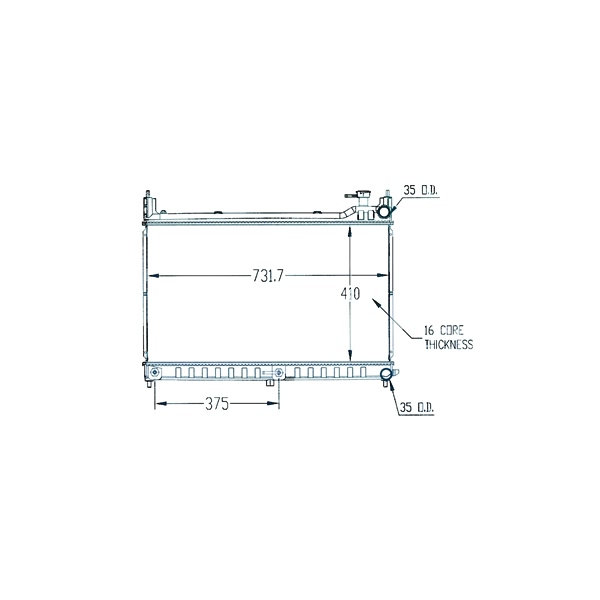

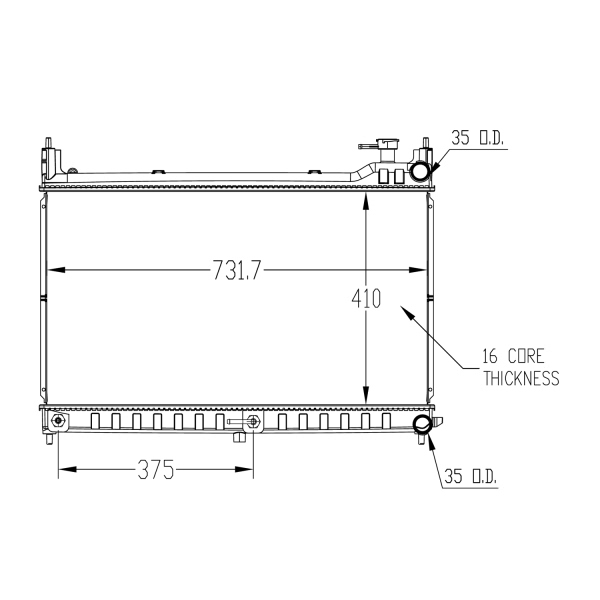

| Part Description | Engine Coolant Radiator |
| Bottom Header | 1.99x29.94 |
| Core Height | 28.81 |
| Core Length | 16.14 |
| Core Material | Aluminum |
| Core Thickness | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 92 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |

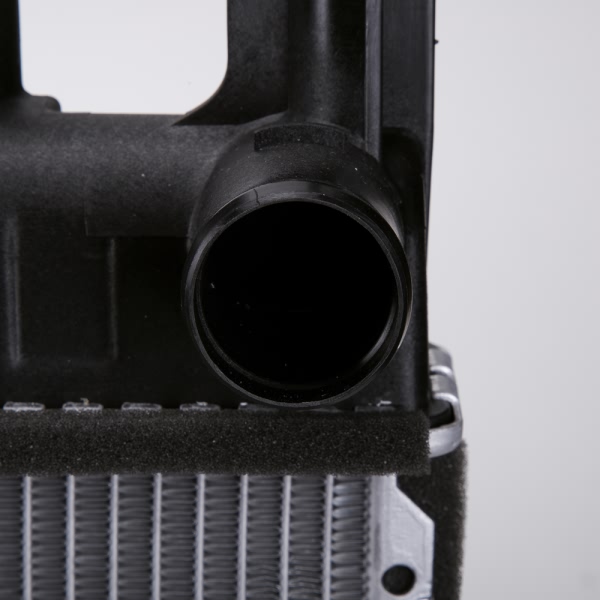

| Inlet Diameter | 1.38 |
| No. Of Rows | 1 |
| UPC | 762405259123 |
| OE Part Number | 21460-5AA0A |
| Outlet Connection Type | Hose Clamp |

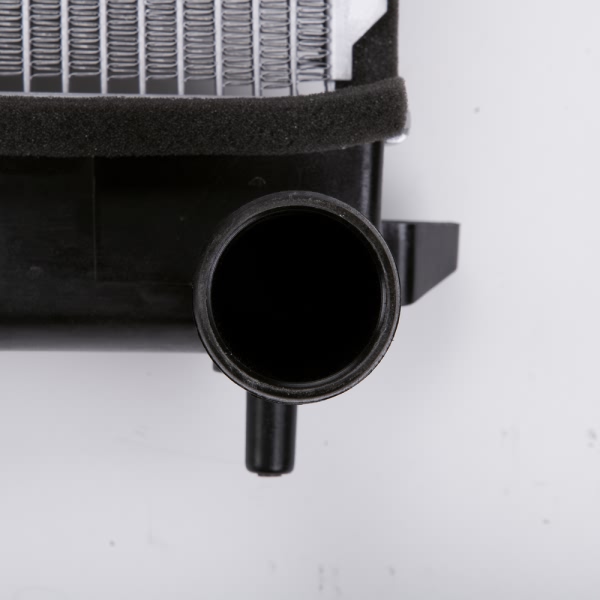

| Outlet Diameter | 1.38 |
| TOC Distance (IN) | 14.76 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| TOC Outlet Diameter (IN) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.99x29.94 |
| Total Fin Row Count | 94 |
| Total Tube Count | 93 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 13 |
| Tube Width x Height | 16x1.5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015-2019 Nissan Murano | All Trims | 6 Cyl 3.5L |
