Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13533 |

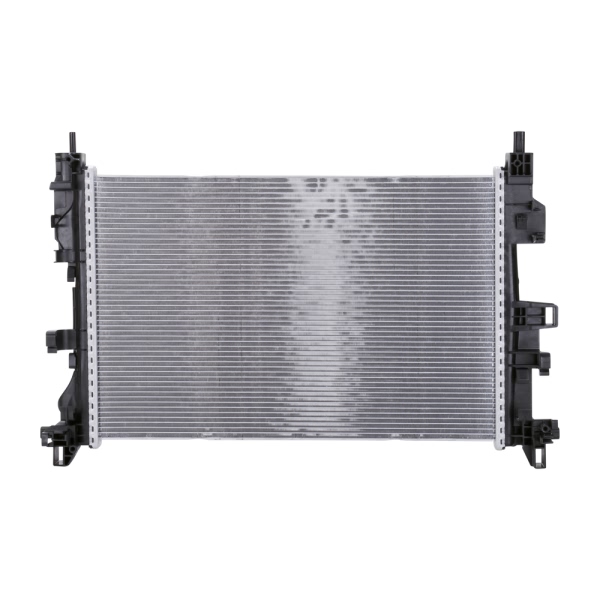

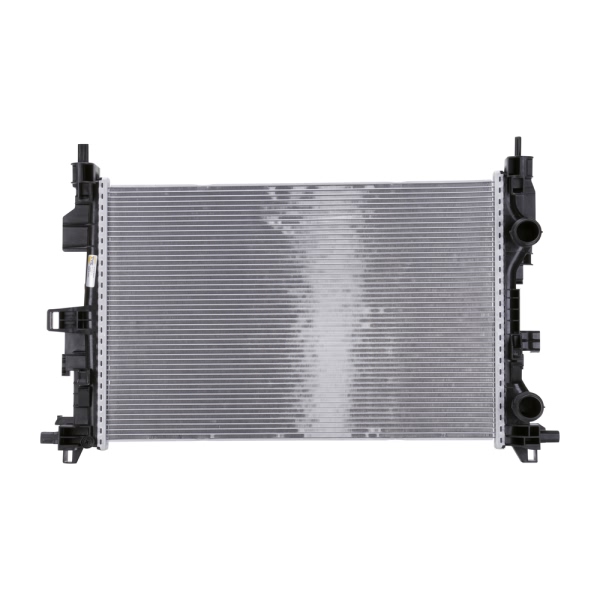

| Part Description | Engine Coolant Radiator |

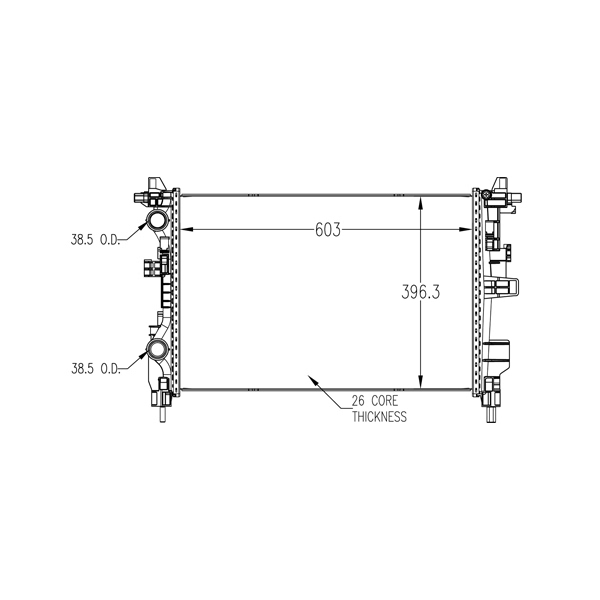

| Bottom Header | 1.77x16.94 |
| Core Height | 15.6 |
| Core Length | 23.74 |
| Core Material | Aluminum |
| Core Thickness | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 107 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 1.9 |
| Flow Configuration | Crossflow |

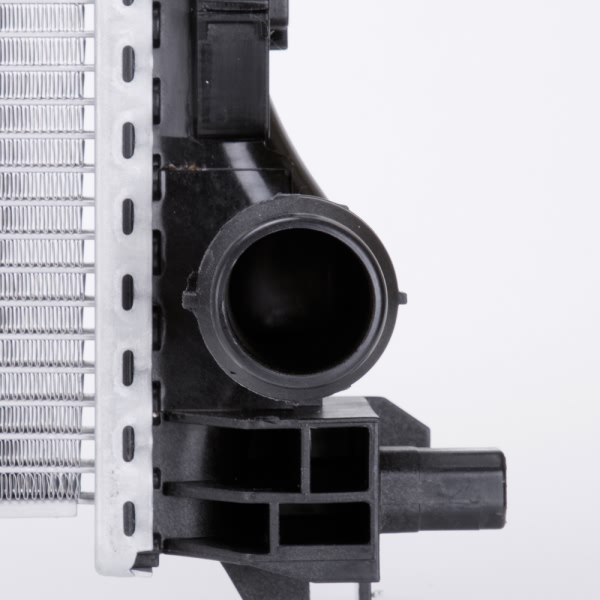

| Inlet Connection Type | Quick Connect (Spring Lock) |
| Inlet Diameter | 1.52 |
| No. Of Rows | 1 |
| UPC | 762405259147 |
| OE Part Number | 68247208AA |
| Outlet Connection Type | Quick Connect (Spring Lock) |
| Outlet Diameter | 1.52 |
| Top Header | 1.77x16.94 |
| Total Fin Row Count | 51 |
| Total Tube Count | 50 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 13 |
| Tube Width x Height | 26x1.5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Fiat 500X | All Trims | 4 Cyl 2.4L |
| 2015-2020 Jeep Renegade | All Trims | 4 Cyl 2.4L |
| 2015-2020 Ram ProMaster City | All Trims | 4 Cyl 2.4L |
