Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13534 |

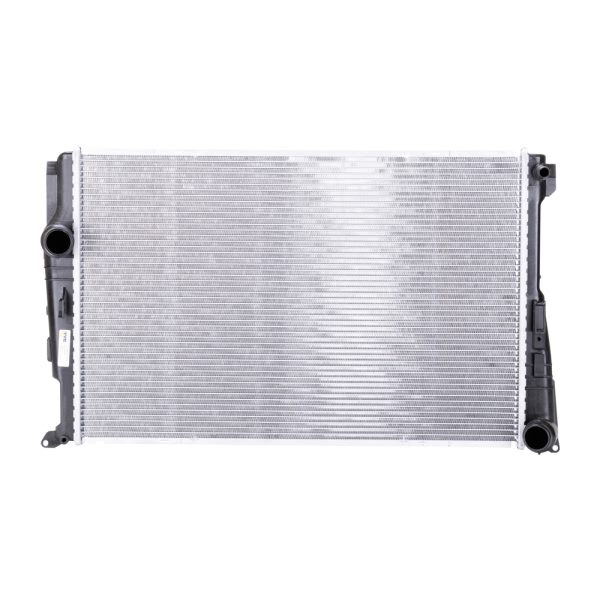

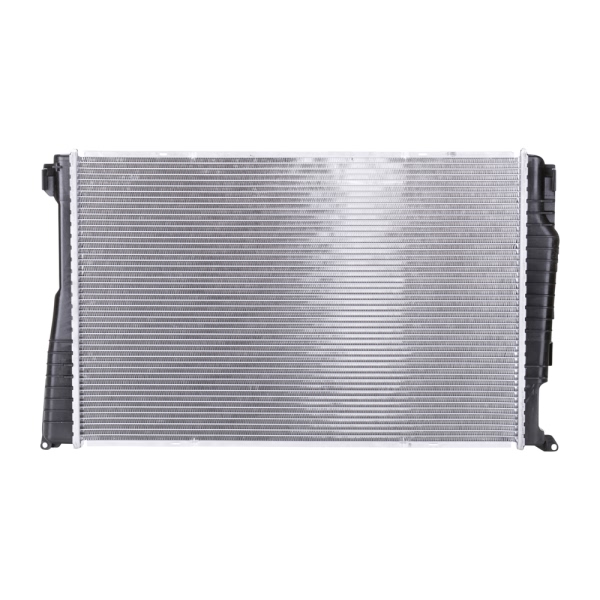

| Part Description | Engine Coolant Radiator |
| Bottom Header | 2.1x16.08 |
| Core Height | 15.3 |
| Core Length | 23.58 |
| Core Material | Aluminum |
| Core Thickness | 1.26 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Quick Connect (Spring Lock) |
| Inlet Diameter | 1.52 |
| No. Of Rows | 1 |
| UPC | 762405259154 |
| OE Part Number | 17118623369 |
| Outlet Connection Type | Quick Connect (Spring Lock) |
| Outlet Diameter | 1.52 |
| Top Header | 2.1x16.08 |
| Total Fin Row Count | 50 |
| Total Tube Count | 49 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 13 |
| Tube Width x Height | 32x1.5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2017 BMW X3 | xDrive28i | 4 Cyl 2.0L |
| 2015 BMW X3 | xDrive28i X Line | 4 Cyl 2.0L |
| 2015-2017 BMW X3 | sDrive28i | 4 Cyl 2.0L |
| 2015-2017 BMW X3 | xDrive28d | 4 Cyl 2.0L |
| 2015-2018 BMW X4 | xDrive28i | 4 Cyl 2.0L |
| 2017 BMW X4 | xDrive28i X Line | 4 Cyl 2.0L |
