Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13588 |

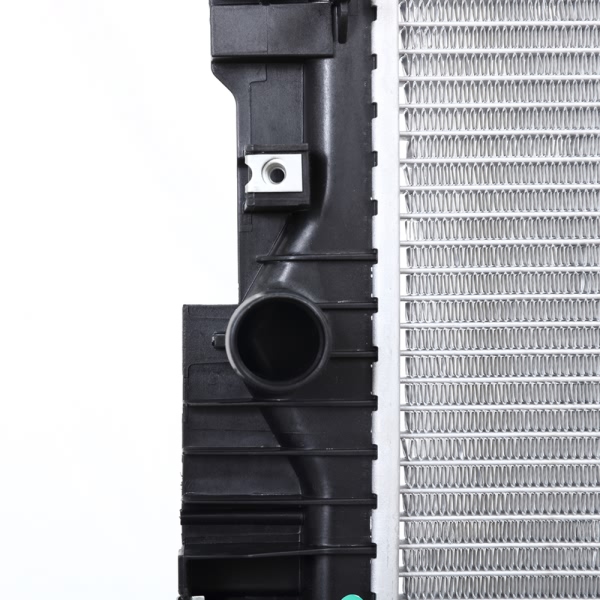

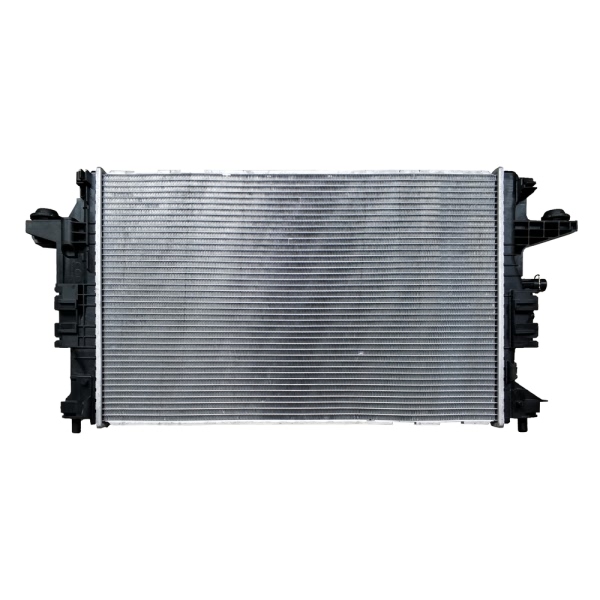

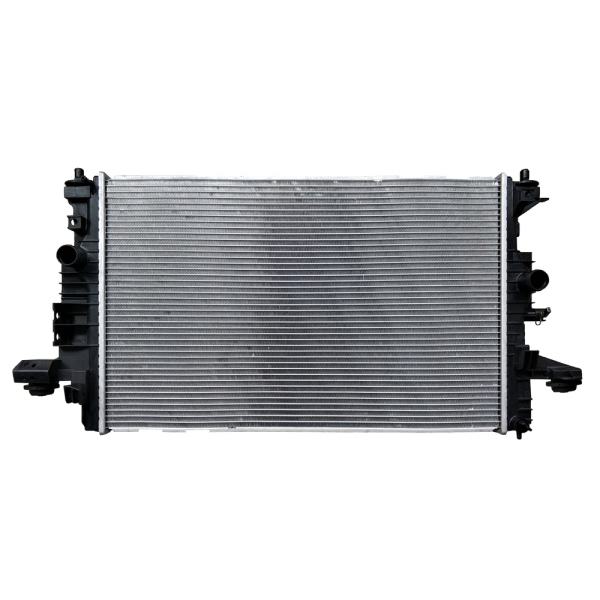

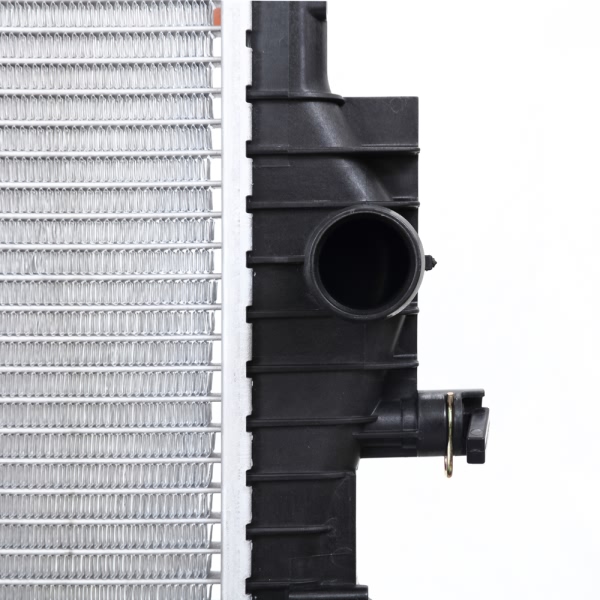

| Part Description | Engine Coolant Radiator |
| Bottom Header | 1.39x17.42 |
| Core Height | 16.46 |
| Core Length | 26.57 |
| Core Material | Aluminum |
| Core Thickness | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter | 1.36 |
| No. Of Rows | 1 |
| UPC | 762405912028 |
| OE Part Number | GM3010591, 23373819 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter | 1.36 |
| Top Header | 1.39x17.42 |
| Total Fin Row Count | 42 |
| Total Tube Count | 41 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width x Height | 16x2 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2019 Chevrolet Volt | All Trims | All Engines |
