Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 13663 |

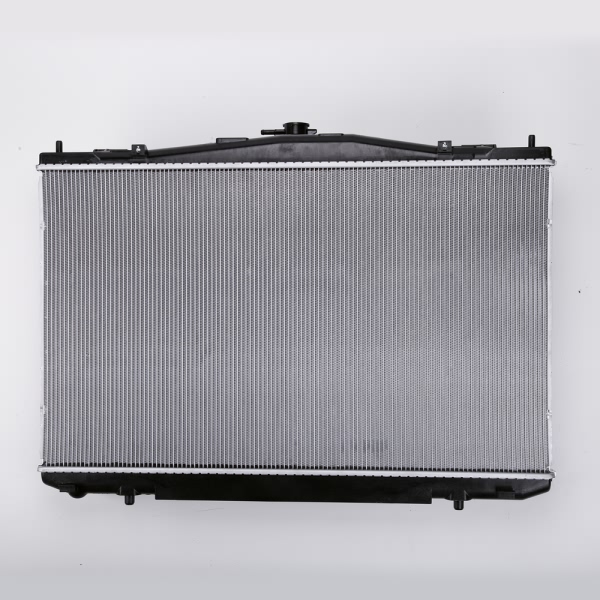

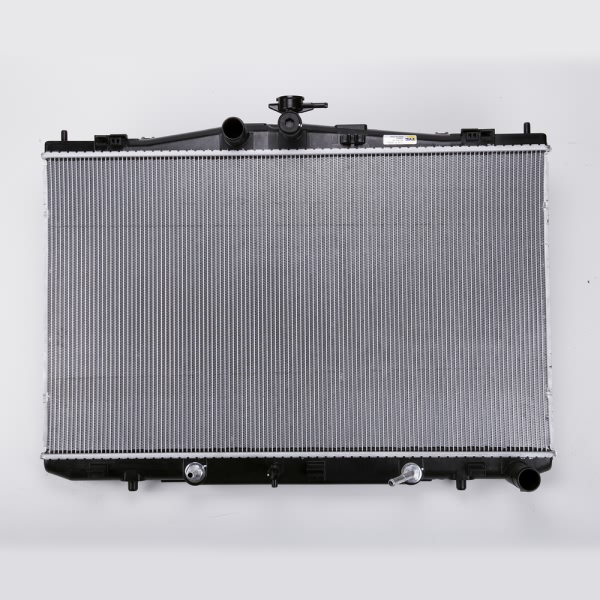

| Part Description | Engine Coolant Radiator |
| Bottom Header | 1.87x30.47 |
| Core Height | 29.88 |
| Core Length | 17.68 |
| Core Material | Aluminum |
| Core Thickness | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter | 1.36 |
| No. Of Rows | 1 |
| UPC | 762405911939 |
| OE Part Number | 16041-0P280, TO3010360 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter | 1.36 |
| TOC Distance (IN) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| TOC Outlet Diameter (IN) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.87x30.47 |
| Total Fin Row Count | 117 |
| Total Tube Count | 116 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 16 |
| Tube Width x Height | 26x1.5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017-2020 Toyota Sienna | All Trims | 6 Cyl 3.5L |
