Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 1494 |

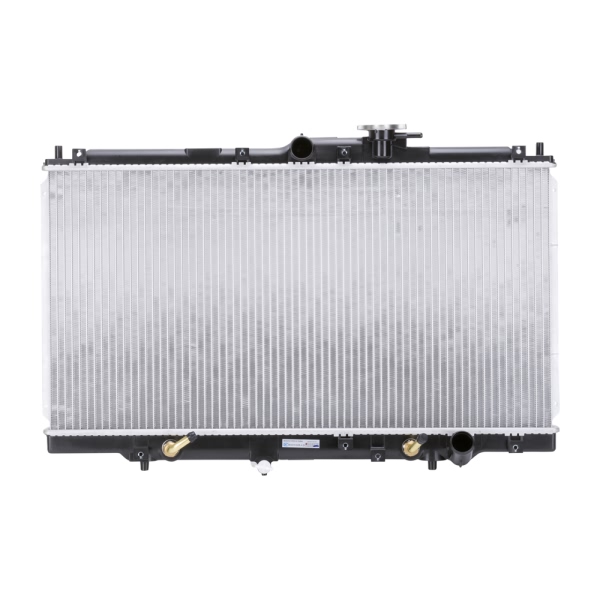

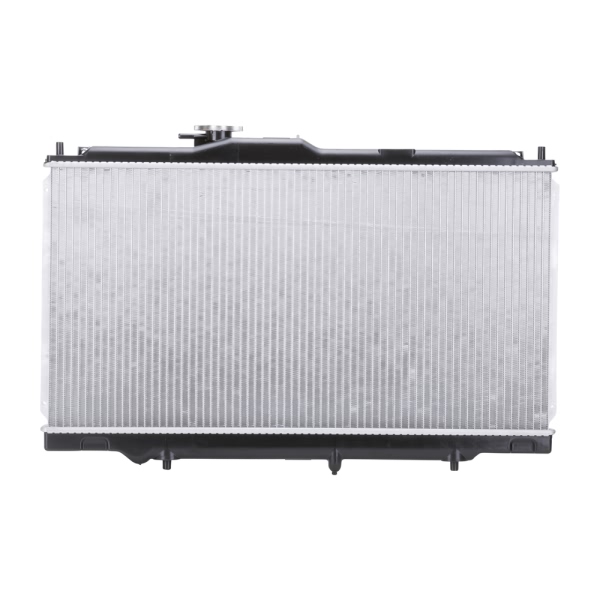

| Part Description | Engine Coolant Radiator |
| Accessories Included | Pressure cap |
| Bottom Header | 2.02x27.66 |
| Core Height (in) | 26.69 |
| Core Length (in) | 13.78 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4"): 73 | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |

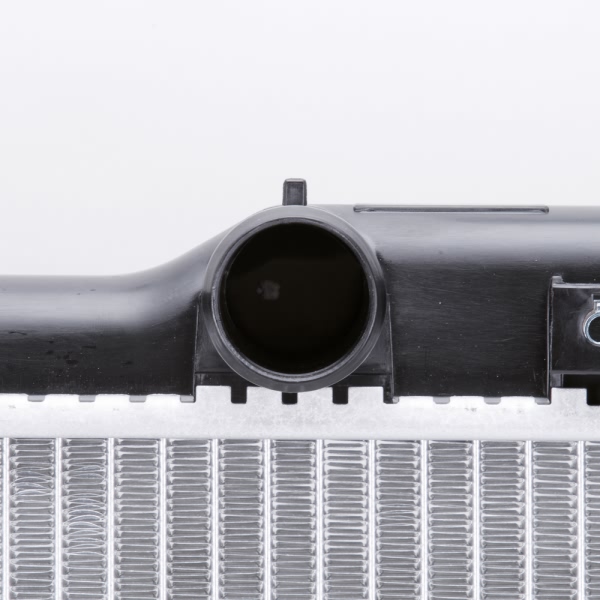

| Inlet Connection Type | Hose Clamp |

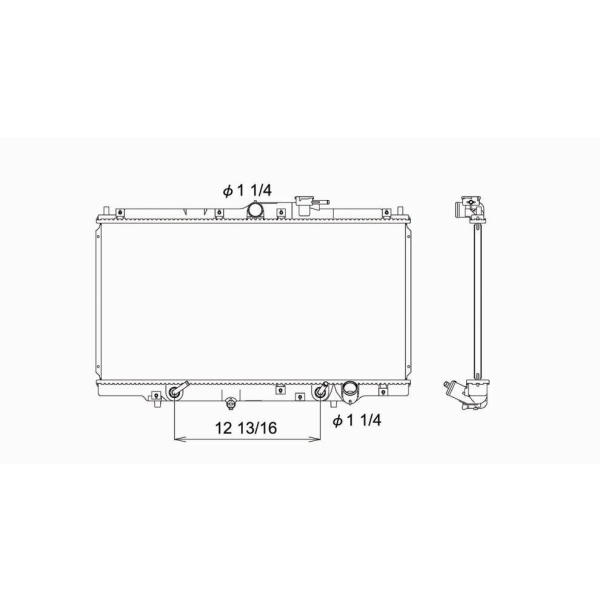

| Inlet Diameter (In) | 1.26 |
| No. Of Rows | 1 |
| UPC | 762405250670 |
| OE Part Number | 19010-P5M-903, AC3010112, HO3010142, 19010-P0H-A51, 19010-P0F-J52 |

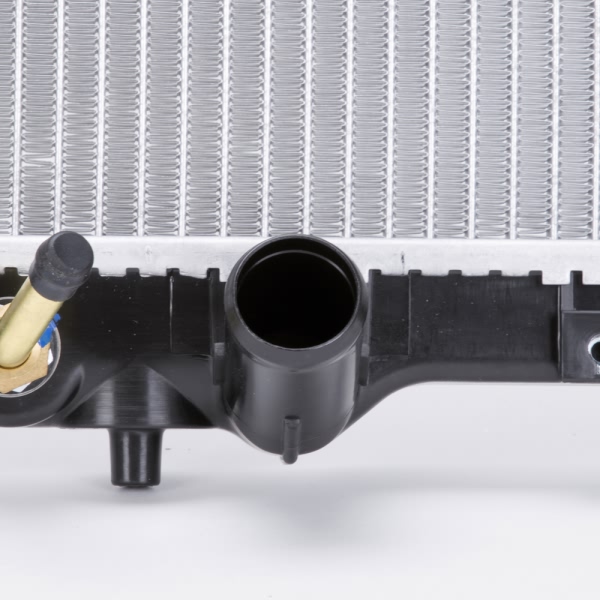

| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.26 |
| Remarks | DENSO TYPE |
| TOC Distance (IN) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| TOC Outlet Diameter (IN) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.43x27.66 |
| Total Fin Row Count | 68 |
| Total Tube Count | 67 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (Every 4"): 10 | 10 |
| Tube Width x Height | 16x2 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997 Acura CL | All Trims | 4 Cyl 2.2L |
| 1998-1999 Acura CL | All Trims | 4 Cyl 2.3L |
| 1994-1997 Honda Accord | All Trims | 4 Cyl 2.2L |
| 1997-2001 Honda Prelude | All Trims | 4 Cyl 2.2L |
