Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 1996 |

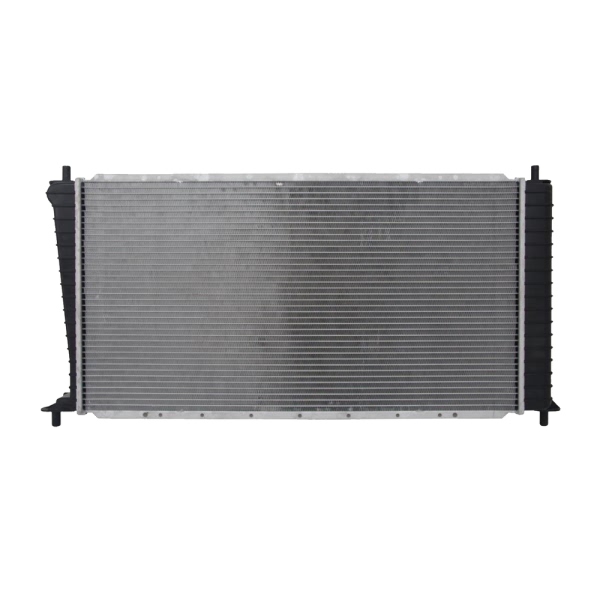

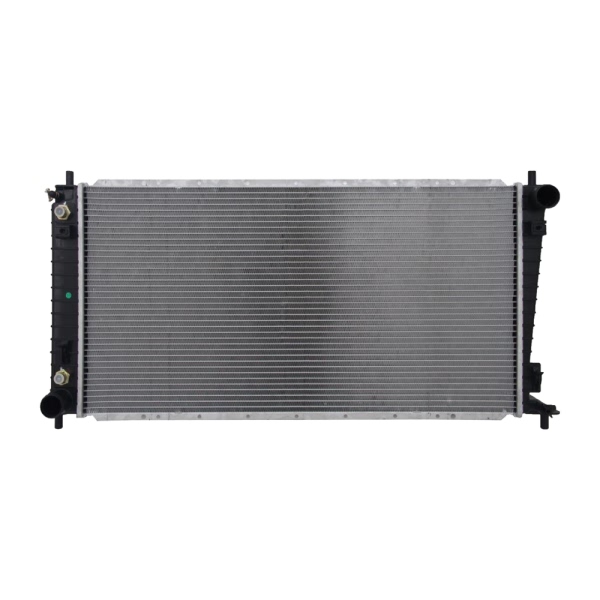

| Part Description | Engine Coolant Radiator |
| Bottom Header | 3.14x17.29 |
| Core Height | 16.81 |
| Core Length | 31.89 |
| Core Material | Aluminum |
| Core Thickness | 2.2 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 43 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 4.7 |
| Flow Configuration | Crossflow |

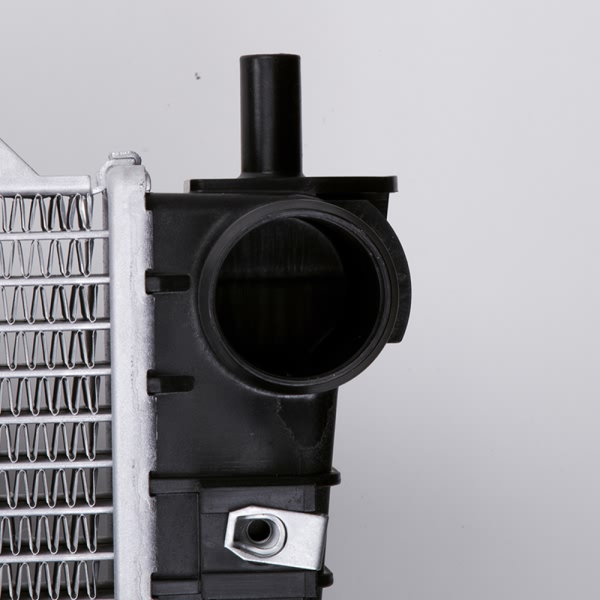

| Inlet Connection Type | Hose Clamp |
| Inlet Diameter | 1.77 |
| No. Of Rows | 1 |
| UPC | 762405911854 |
| OE Part Number | F75Z8005GA, FO3010156 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter | 1.77 |
| TOC Distance (IN) | 12.01 |

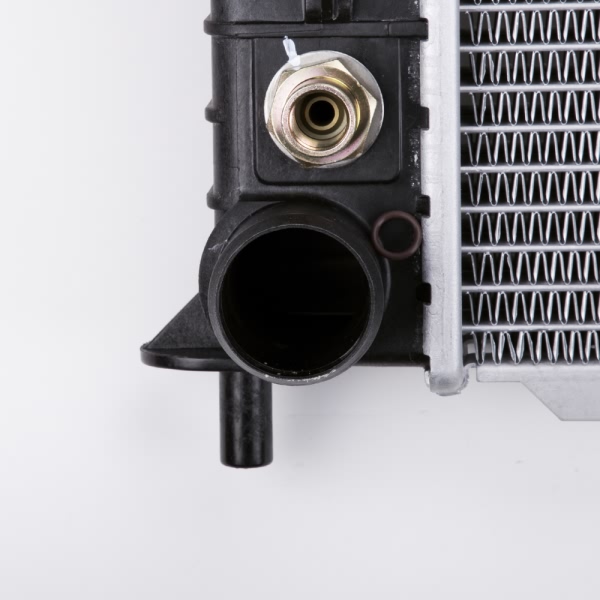

| Toc Inlet Diameter (in) | 5/8-18UNF |
| Toc Inlet Type | Adapter |
| TOC Outlet Diameter (IN) | 5/8-18UNF |
| Toc Outlet Type | Adapter |
| Top Header | 3.14x17.29 |
| Total Fin Row Count | 39 |
| Total Tube Count | 38 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width x Height | 26x2 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-1998 Ford F-150 | All Trims | 8 Cyl 5.4L |
| 1997-1998 Ford F-250 | All Trims | 8 Cyl 5.4L |
