Vehicle Specific

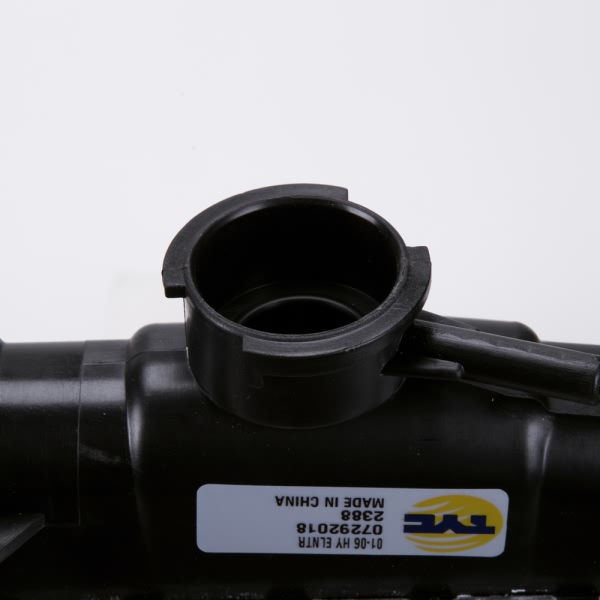

Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 2388 |

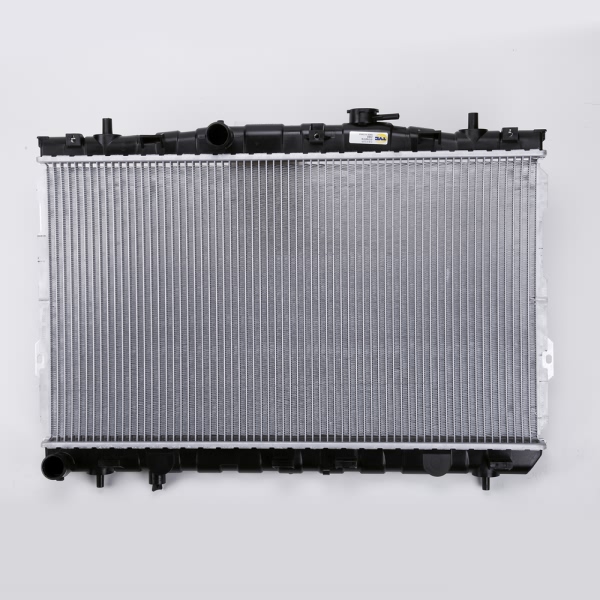

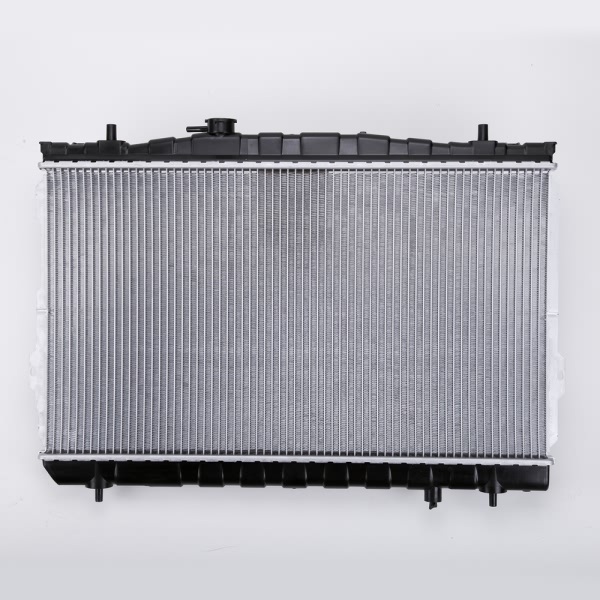

| Part Description | Engine Coolant Radiator |

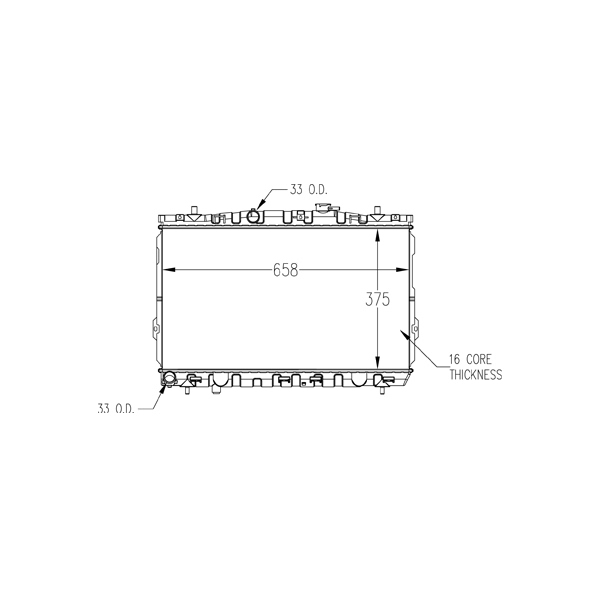

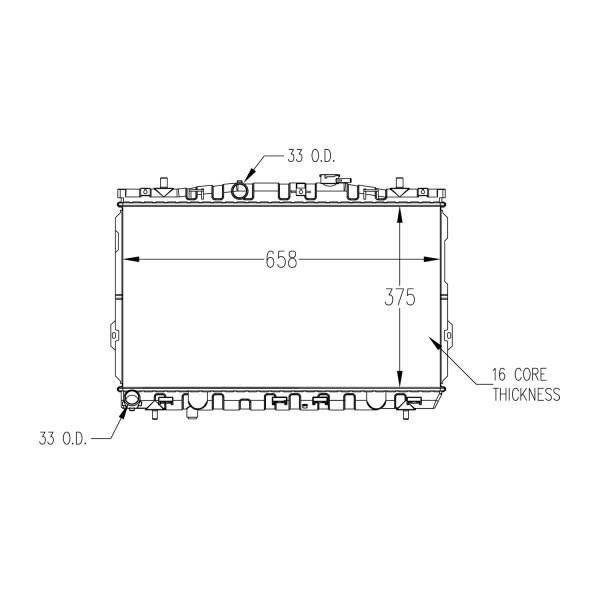

| Bottom Header | 1.97x26.58 |
| Core Height | 25.91 |
| Core Length | 14.76 |
| Core Material | Aluminum |
| Core Thickness | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |

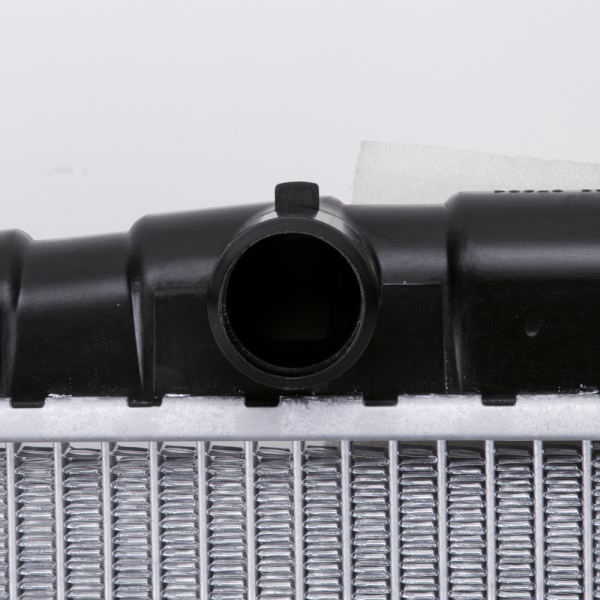

| Inlet Connection Type | Hose Clamp |
| Inlet Diameter | 1.30 |
| No. Of Rows | 1 |
| UPC | 762405911861 |
| OE Part Number | 253102C116 |

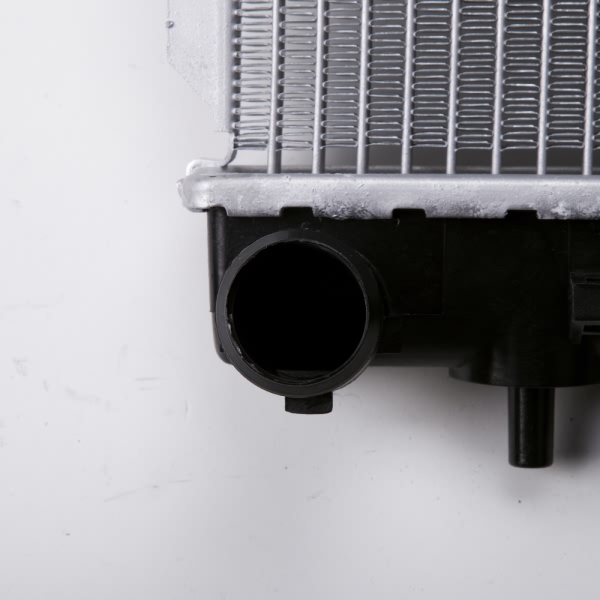

| Outlet Connection Type | Hose Clamp |
| Outlet Diameter | 1.30 |
| Top Header | 1.97x26.58 |
| Total Fin Row Count | 66 |
| Total Tube Count | 65 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width x Height | 16x2 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2006 Hyundai Elantra | All Trims | All Engines |
| 2003-2008 Hyundai Tiburon | All Trims | 6 Cyl 2.7L |
