Vehicle Specific
Check if it fits by entering your vehicle info| Brand | TYC |
| Part Number | 2520 |

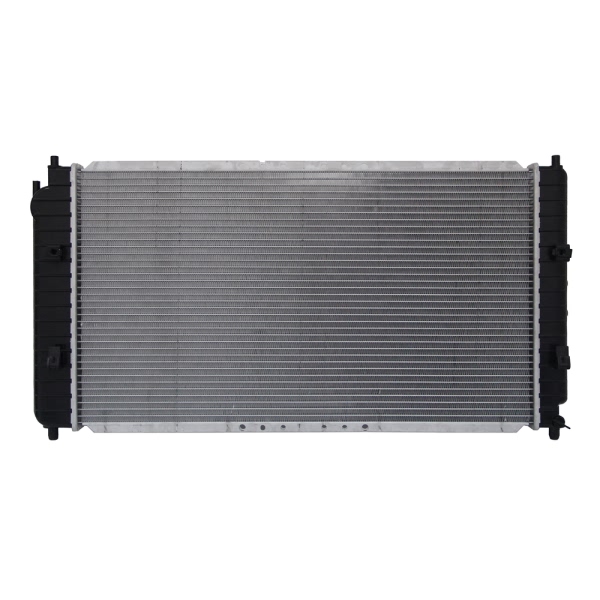

| Part Description | Engine Coolant Radiator |
| Bottom Header | 2.01x15.49 |
| Core Height (in) | 14.49 |
| Core Length (in) | 25.98 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| EOC (Yes/No) | No |
| Fin Count (every 4"): 73 | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (In) | 1.30 |
| No. Of Rows | 1 |
| UPC | 762405912202 |
| OE Part Number | 22666459, GM3010418 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.30 |
| TOC (Yes/No) | Yes |
| TOC Distance (IN) | 11.50 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick Connect |
| TOC Outlet Diameter (IN) | 0.37 |
| Toc Outlet Type | Quick Connect |
| TOC type | Plate Oil Cooler |
| Top Header | 2.01x15.49 |
| Total Fin Row Count | 37 |
| Total Tube Count | 36 |
| Tube Count (Every 4"): 10 | 10 |
| Tube Width x Height | 16x2 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Chevrolet Classic | All Trims | 4 Cyl 2.2L |
| 2002-2004 Oldsmobile Alero | All Trims | 4 Cyl 2.2L |
| 2002-2005 Pontiac Grand Am | All Trims | 4 Cyl 2.2L |
