Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 47671 |

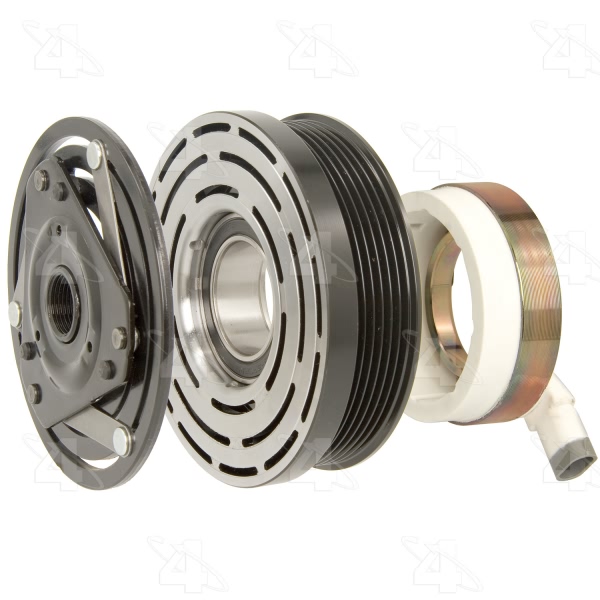

| Part Description | A C Compressor Clutch |
| Belt Type | Serpentine |
| Belt Width IN | 0.875 |
| Can Size | w/ Coil |
| Clutch Maximum Diameter | 5.000 |
| Coil | w/ Coil |
| Coil Number | [48260] / Clutch Assembly |
| Coil Voltage | 12 |
| Color | Black |
| Distance From Clutch To Mounting Flange | 1.9375 |
| Groove | 6 |
| Hub Number | [48240] / Clutch Assembly |
| Lead Wire | One Piece Coil |
| Material | Steel |
| Meets / Exceeds OEM | Yes |
| Mounting Type | Press Fit |
| Pulley Type | K |
| Rotation | CCW-CW |
| Style | Frigidaire/Harrison R4 Radial |
| Thermal Or Non Thermal | NR |
| UPC | 096361476714 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1990-1992 Cadillac Brougham | All Trims | All Engines |
| 1992 Cadillac Commercial Chassis | Brougham | 8 Cyl 5.7L |
| 1990-1992 Chevrolet Camaro | All Trims | All Engines |
| 1992-1993 Chevrolet S10 | All Trims | 6 Cyl 2.8L |
| 1992-1993 GMC Sonoma | All Trims | 6 Cyl 2.8L |
| 1989 Pontiac Firebird | All Trims | 6 Cyl 2.8L |
| 1990-1992 Pontiac Firebird | All Trims | All Engines |
