Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 33963 |

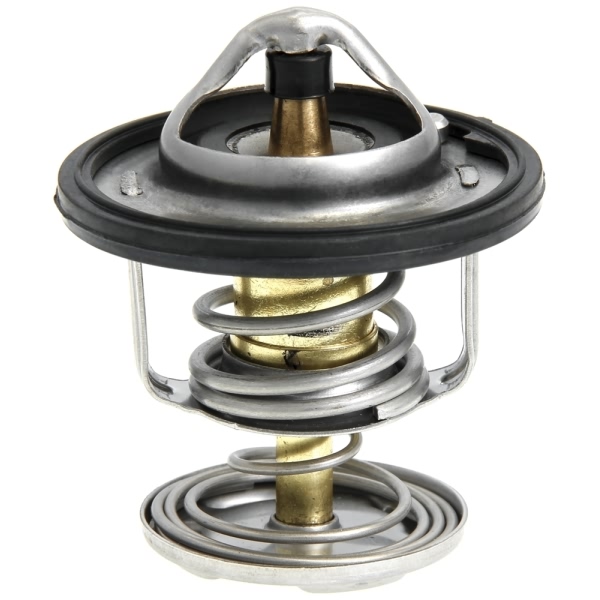

| Part Description | Heavy Duty Engine Coolant Thermostat |
| By-Pass Flange Diameter | 1.5" |
| Depth from Flange | 1.89" |
| Design | Bottom By-Pass |
| Flange Diameter | 2.12" |
| Height from Flange | 0.86" |
| Includes Installation Tool | No |
| Jiggle Pin/Check Valve | Yes |
| Material | Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| Seal Type | O-Ring |
| Temperature (C) | 86 |
| Temperature (F) | 187 |
| Total Height | 2.75" |
| Type | Heavy-Duty Thermostat |
| UPC | 770075225980 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Buick Rainier | All Trims | 8 Cyl 5.3L |
| 2004-2005 Cadillac CTS | All Trims | 8 Cyl 5.7L |
| 2002-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
| 2002-2006 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2003-2006 Cadillac Escalade ESV | All Trims | 8 Cyl 6.0L |
| 2002-2006 Cadillac Escalade EXT | All Trims | 8 Cyl 6.0L |
| 2002-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
| 1998-2002 Chevrolet Camaro | All Trims | 8 Cyl 5.7L |
| 2004 Chevrolet Cargo Van | All Trims | 8 Cyl 6.0L |
| 1997-2004 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
