Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 33768 |

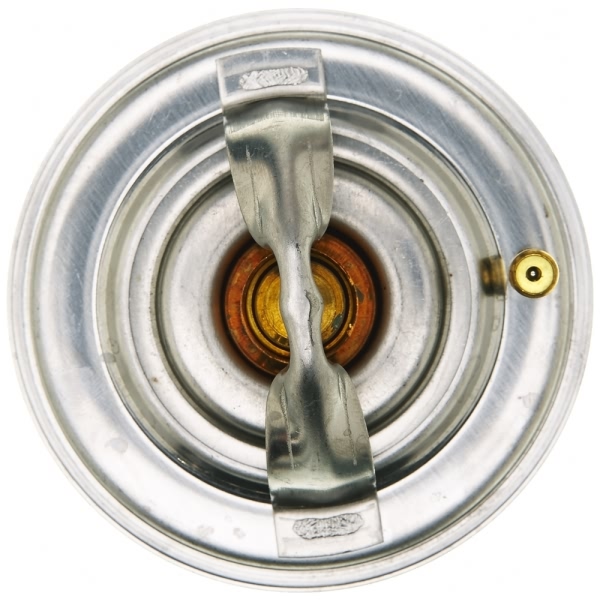

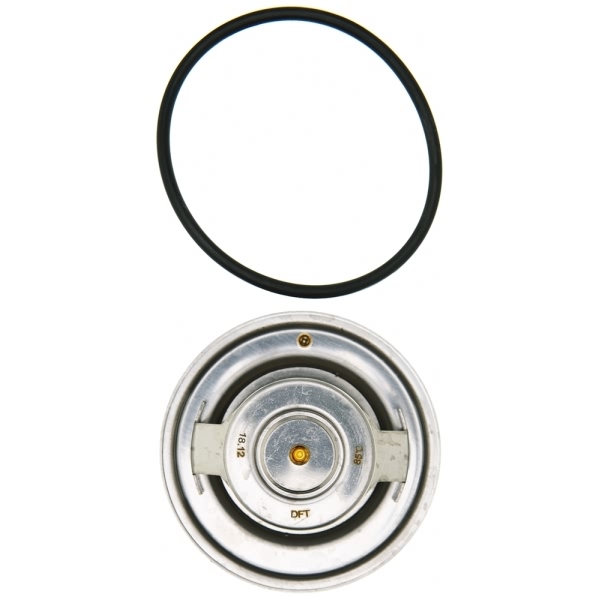

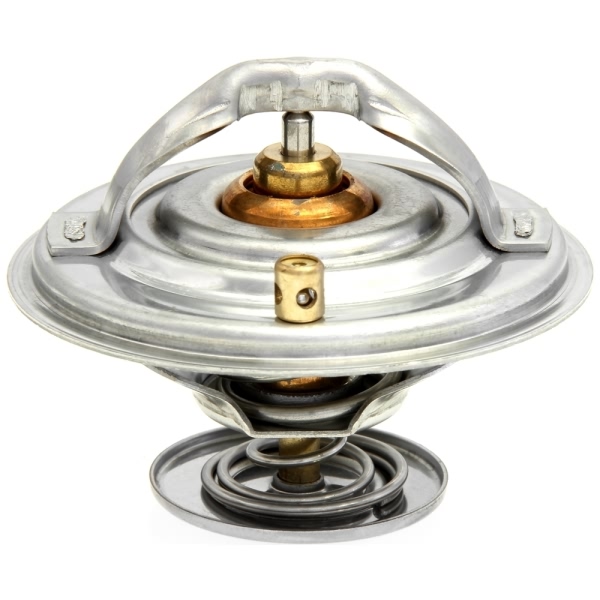

| Part Description | OE Type Engine Coolant Thermostat |
| By-Pass Flange Diameter | 1.3" |
| Depth from Flange | 1.27" |
| Design | Bottom By-Pass |
| Flange Diameter | 3.29" |
| Height from Flange | 0.87" |
| Includes Installation Tool | No |
| Jiggle Pin/Check Valve | Yes |
| Material | Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| OE Comparison Rating | OE Performance |
| Seal Type | O-Ring |
| Temperature (C) | 85 |
| Temperature (F) | 185 |
| Total Height | 2.24" |
| Type | OE Type Thermostat |
| UPC | 072053052701 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1995 BMW 530i | All Trims | 8 Cyl 3.0L |
| 1994-1995 BMW 540i | All Trims | 8 Cyl 4.0L |
| 1993-1995 BMW 740i | All Trims | 8 Cyl 4.0L |
| 1993-1995 BMW 740iL | All Trims | 8 Cyl 4.0L |
| 1994 BMW 750iL | All Trims | 12 Cyl 5.0L |
| 1995 BMW 750iL | All Trims | 12 Cyl 5.4L |
| 1994-1995 BMW 840Ci | All Trims | 8 Cyl 4.0L |
| 1994-1995 BMW 850CSi | All Trims | 12 Cyl 5.6L |
| 1996-1998 BMW 850Ci | All Trims | 12 Cyl 5.4L |
