Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 34815 |

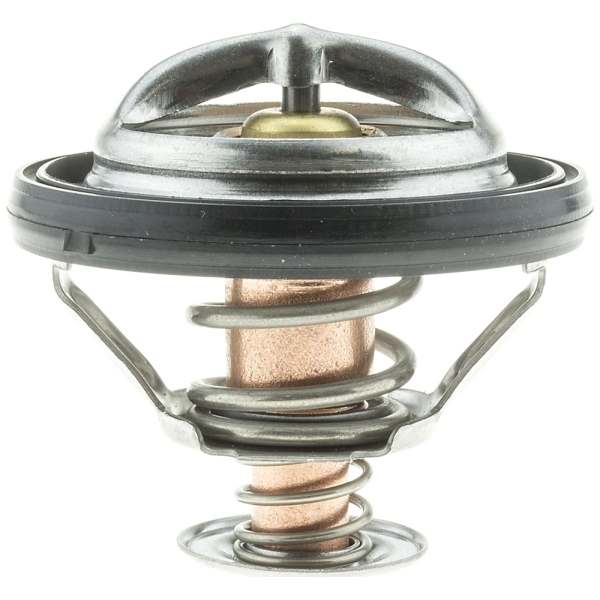

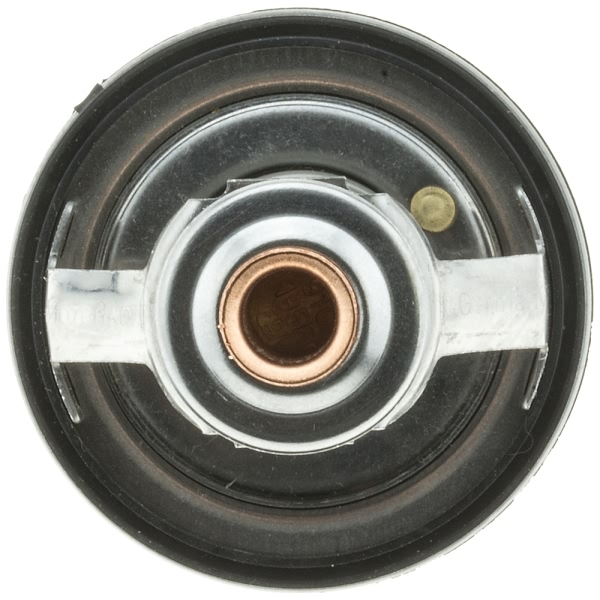

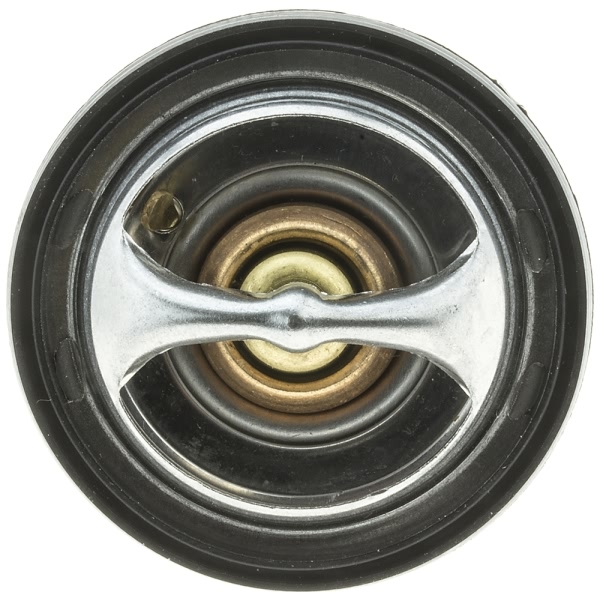

| Part Description | OE Type Engine Coolant Thermostat |
| By-Pass Flange Diameter | 0.99" |
| Depth from Flange | 1.4" |
| Design | Bottom By-Pass |
| Flange Diameter | 2.12" |
| Height from Flange | 0.72" |
| Includes Installation Tool | No |
| Jiggle Pin/Check Valve | Yes |
| Material | Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| OE Comparison Rating | OE Performance |
| Seal Type | O-Ring |
| Temperature (C) | 91 |
| Temperature (F) | 195 |
| Total Height | 2.12" |
| Type | OE Type Thermostat |
| UPC | 770075686316 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2010 Volvo C30 | All Trims | 5 Cyl 2.4L |
| 2007-2013 Volvo C30 | All Trims | 5 Cyl 2.5L |
| 2007-2013 Volvo C70 | All Trims | 5 Cyl 2.5L |
| 2004-2010 Volvo S40 | All Trims | 5 Cyl 2.4L |
| 2004-2012 Volvo S40 | All Trims | 5 Cyl 2.5L |
| 2012-2016 Volvo S60 | All Trims | 5 Cyl 2.5L |
| 2016 Volvo S60 Cross Country | All Trims | 5 Cyl 2.5L |
| 2013-2014 Volvo V40 Cross Country | All Trims | 5 Cyl 2.5L |
| 2005-2010 Volvo V50 | All Trims | 5 Cyl 2.4L |
| 2005-2011 Volvo V50 | All Trims | 5 Cyl 2.5L |
