Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 34198S |

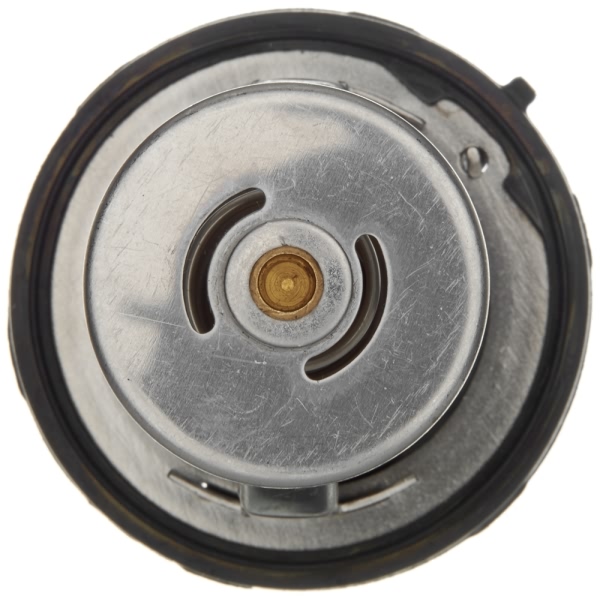

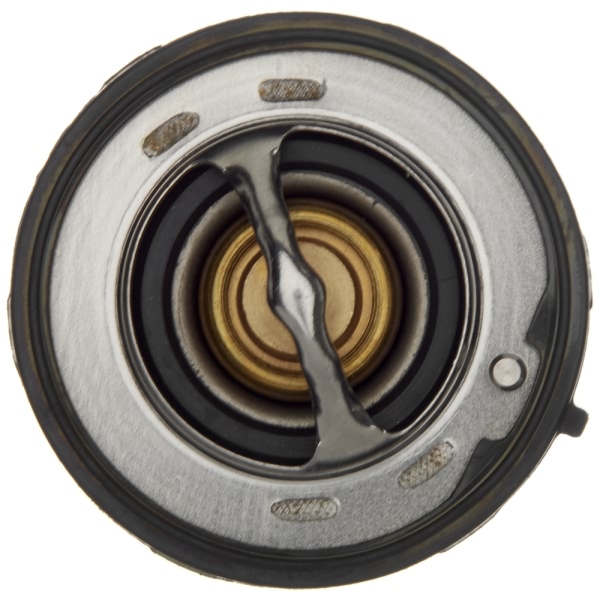

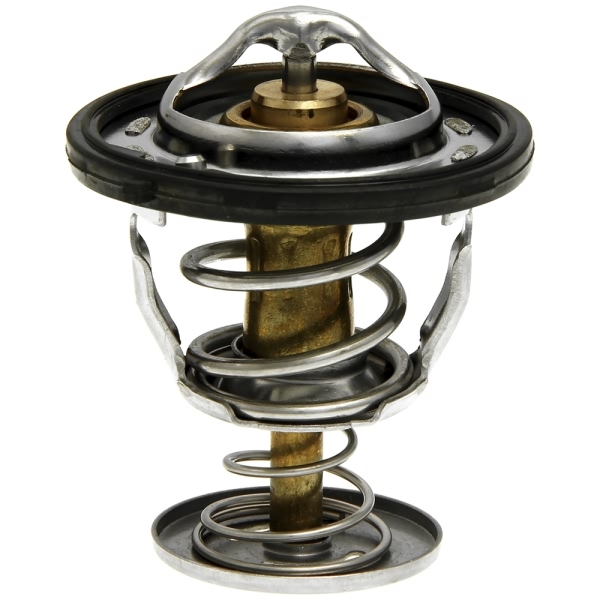

| Part Description | Premium Engine Coolant Thermostat |
| By-Pass Flange Diameter | 1.5 |
| Design | Bottom By-Pass |
| Height | 2.96 |
| Height Between Flanges | 2.2 |
| Height from Flange | .76 |
| Includes Installation Tool | No |
| Jiggle Pin Weep Hole | Yes |
| Material | Stainless Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| Seal Type | O-Ring |
| Sealing Flange Outside Diameter | 2.2 |
| Start to Open Temperature | 187 or 86 |
| UPC | 770075745310 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007 Buick Rainier | All Trims | 8 Cyl 5.3L |
| 2009-2015 Cadillac CTS | All Trims | 8 Cyl 6.2L |
| 2007-2014 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2009-2013 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2007-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2007-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
| 2007-2009 Chevrolet Avalanche | All Trims | 8 Cyl 6.0L |
| 2007-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
| 2010-2015 Chevrolet Camaro | All Trims | 8 Cyl 6.2L |
| 2014-2015 Chevrolet Camaro | All Trims | 8 Cyl 7.0L |
