Genuine GM 20834824
Harness

Customer Questions & Expert Answers (2)

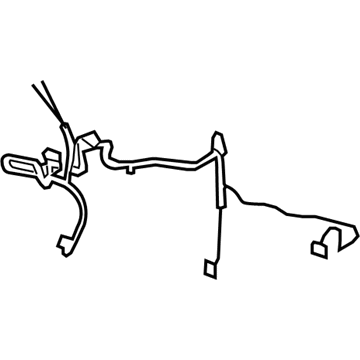

GM 20834824 Harness
GM 20834824 Harness
GM 20834824 Harness
  • Part Description
    Harness Assembly-A/C Module Wiring
  • Replaces
    20760602, 15780378
  • Brand
    GM
  • Manufacturer's Notes
    This part is discontinued.
Select vehicle to make sure this part fits
Year
Make
Model
Or
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

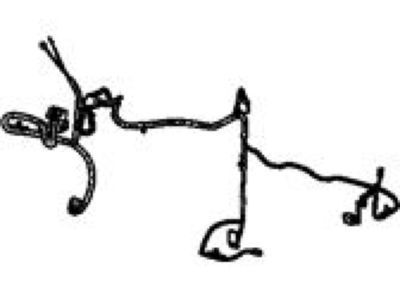

  • 20834824 Harness is Ref No. 23 in the diagram below

    2008 GMC Yukon XL 2500 A/C Evaporator & Heater Components Harness Diagram for 20834824
    The diagram listed above is for your reference. View diagram and OE catalog for your vehicle

    Related Parts for 20834824

  • Product Specifications

    BrandGenuine General Motors
    Manufacturer Part Number20834824
    Part DescriptionHarness Assembly-A/C Module Wiring
    Other DescriptionHarness
    Other NamesHarness, Wire Harness
    Item Dimensions13.5 x 4.2 x 4.3 inches
    Item Weight0.90 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces20760602, 15780378
    ManufacturerGeneral Motors
    SKU20834824
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    2007-2014 Cadillac Escalade8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.2L, 8 Cyl 6.2L Flex1/2 TON, EXT 1/2 TON, YUKON XL/DENALI XL/ESCALADE ESV, YUKON/DENALI/ESCALADE
    2007-2013 Chevrolet Avalanche8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L1/2 TON
    2007-2014 Chevrolet Silverado6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.2L Flex, 8 Cyl 6.6L DieselCREW CAB 1 TON, CREW CAB 1/2 TON, CREW CAB 6'6" BOX 3/4 TON, CREW CAB 8' BOX 3/4 TON, EXTENDED CAB 1 TON, EXTENDED CAB 5'8" BOX 1/2 TON, EXTENDED CAB 6'6" BOX 1/2 TON, EXTENDED CAB 6'6" BOX 3/4 TON, EXTENDED CAB 8' BOX 1/2 TON, EXTENDED CAB 8' BOX 3/4 TON, EXTENDED CAB CHASSIS 1 TON 161.5
    2007-2014 Chevrolet Suburban8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L, 8 Cyl 6.0L Flex1/2 TON, 3/4 TON
    2007-2014 Chevrolet Tahoe8 Cyl 4.8L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L, 8 Cyl 6.0L Flex4 DOOR 1/2 TON
    2007-2014 GMC Sierra6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.2L, 8 Cyl 6.2L Flex, 8 Cyl 6.6L Diesel1 TON CREW CAB, CREW CAB 1 TON, CREW CAB 1 TON 119.0, CREW CAB 1 TON 137.0, CREW CAB 1/2 TON, CREW CAB 6'6" BOX 3/4 TON, CREW CAB 8' BOX 3/4 TON, EXTENDED CAB 1 TON, EXTENDED CAB 5'8" BOX 1/2 TON, EXTENDED CAB 6'6" BOX 1/2 TON, EXTENDED CAB 6'6" BOX 3/4 TON, EXTENDED CAB 8' BOX 1/2 TON, EXTENDED CAB 8' BOX 3/4 TON, EXTENDED CAB CHASSIS 1 TON 161.5, EXTENDED CREW CAB 1 TON 161.5
    2007-2014 GMC Yukon8 Cyl 4.8L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.2L, 8 Cyl 6.2L Flex1/2 TON, 3/4 TON, XL 3/4 TON, YUKON XL/DENALI XL/ESCALADE ESV, YUKON/DENALI/ESCALADE
    2008-2009 Hummer H28 Cyl 6.2L, 8 Cyl 6.2L FlexPICKUP, SUV

  • Customer Questions & Expert Answers

    Q:
    Please provide the correct 20834824 for my car. Much appreciated.
    By Customer
    A:
    You can Select Your Car to see if 20834824 fits your car.
    By Bob
    GM Specialist
    Q:
    Please advise if my 2007 Chevrolet Tahoe can well fit 20834824.
    By Customer
    A:
    The part perfectly works with your vehicle.
    By Bob
    GM Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM 20834824 at AutoPartsPrime, Your Right Choice

  • The part number 20834824, Harness, is designed to fit specific GM vehicles. Here, we provide you with parts specifications and vehicle fitment information for your convenience. This part fits specific Cadillac Escalade. It fits Chevrolet Avalanche, Silverado, Tahoe. It also fits GMC Sierra, Yukon. This also fits Hummer H2. All OEM GM parts are manufactured by GM and guaranteed by GM's factory warranty. You can find diagrams here for your parts lookup.
