Genuine GM 84950709
Leaf Spring

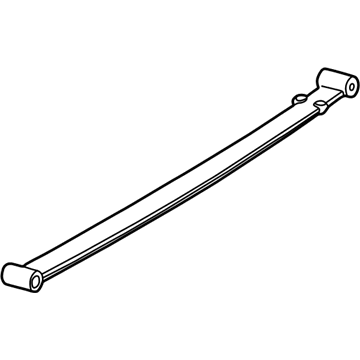

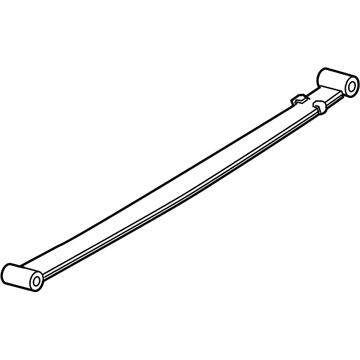

GM 84950709 Leaf Spring
  • Part Description
    Spring Assembly-Rear Leaf
  • Location
    Rear
  • Replaces
    22799640, 25756365, 84205633, 20905749, 15000027
  • Brand
    GM
  • Manufacturer's Notes
    This part is discontinued.
Select vehicle to make sure this part fits
Year
Make
Model
Or
  • Related Parts
  • Product Specifications
  • Vehicle Fitment

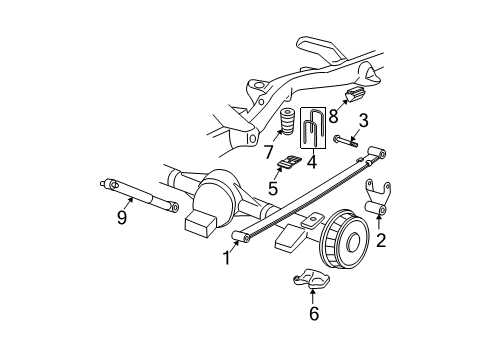

  • 84950709 Leaf Spring is Ref No. 1 in the diagram below

    2004 GMC Savana 2500 Rear Suspension Leaf Spring Diagram for 84950709
    The diagram listed above is for your reference. View diagram and OE catalog for your vehicle

    Related Parts for 84950709

  • Product Specifications

    BrandGenuine General Motors
    Manufacturer Part Number84950709
    Part DescriptionSpring Assembly-Rear Leaf
    Other DescriptionLeaf Spring
    Other NamesLeaf Spring, Spring
    Item Dimensions66.8 x 4.0 x 3.1 inches
    Item Weight86.50 Pounds
    PositionRear
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces22799640, 25756365, 84205633, 20905749, 15000027
    Require Quantity2
    ManufacturerGeneral Motors
    SKU84950709
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    1996-2024 Chevrolet Express4 Cyl 2.8L Diesel, 6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L, 8 Cyl 6.6L Diesel3/4 TON CARGO EXPRESS, 3/4 TON CARGO SAVANA, 3/4 TON PASSENGER EXPRESS, 3/4 TON PASSENGER SAVANA, Van 3/4 Ton Cargo Express
    1996-2024 GMC Savana4 Cyl 2.8L Diesel, 6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L3/4 TON CARGO EXPRESS, 3/4 TON CARGO SAVANA, 3/4 TON PASSENGER EXPRESS, 3/4 TON PASSENGER SAVANA

OEM GM 84950709 at AutoPartsPrime, Your Right Choice

  • The part number 84950709, Leaf Spring, is designed to fit specific GM vehicles. Here, we provide you with parts specifications and vehicle fitment information for your convenience. This part fits specific Chevrolet Express. It fits GMC Savana. All OEM GM parts are manufactured by GM and guaranteed by GM's factory warranty. You can find diagrams here for your parts lookup.
