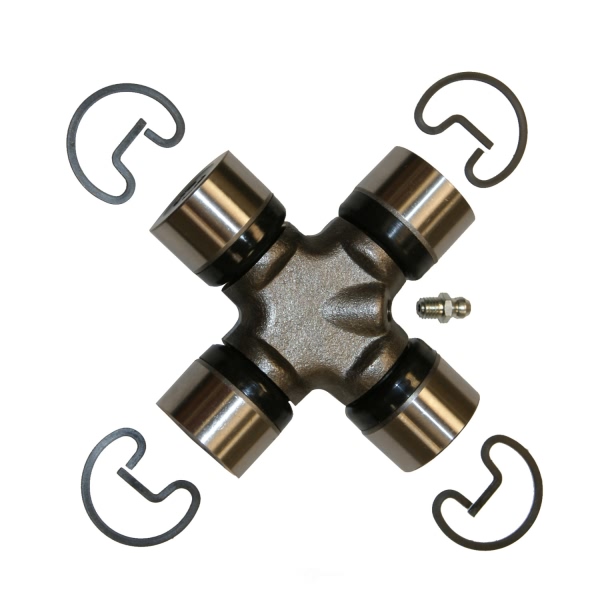

GMB® Grade Standard U-Joint 211-0178

GMB Grade Standard U-Joint 211-0178
$9.82
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandGMB
    Part Number211-0178
    Part DescriptionGrade Standard U-Joint
    Bearing Cap Axis 1 Diameter30.18
    Bearing Cap Axis 2 Diameter1.19
    Bearing Cap TypePlain
    Dimension1.188" Cap Diameter
    GreasableYes
    Height (Inch)1.30
    Length (Inch)3.50
    Length Axis 13.62
    Length Axis 23.62
    Lock Ring LocationExternal
    Lube Fitting LocationGrease Fitting in Cross
    MaterialSteel With Black Oxide Coating
    Mounting Hardware IncludedYes
    UPC083286122451
    Weight (Gross Pounds)1.30
    Width (Inch)3.50
    Warning: California’s Proposition 65
  • Features

    GMB Universal Joint are featured as follows:
    • Uses chrome-molybdenum alloy steel for extended life.
    • Has a snap ring that fits exactly.
    • Has heavy-duty bearing needles to ensure it can carry bigger loads.
    • Goes through multiple tests before being assembled to ensure their quality.
    • It also provides strap kits and U-bolt kits for easy installation.
    • Capable of high torque transmission at low frictional level.
    • These parts are cold-formed, hot forged, and machined to increase hardness as well as wear resistance.
    • Ground to design size within strict tolerance limits.
    • It is fitted with an oil seal and a dust cover to prevent foreign matter from getting into the inside journal area.
    • They are formulated from different grades or materials that can withstand extreme situations such as very high or very low temperatures.
    Made from an exclusive kind of Chrome-Molybdenum Alloy Steel, GMB Universal Joint 211-0178 guarantee exceptional resistance to rust and wear as well as are equipped with heavy-duty needle bearings ensuring increased load capacity. Maximum quality control measures have been put in place through multi-stage testing before assembly. These joint sets also include snap rings, strap kits and U-bolt kits for exact fit installation. A universal joint has a spider (cross) along with four roller grease filled bearings which handle high torque at low friction levels. After the components are hot forged or cold formed and machined, they are carburized in a furnace to make them more lasting against tear and wear. Severe tolerance is used while grinding the parts to design size, and an oil seal combined with dust cover guards the internal journal area from being invaded by foreign materials. GMB Universal Joint can be employed under various harsh conditions and it is important that they satisfy different needs of OEM customers like shaft sizes or other requirements.
    GMB is a renowned manufacturer with over 70 years in the making of first-class cooling and engine systems, drive parts for transmissions, axle parts, steering and suspension parts, driveline components, and bearings. The products of this company are suitable for micro cars, delivery vehicles and they cater for both local and foreign applications.
  • Vehicle Fitment

    Year Make Model Trim Engine
    2007-2008 Dodge Ram 1500All TrimsAll Engines
    2005-2006 Dodge Ram 2500All TrimsAll Engines
    2008-2010 Dodge Ram 2500All TrimsAll Engines
    2003-2010 Dodge Ram 3500All TrimsAll Engines
    2012-2018 Nissan NV1500All TrimsAll Engines
    2012-2018 Nissan NV2500All Trims6 Cyl 4.0L
    2012-2018 Nissan NV3500All Trims6 Cyl 4.0L
