Notes: W/O Rs, From 03/07/2011, 1.0 Liter;W/O Rs, From 03/07/2011, 2.0 Liter Dohc, W/O Flex Fuel; Focus; 1.0l; In Tank Pump;Focus; 2.0l; W/O Turbo; In Tank Pump; W/O Flex Fuel
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 9
Flow Rating: 60 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Lock Ring Included: No
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 1
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 464.0
Resistance Ohms Full: 50.0
Strainer Included: Yes
System Pressure: 65 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241271
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

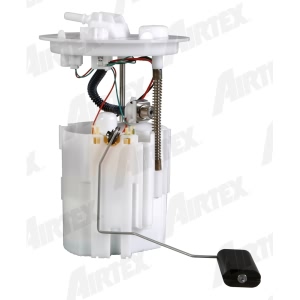

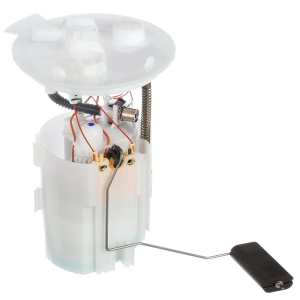

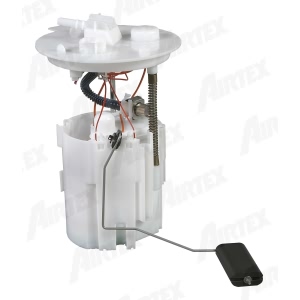

Part Description: 2017 Ford Focus Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 9
Flow Rating: 21 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Lock Ring Included: No
Maximum Pressure: 84.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 1
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 464.0
Resistance Ohms Full: 50.0
Strainer Included: Yes
System Pressure: 77 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241288
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2017 Ford Focus Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 26 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas/Flex
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 152.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 464.0
Resistance Ohms Full: 50.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604266809
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 2017 Ford Focus Fuel Pump Module Assembly
