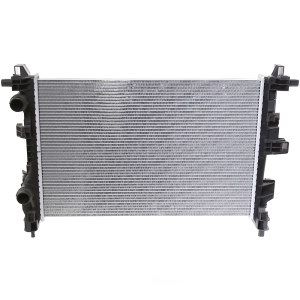

Name: TYC Engine Coolant Radiator 13533 for Fiat
Brand: TYC
SKU: TYC 13533
Price: 115.67 USD
Availability: InStock

Help Center

9 Products found

Show Item:

Sort by:

Recommended

Filter

Sort

View by

TYC® Engine Coolant Radiator for Fiat
PartNumber: 13533
Product Specifications
Bottom Header: 1.77x16.94
Core Height: 15.6
Core Length: 23.74
Core Material: Aluminum
Core Thickness: 1.02
Engine Oil Cooler Included: No
Fin Count (every 4"): 107
Fin Wave Height (in): 0.25
Find Wave Pitch: 1.9
Flow Configuration: Crossflow
Inlet Connection Type: Quick Connect (Spring Lock)
Inlet Diameter: 1.52
No. Of Rows: 1
OE Part Number: 68247208AA
Outlet Connection Type: Quick Connect (Spring Lock)
Outlet Diameter: 1.52
Top Header: 1.77x16.94
Total Fin Row Count: 51
Total Tube Count: 50
Transmission Oil Cooler Included: No
Tube Count (every 4"): 13
Tube Width x Height: 26x1.5
UPC: 762405259147
Part Description: Fiat Engine Coolant Radiator
More Info
$115.67
CSF® Engine Coolant Radiator for Fiat
PartNumber: 3801
Product Specifications
Bottom Hose Fitting (in): 1 1/2 Right
Box Height (in): 7 1/16
Box Length (in): 33
Box Weight (lbs): 8
Box Width (in): 22 3/16
Core Length: 24 7/16
Core Material: Aluminum
Core Thickness: 5/8
Core Width: 15
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 15 1/2
Inlet Width (in): 1 1/16
No. Of Rows: 1
Outlet Length(in): 15 1/2
Outlet Width: 1 1/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe.
Top Hose Fitting (in): 1 1/2 Left
UPC: 710353038017
Part Description: Fiat Engine Coolant Radiator
More Info
$80.27
Denso® Engine Coolant Radiator for Fiat
PartNumber: 221-9428
Product Specifications
Core Height: 24.4094
Core Thickness: 0.6299
Core Width: 16.2598
Inlet Diameter: 1.1875
Outlet Diameter: 1.2500
Transmission Oil Cooler Included: NO
UPC: 042511233294
Part Description: Fiat Engine Coolant Radiator
More Info
$91.85
TYC® Engine Coolant Radiator for Fiat
PartNumber: 13513
Product Specifications
Bottom Header: 16 9/16" X 1 5/8"
Core Size: 24 7/16" X 15 9/16" X 1"
Inlet Size: 1 1/2"
Manufactured Material: Plastic/Aluminum
OE Part Number: 68202037AA
Outlet Size: 1 1/2"
Rows: 1
Top Header: 16 9/16" X 1 5/8"
UPC: 762405258966
Part Description: Fiat Engine Coolant Radiator
More Info
$124.21
TYC® Engine Coolant Radiator for Fiat
PartNumber: 13245
Product Specifications
Bottom Header: 16 1/8 X 1 1/2
Core Size: 25" X 15 3/8" X 3/4"
Inlet Size: 1 3/16"
Manufactured Material: Plastic/Aluminum
OE Part Number: 55111352AA
Outlet Size: 1 3/16"
Rows: 1 1/4"
Top Header: 16 1/8 X 1 1/2
UPC: 762405258409
Part Description: Fiat Engine Coolant Radiator
More Info
$84.47
CSF® Engine Coolant Radiator for Fiat
PartNumber: 3530
Product Specifications
Bottom Hose Fitting (in): 1 1/4 Right
Box Height (in): 6 4/16
Box Length (in): 31 1/4
Box Weight (lbs): 7
Box Width (in): 20
Core Length: 24 7/16
Core Material: Aluminum
Core Thickness: 5/8
Core Width: 15
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 15 1/2
Inlet Width (in): 1 1/16
No. Of Rows: 1
OE Part Number: 13245, 8013245, CU13245, 55111352 AA
Outlet Length(in): 15 1/2
Outlet Width: 1 1/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe.
Top Hose Fitting (in): 1 3/16 Left
UPC: 710353035306
Part Description: Fiat Engine Coolant Radiator
More Info
$68.97
Denso® Engine Coolant Radiator for Fiat
PartNumber: 221-9490
Product Specifications
Core Height: 23.9370
Core Thickness: 0.9843
Core Width: 15.9291
Inlet Diameter: 1.5000
Outlet Diameter: 1.5000
Transmission Oil Cooler Included: NO
UPC: 042511233614
Part Description: Fiat Engine Coolant Radiator
More Info
Spectra Premium® Complete Radiator for Fiat
PartNumber: CU13535
Product Specifications
Cap Included: No
Core Charge Applicable: No
Depth: 0.625
Fan Included: No
Height: 15.0625
Installation Hardware Included: 1 x installation sheet, 4 x rubber mounts
Integrated Engine Oil Cooler: No
Integrated Transmission Oil Cooler: No
Internet Product Code (IPC): 77241275DDE
Item Grade: OEM Standard
Item has MSDS (SDS): N
MFG Brand Name: Spectra Premium
MFG Model # (Series): CU13535
MFG Name: Spectra Premium Industries
Package Contents: 1 Radiator 1 Installation Kit
Radiator Core Material: Aluminum
Radiator Inlet Diameter: 1.5
Radiator Outlet Diameter: 38.5
Radiator Style: Crossflow
Radiator Tank Material: Plastic
Supplier Company Name: Spectra Premium Industries
UPC: 671607786699
Width: 24.4375
Part Description: Fiat Complete Radiator
More Info
Spectra Premium® Engine Coolant Radiator for Fiat
PartNumber: CU13513
Product Specifications
Core Material: Aluminum
Height: 24-7/16"
Inlet: 1-1/2"
Inlet Header: 16-5/8" x 1-3/4"
Outlet: 1-1/2"
Outlet Header: 16-5/8" x 1-3/4"
Row: 1
Tank Material: Plastic
Thickness: 1-1/16"
UPC: 671607785746
Width: 15-9/16"
Part Description: Fiat Engine Coolant Radiator
More Info
