GMC K2500 Brake Drum
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Brake Drums & Brake Shoes
- Department
- Series
- Brands
- Prices
$110.61Product Specifications- UPC: 805890045755
- Part Description: GMC K2500 Premium Rear Brake Drum

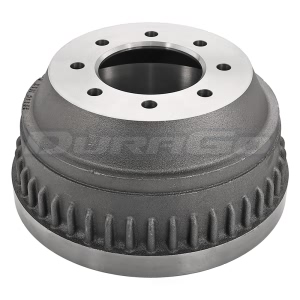

DuraGo® Rear Brake Drum for GMC K2500
PartNumber: BD8945$117.98Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 165.1mm (6.5")
- Bolt Hole Diameter: 16mm (0.63")
- Bolt Hole Quantity: 8
- Brake Surface Width: 80.6mm (3.17")
- Center Hole Diameter: 117.7mm (4.63")
- Construction: Full Cast
- Drum Type: Floating
- Height: 165.4mm (6.51")
- Maximum Diameter: 332.49mm (13.09")
- Nominal Diameter: 330mm (12.99")
- Outside Diameter: 393.3mm (15.48")
- Type: Finned Cooling Fins
- UPC: 756632100914
- Part Description: GMC K2500 Rear Brake Drum

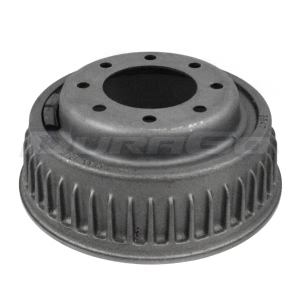

DuraGo® Rear Brake Drum for GMC K2500
PartNumber: BD8851$107.32Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 165.1mm (6.5")
- Bolt Hole Diameter: 15.6mm (0.61")
- Bolt Hole Quantity: 8
- Brake Surface Width: 91.3mm (3.59")
- Center Hole Diameter: 116.9mm (4.60")
- Construction: Full Cast
- Drum Type: Behind the Hub
- Height: 142mm (5.59")
- Maximum Diameter: 332.49mm (13.09")
- Nominal Diameter: 329mm (12.95")
- Outside Diameter: 389mm (15.31")
- Type: Finned Cooling Fins
- UPC: 756632100617
- Part Description: GMC K2500 Rear Brake Drum
DuraGo® Rear Brake Drum for GMC K2500
PartNumber: BD8970$89.68Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 139.7mm (5.5")
- Bolt Hole Diameter: 15.8mm (0.62")
- Bolt Hole Quantity: 6
- Brake Surface Width: 81.7mm (3.22")
- Center Hole Diameter: 78.6mm (3.09")
- Construction: Full Cast
- Drum Type: Floating
- Height: 135mm (5.31")
- Maximum Diameter: 285.5mm (11.24")
- Nominal Diameter: 283.4mm (11.16")
- Outside Diameter: 340mm (13.39")
- Type: Finned Cooling Fins
- UPC: 756632105650
- Part Description: GMC K2500 Rear Brake Drum
DuraGo® Rear Brake Drum for GMC K2500
PartNumber: BD8847Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 165.1mm (6.5")
- Bolt Hole Diameter: 16mm (0.63")
- Bolt Hole Quantity: 8
- Brake Surface Width: 81.8mm (3.22")
- Center Hole Diameter: 116.9mm (4.60")
- Construction: Composite
- Drum Type: Floating
- Height: 135.5mm (5.33")
- Maximum Diameter: 284.73mm (11.21")
- Nominal Diameter: 283.3mm (11.15")
- Outside Diameter: 348mm (13.70")
- Type: Finned Cooling Fins
- UPC: 756632105575
- Part Description: GMC K2500 Rear Brake Drum
DuraGo® Brake Drum for GMC K2500
PartNumber: BD8944Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 165.1mm (6.5")
- Bolt Hole Diameter: 16mm (0.63")
- Bolt Hole Quantity: 8
- Brake Surface Width: 80.6mm (3.17")
- Center Hole Diameter: 117.5mm (4.63")
- Construction: Full Cast
- Drum Type: Floating
- Height: 163.6mm (6.44")
- Maximum Diameter: 285.5mm (11.24")
- Nominal Diameter: 283.2mm (11.15")
- Outside Diameter: 337.5mm (13.29")
- Type: Finned Cooling Fins
- UPC: 756632105636
- Part Description: GMC K2500 Brake Drum
Product Specifications- Other Names: Brake Drum, Drum
- Item Dimensions: 15.8 x 15.0 x 5.8 inches
- Item Weight: 27.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished) (& Honed)
Product Specifications- Other Names: Drum
- Item Dimensions: 19.2 x 18.2 x 8.5 inches
- Item Weight: 59.30 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished)
- Product Specifications
- Item Dimensions: 17.3 x 16.5 x 8.1 inches
- Item Weight: 52.60 Pounds
- Replaced by: 15003097
- Part Description: GMC K2500 Drum, Rear Brake(Drilled)
OEM (Genuine) GMC K2500 Drum, Rear Brake
PartNumber: 15003097Product Specifications- Other Names: Brake Drum, Drum
- Item Dimensions: 16.8 x 16.2 x 8.0 inches
- Item Weight: 51.70 Pounds
- Fitment Type: Direct Replacement
- Replaces: 14050302, 15960224, 15958644
- Part Description: GMC K2500 Drum, Rear Brake
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 16.8 x 16.7 x 7.9 inches
- Item Weight: 46.40 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 17.9 x 15.5 x 17.2 inches
- Item Weight: 61.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 15181111
- Part Description: GMC K2500 Drum, Rear Brake(Finished)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 15.3 x 14.6 x 8.1 inches
- Item Weight: 40.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished) (& Honed)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 16.7 x 16.0 x 4.7 inches
- Item Weight: 29.20 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 16.9 x 16.3 x 4.7 inches
- Item Weight: 27.10 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum, Rear Brake(Finished)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 13.2 x 12.0 x 4.2 inches
- Item Weight: 21.50 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum Asm-Rear Brake (Drilled)
- Product Specifications
- Other Names: Drum
- Item Dimensions: 12.8 x 4.8 x 13.7 inches
- Item Weight: 20.60 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC K2500 Drum Asm, Rear Brake
OEM (Genuine) GMC K2500 Drum, Rear Brake
PartNumber: 3984855Product Specifications- Other Names: Brake Drum
- Item Dimensions: 18.1 x 14.2 x 4.9 inches
- Item Weight: 22.40 Pounds
- Part Description: GMC K2500 Drum, Rear Brake
OEM (Genuine) GMC K2500 Brake Drum
PartNumber: 14070351Product Specifications- Other Names: Brake Drum
- Item Dimensions: 15.8 x 14.7 x 5.8 inches
- Item Weight: 28.40 Pounds
- Part Description: GMC K2500 Brake Drum
About GMC K2500 Brake Drum
The GMC K2500's look was somewhat altered in 1990. The GMC K2500 is well characterized by its swiftness. During the development of the brand, many popular parts have been built, like the brake drum. The GMC K2500 brake drum is important to the vehicle since it allows the car to slow down and come to a halt. Some vehicles have the drum brake connected to the rear wheels and axles. The drum part is made from a special kind of iron that is heat-conductive and resistant to wearing out.
The GMC K2500 offers reliability and practicality to customers. But there will be several problems after the brake drum has been used for years. The removal process for a brake drum is as follows. First, remove the hubcap (if applicable). Next, remove the lug nuts and wheel from the vehicle. Then remove the brake drum retaining screws. Finally, pull the brake drum off gently to not damage any components around. The main components of a drum brake system include the backing plate, brake drum, brake shoes, wheel cylinder, springs, and guide pins. Get helpful GMC K2500 parts at a low price with just a few clicks online. Our website has premium GMC K2500 parts and devices.
