Genuine Toyota 77024-06020
Suction Valve

Customer Questions & Expert Answers (1)

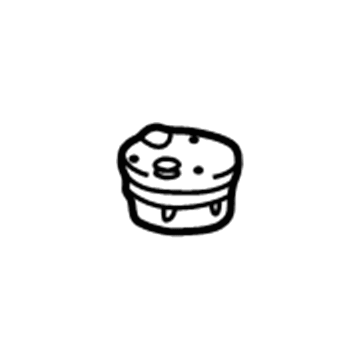

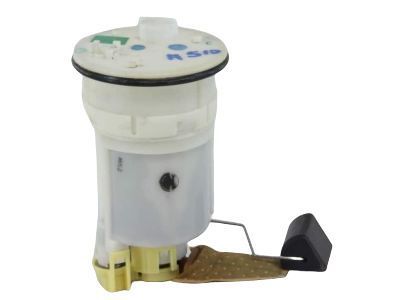

Toyota 77024-06020 Suction Valve
Toyota 77024-06020 Suction Valve
Toyota 77024-06020 Suction Valve
  • Part Description
    Fuel Plate Sub-Assembly
  • Replaces
    77024-33030
  • Brand
    Toyota
Select vehicle to make sure this part fits
Year
Make
Model
Or
$39.94 MSRP: $57.54
You Save: $17.60 (31%)
Ships in 1-3 Business Days
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 77024-06020 Suction Valve is Ref No. 29 in the diagram below

    2002 Lexus ES300 Filters Suction Valve Diagram for 7702406020
    The diagram listed above is for your reference. View diagram and OE catalog for your vehicle

    Related Parts for 77024-06020

  • Product Specifications

    BrandGenuine Toyota
    Manufacturer Part Number77024-06020
    Part DescriptionFuel Plate Sub-Assembly
    Other DescriptionSuction Valve
    Other NamesFilter Bracket, Lower Plate, Plate, Suction Valve
    Item Dimensions12.1 x 8.8 x 8.2 inches
    Item Weight2.40 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces77024-33030
    ManufacturerToyota
    SKU77024-06020
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim & Engine Important vehicle option details
    2001-2012 Toyota AvalonLimited, XL, XLS|6 Cyl 3.0L, 6 Cyl 3.5L1MZFE, 2GRFE; GSX30L-AEAGKA, GSX30L-AEANKA, GSX30L-AEAPKA, GSX30L-AETGKA, GSX30L-AETNKA, GSX30L-AETPKA, MCX20L-AEPGKA, MCX20L-AEPGKK, MCX20L-AEPNKA, MCX20L-AEPNKK, MCX20L-AESGKA, MCX20L-AESNKA
    2007-2011, 2002-2004 Toyota CamryLE, SE, XLE|4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L1MZFE, 2ARFE, 2AZFE, 2GRFE; ACV40L-AEAGKA, 2GRFE; ACV40L-CEAGKA, 3MZFE; ACV30L-AEAGKA, 3MZFE; ACV30L-CEAGKA, ACV30L-AEANKA, ACV30L-AEASKA, ACV30L-AEMNKA, ACV30L-AEMSKA, ACV30L-AEPGKA, ACV30L-AEPNKA, ACV30L-AEPSKA, ACV30L-CEANKA, ACV30L-CEASKA, ACV30L-CEPGKA, ACV30L-CEPNKA, ACV30L-CEPSKA, ACV40L-AEANKA, ACV40L-AEMNKA, ACV40L-CEANKA, ACV40L-CEASKA, ACV40L-CEMNKA, ACV40L-CEMSKA, ASV40L-AETGKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, GSV40L-AETGKA, GSV40L-AETNKA, GSV40L-CETGKA, GSV40L-CETNKA, GSV40L-CETSKA, MCV30L-AEAGKA, MCV30L-AEANKA, MCV30L-AEASKA, MCV30L-AEPGKA, MCV30L-AEPNKA, MCV30L-AEPSKA, MCV30L-CEAGKA, MCV30L-CEANKA, MCV30L-CEASKA, MCV30L-CEPGKA, MCV30L-CEPNKA, MCV30L-CEPSKA, MCV31L-AEASKA, MCV31L-CEASKA
    2006-2008 Toyota SolaraSE, SLE|4 Cyl 2.4L, 6 Cyl 3.3L2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA, MCV31L-GKAGKA, MCV31L-GKANKA

  • Customer Questions & Expert Answers

    Q:
    Does this include the fuel pump, the fuel sender and the filter?
    By Customer with vehicle: 2002 Toyota Camry
    A:
    Yes it does
    By Omar
    Toyota Specialist
    2/12/2024
