Replacement Parts for Volkswagen Passat A/C Compressor
Select your vehicle for the best product fit
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Make
Select Model
Select Year
or

Volkswagen Passat A/C Compressor

< Back to View All
A/C & Heating
  • Department
  • Condition
  • Brands
  • Prices

36 Products found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by

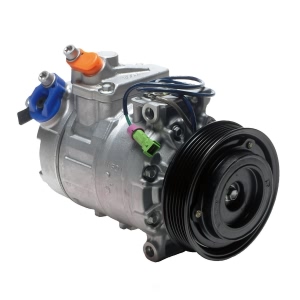

  • Denso New Compressor W/ Clutch for Volkswagen Passat - 471-1497

    Denso® New Compressor W/ Clutch for Volkswagen Passat

    PartNumber: 471-1497
    Product Specifications
    • Clutch Maximum Diameter: 110.0 mm
    • Compressor Mount Hole Quantity: 3
    • Mounting Type: Bolt Tangent
    • OE Part Number: 1K0820859D, 1K0820859M, 1K0820859S, 1K0820808A, 1K0820859F, 1K0820808D, 1K0820859Q, 1K0820803N, 1K0820859E
    • Pulley Belt Type: Serpentine
    • Refrigerant Type: R134A
    • UPC: 042511177604
    • Part Description: Volkswagen Passat New Compressor W/ Clutch
    More Info
    $355.19
  • Delphi A C Compressor With Clutch for Volkswagen Passat - CS20089

    Delphi® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: CS20089
    Product Specifications
    • Belt Type: Serpentine
    • Clutch Included: Yes
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12V
    • Connector Terminal Quantity: 2
    • Connector Type: Female, 2 Blade
    • Mounting Type: Bolt-tangent
    • New or Remanufactured: New
    • Oil in Compressor: Yes
    • Oil Type: PAG
    • Package Contents: O-rings/sealing washers included
    • Pulley Groove Quantity: 6
    • Refrigerant Type: R134A
    • Switch Included: No
    • Switch Service Port: No
    • UPC: 689604203507
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $333.28
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 197567

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 197567
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.375
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXE16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 0.984375
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mount Distance B IN: 2.03125
    • Mount Distance B MM: 51.816
    • Mount Distance MM: 25.146
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter B IN Secondary: 5.000
    • Pulley Diameter B MM Secondary: 127.000
    • Pulley Diameter MM: 111.125
    • Pulley Groove Quantity: 10
    • Pulley Lip Diameter: 4.375
    • Pulley Outside Diameter: 4.375
    • Pulley Ridge Diameter: 4.375
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361622333
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $278.73
  • Denso New Compressor W/ Clutch for Volkswagen Passat - 471-7058

    Denso® New Compressor W/ Clutch for Volkswagen Passat

    PartNumber: 471-7058
    Product Specifications
    • Clutch Maximum Diameter: 127.0 mm
    • Compressor Mount Hole Quantity: 3
    • Mounting Type: Bolt Tangent
    • OE Part Number: 1H0820803D, 1K0820859S, 1K0820808C, 1K0820859G, 1K0820859F, 1K0820803Q, 1K0820808D, 1K0820808E, 1K0820803R, 1K0820803K, 1K0820859R, 1K0820803T
    • Pulley Belt Type: Serpentine
    • Refrigerant Type: R134A
    • UPC: 042511194045
    • Part Description: Volkswagen Passat New Compressor W/ Clutch
    More Info
    $390.50
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 97379

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 97379
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SEU16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.500
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mount Distance MM: 38.100
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24670] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.550
    • Pulley Groove Quantity: 7
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Lead Wire
    • UPC: 096361973794
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $274.13
  • Spectra Premium A/C Compressor for Volkswagen Passat - 0610226

    Spectra Premium® A/C Compressor for Volkswagen Passat

    PartNumber: 0610226
    Product Specifications
    • UPC: 671607338881
    • Part Description: Volkswagen Passat A/C Compressor
    $271.35
  • Denso A/C Compressor with Clutch for Volkswagen Passat - 471-1260

    Denso® A/C Compressor with Clutch for Volkswagen Passat

    PartNumber: 471-1260
    Product Specifications
    • Clutch Maximum Diameter: 120.0 mm
    • Compressor Mount Hole Quantity: 3
    • Mounting Type: Bolt Tangent
    • OE Part Number: 4B0260805B, 4D0260805B, 8D0260805D, 8D0260805MX, 8D0260805E, 8D0260805F, 8D0260805, 8D0260805A, 4B3260805, 4B3260805B
    • Pulley Belt Type: Serpentine
    • Refrigerant Type: R134A
    • UPC: 042511177352
    • Part Description: Volkswagen Passat A/C Compressor with Clutch
    More Info
    $316.34
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 167646

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 167646
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: NR
    • Coil Type: Coil Less
    • Coil Voltage: NR
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXE16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.234375
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mount Distance MM: 31.242
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.550
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361622401
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $267.45
  • Denso A/C Compressor with Clutch for Volkswagen Passat - 471-1374

    Denso® A/C Compressor with Clutch for Volkswagen Passat

    PartNumber: 471-1374
    Product Specifications
    • Clutch Maximum Diameter: 120.0 mm
    • Compressor Mount Hole Quantity: 3
    • Mounting Type: Bolt Tangent
    • OE Part Number: 8D0260805B, 8D0260805Q, 8D0260805RX, 8D0260805J
    • Pulley Belt Type: Serpentine
    • Refrigerant Type: R134A
    • UPC: 042511177420
    • Part Description: Volkswagen Passat A/C Compressor with Clutch
    More Info
    $321.63
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 67451

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 67451
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Head Type: D213
    • Compressor Type: DCW17D
    • Distance From Clutch To Mounting Flange: 1.953125
    • Mount Distance MM: 49.530
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24608] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24610] / Green O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May require use of OE connector
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 4
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Switch Service Port: w/o Switch Port
    • Terminal Type: Spade
    • UPC: 096361674516
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $199.55
  • Denso A/C Compressor with Clutch for Volkswagen Passat - 471-1373

    Denso® A/C Compressor with Clutch for Volkswagen Passat

    PartNumber: 471-1373
    Product Specifications
    • Clutch Maximum Diameter: 120.0 mm
    • Compressor Mount Hole Quantity: 3
    • Mounting Type: Bolt Tangent
    • OE Part Number: 8D0260805B, 8D0260805RX, 8D0260805K
    • Pulley Belt Type: Serpentine
    • Refrigerant Type: R134A
    • UPC: 042511177413
    • Part Description: Volkswagen Passat A/C Compressor with Clutch
    More Info
    $286.17
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 157506

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 157506
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.328125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXC16
    • Distance From Clutch To Mounting Flange: 1.375
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mounting Hardware: Not Included
    • Mounting Type: 3 Tangent One on Rear Head
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: 24635
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: 24659
    • O-Ring B Quantity: 1
    • O-Ring C Number/Desc: 24683
    • O-Ring C Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.328125
    • Pulley Outside Diameter: 4.328125
    • Pulley Ridge Diameter: 4.328125
    • Refrigerant Type: R134a
    • Terminal Type: Pin
    • UPC: 096361090613
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $236.74
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 77313

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 77313
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SB16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.546875
    • Mount Distance MM: 39.370
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24670] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361773134
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $267.12
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 67646

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 67646
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: NR
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: DCS17E
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.234375
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mount Distance MM: 31.242
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require Use of O.E. Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.525
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suc Prt Typ Note: Smooth
    • Suction Port Type: O-Ring
    • Switch Service Port: w/o Switch Port
    • Terminal Type: Pin
    • UPC: 096361676466
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $178.92
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 158506

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 158506
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.328125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXC16
    • Distance From Clutch To Mounting Flange: 1.375
    • ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
    • Mounting Hardware: Not Included
    • Mounting Type: 3 Tangent One on Rear Head
    • New or Reman: New
    • O-Ring A Number/Desc: 24635
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: 24659
    • O-Ring B Quantity: 1
    • O-Ring C Number/Desc: 24683
    • O-Ring C Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.328125
    • Pulley Outside Diameter: 4.328125
    • Pulley Ridge Diameter: 4.328125
    • Refrigerant Type: R134a
    • Terminal Type: Pin
    • UPC: 096361069480
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $429.94
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 57591

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 57591
    Product Specifications
    • Belt Width IN: 0.750
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 5.125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 24
    • Comp Head Prt Config: Rear-Vert O-Ring
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Head Type: QD/VQ
    • Compressor Type: SD7V16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.40625
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24626] / Green O-Ring
    • O-Ring A Quantity: 2
    • O-Ring B Number/Desc: Not Required
    • O-Ring B Quantity: NR
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 130.048
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 5.125
    • Pulley Outside Diameter: 5.125
    • Pulley Ridge Diameter: 5.125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Bullet
    • UPC: 096361575912
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $131.12
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 97348

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 97348
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SEU16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.234375
    • ECV Harness Connector: Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M
    • Mount Distance MM: 31.242
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.550
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Switch Included: Heat Sensor
    • Terminal Type: Pin
    • UPC: 096361973480
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $269.17
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 57592

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 57592
    Product Specifications
    • Belt Width IN: 0.9375
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Comp Head Prt Config: Rear-Vert-Pad
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Head Type: VQR
    • Compressor Type: SD7V16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.296875
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24626] / Green O-Ring
    • O-Ring A Quantity: 2
    • O-Ring B Number/Desc: Not Required
    • O-Ring B Quantity: NR
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 7
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Bullet
    • UPC: 096361575929
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $247.97
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98591

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98591
    Product Specifications
    • Belt Width IN: 0.750
    • Belt Width MM: 19.050
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.625
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Comp Head Prt Config: Rear-Vert O-Ring
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Head Type: QD/VQ
    • Compressor Type: SD7V16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.40625
    • Mount Distance MM: 35.560
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24626] / Green O-Ring
    • O-Ring A Quantity: 2
    • O-Ring B Number/Desc: Not Required
    • O-Ring B Quantity: NR
    • O-Ring C Number/Desc: Not Required
    • O-Ring C Quantity: NR
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 117.475
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.625
    • Pulley Outside Diameter: 4.625
    • Pulley Ridge Diameter: 4.625
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361985919
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $318.98
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98379

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98379
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.71875
    • Coil Clock Position: Lead Wire
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SEU17C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.46875
    • ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
    • Mount Distance MM: 37.000
    • Mounting Hardware: Not Included
    • Mounting Type: 3 Tangent One on Rear Head
    • New or Reman: New
    • O-Ring A Number/Desc: [24635] / Green Round O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: 24659
    • O-Ring B Quantity: 1
    • O-Ring C Number/Desc: 24683
    • O-Ring C Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 119.888
    • Pulley Groove Quantity: 7
    • Pulley Lip Diameter: 4.71875
    • Pulley Outside Diameter: 4.71875
    • Pulley Ridge Diameter: 4.71875
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361983793
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $315.26
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 168646

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 168646
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: NR
    • Coil Type: Coil Less
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXE16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.234375
    • ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
    • Mount Distance MM: 31.242
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.525
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361617346
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $313.96
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 198567

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 198567
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.375
    • Coil Clock Position: Wire Lead
    • Coil Type: Coil Less
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: PXE16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 0.984375
    • ECV Harness Connector: SE35F, 26901 Female / / SE35M, 26887 Male
    • Mount Distance B IN: 2.03125
    • Mount Distance B MM: 51.816
    • Mount Distance MM: 25.146
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter B IN Secondary: 5.000
    • Pulley Diameter B MM Secondary: 127.000
    • Pulley Diameter MM: 111.125
    • Pulley Groove Quantity: 10
    • Pulley Lip Diameter: 4.375
    • Pulley Outside Diameter: 4.375
    • Pulley Ridge Diameter: 4.375
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361617391
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $319.35
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98592

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98592
    Product Specifications
    • Belt Width IN: 0.9375
    • Belt Width MM: 23.8125
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.625
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Comp Head Prt Config: Rear-Vert-Pad
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Head Type: VQR
    • Compressor Type: SD7V16
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.296875
    • Mount Distance MM: 33.020
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24626] / Green O-Ring
    • O-Ring A Quantity: 2
    • O-Ring B Number/Desc: Not Required
    • O-Ring B Quantity: NR
    • O-Ring C Number/Desc: Not Required
    • O-Ring C Quantity: NR
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 117.475
    • Pulley Groove Quantity: 7
    • Pulley Lip Diameter: 4.625
    • Pulley Outside Diameter: 4.625
    • Pulley Ridge Diameter: 4.625
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361985926
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $323.87
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98326

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98326
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SB16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.703125
    • Mount Distance MM: 43.180
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24670] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 4
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361983267
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $318.57
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 57590

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 57590
    Product Specifications
    • Belt Width IN: 0.375
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 5.125
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 24
    • Comp Head Prt Config: Rear-Horiz-O-Ring
    • Compatible Refrigerant Oil Type: PAG 100
    • Compressor Head Type: KC
    • Compressor Type: SD709
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 0.65625
    • Mount Distance B IN: 1.250
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24608] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24610] / Green O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 130.048
    • Pulley Groove Quantity: 2
    • Pulley Lip Diameter: 5.125
    • Pulley Outside Diameter: 5.125
    • Pulley Ridge Diameter: 5.125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Bullet
    • UPC: 096361575905
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $185.99
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98348

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98348
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.3125
    • Coil Clock Position: NR
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SEU16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.234375
    • ECV Harness Connector: Compressor SE05F, Vehicle SE22M
    • Mount Distance MM: 31.242
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24659] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 109.550
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.3125
    • Pulley Outside Diameter: 4.3125
    • Pulley Ridge Diameter: 4.3125
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Switch Included: Heat Sensor
    • Terminal Type: Pin
    • UPC: 096361983489
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $311.44
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 78313

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 78313
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SB16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.546875
    • Mount Distance MM: 39.370
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24670] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 6
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361783133
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $289.21
  • Four Seasons Remanufactured A C Compressor With Clutch for Volkswagen Passat - 97326

    Four Seasons® Remanufactured A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 97326
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 4.750
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG 46
    • Compressor Type: 7SB16C
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 1.703125
    • Mount Distance MM: 43.180
    • Mounting Hardware: Not Included
    • Mounting Type: Tangent Mount
    • New or Reman: Remanufactured
    • O-Ring A Number/Desc: [24670] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24635] / Green Round O-Ring
    • O-Ring B Quantity: 1
    • Printed Foot Note: May Require use of OE Manifold
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 120.650
    • Pulley Groove Quantity: 4
    • Pulley Lip Diameter: 4.750
    • Pulley Outside Diameter: 4.750
    • Pulley Ridge Diameter: 4.750
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Pin
    • UPC: 096361973268
    • Part Description: Volkswagen Passat Remanufactured A C Compressor With Clutch
    More Info
    $211.49
  • Four Seasons A C Compressor With Clutch for Volkswagen Passat - 98590

    Four Seasons® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: 98590
    Product Specifications
    • Clutch Included: Yes
    • Clutch Maximum Diameter: 5.250
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Comp Head Prt Config: Rear-Horiz-O-Ring
    • Compatible Refrigerant Oil Type: PAG 100
    • Compressor Head Type: KC
    • Compressor Type: SD709
    • Discharge Port Type: O-Ring
    • Distance From Clutch To Mounting Flange: 0.65625
    • Mount Distance B IN: 1.250
    • Mount Distance B MM: 31.750
    • Mount Distance MM: 16.510
    • Mounting Hardware: Not Included
    • Mounting Type: Ear Mount
    • New or Reman: New
    • O-Ring A Number/Desc: [24608] / Green O-Ring
    • O-Ring A Quantity: 1
    • O-Ring B Number/Desc: [24610] / Green O-Ring
    • O-Ring B Quantity: 1
    • Pulley Belt Type: Serpentine
    • Pulley Diameter MM: 133.350
    • Pulley Groove Quantity: 2
    • Pulley Lip Diameter: 5.250
    • Pulley Outside Diameter: 5.250
    • Pulley Ridge Diameter: 5.250
    • Refrigerant Type: R134a
    • Suction Port Type: O-Ring
    • Terminal Type: Spade
    • UPC: 096361985902
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
    $196.27
  • Delphi A C Compressor With Clutch for Volkswagen Passat - CS20083

    Delphi® A C Compressor With Clutch for Volkswagen Passat

    PartNumber: CS20083
    Product Specifications
    • Clutch Included: Yes
    • Coil Clock Position: Wire Lead
    • Coil Voltage: 12
    • Compatible Refrigerant Oil Type: PAG
    • Connector Gender: Female
    • Mounting Type: Bolt-tangent
    • OE Type/Exact Fit: OE Type/ Exact Fit
    • Oil in Compressor: Yes
    • Package Contents: A/C Compressor, O-rings/Sealing Washers, Instruction Sheet
    • Pulley Belt Type: Serpentine
    • Pulley Groove Quantity: 6
    • Refrigerant Type: R134A
    • Switch Included: No
    • Switch Service Port: No
    • Terminal Quantity: 2
    • Terminal Type: Blade
    • UPC: 689604203446
    • Part Description: Volkswagen Passat A C Compressor With Clutch
    More Info
1-30 of 36 Results
< Previous
12
Next >

Browse Volkswagen Passat A/C Compressor by Years

2019 2018 2017 2016 2015 2014 2013 2012 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001 2000 1999 1998 1997 1996 1995 1994 1993 1992 1991 1990
